2023-Up Touring CVO Drop 1" Triple Trees Kit
Color
- Free shipping on this part
- Returns and exchanges: see our policy
- Questions? Call 715-235-3659 or chat with us on the site.
Description

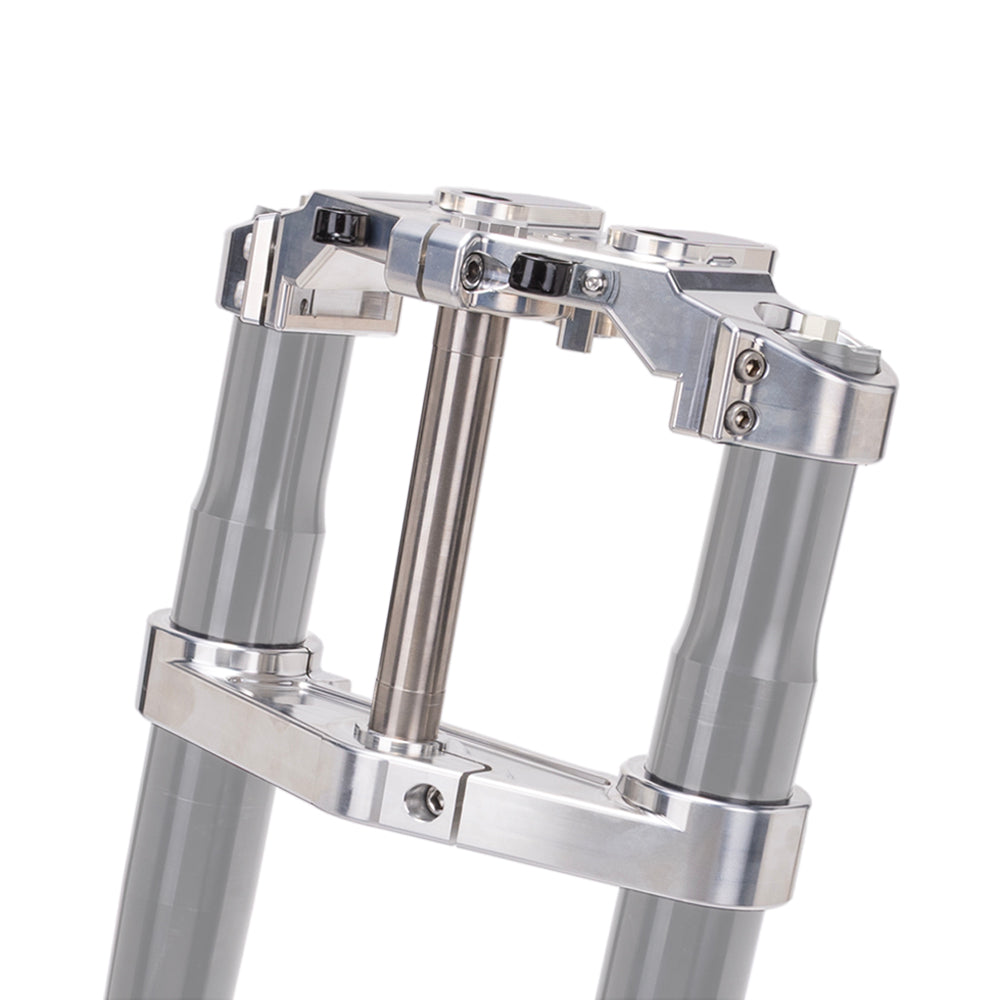

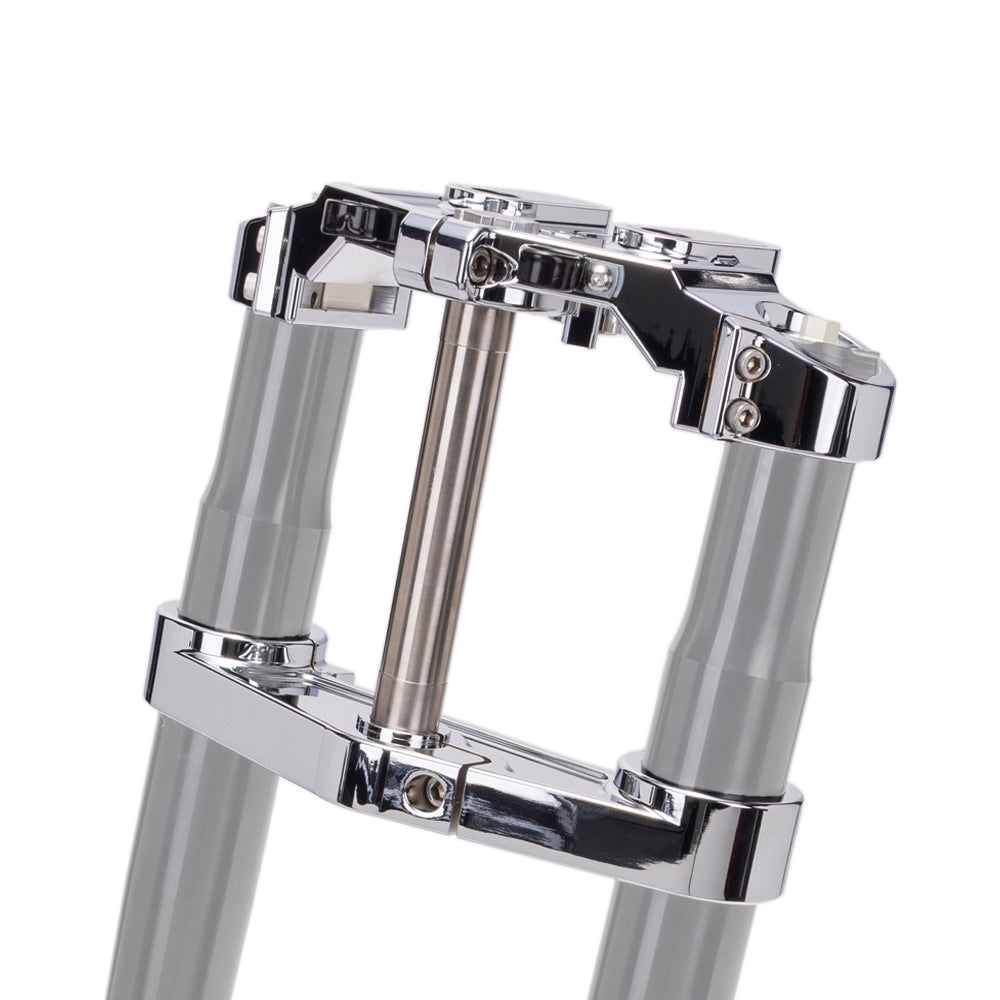

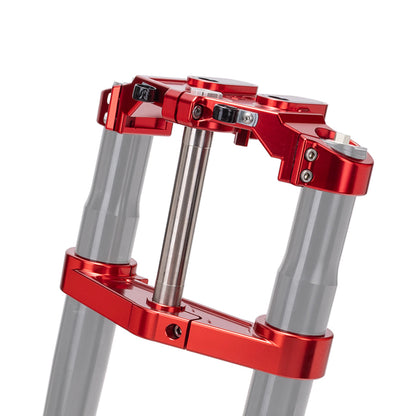

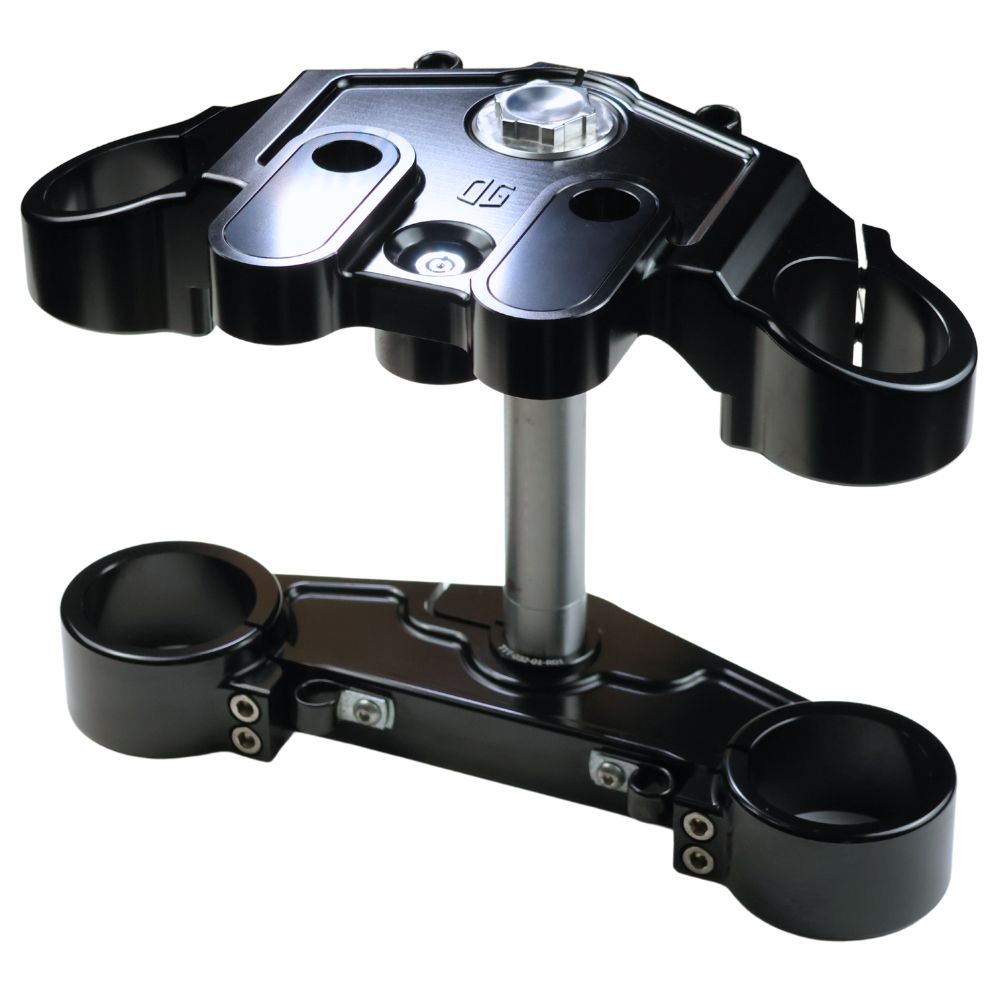

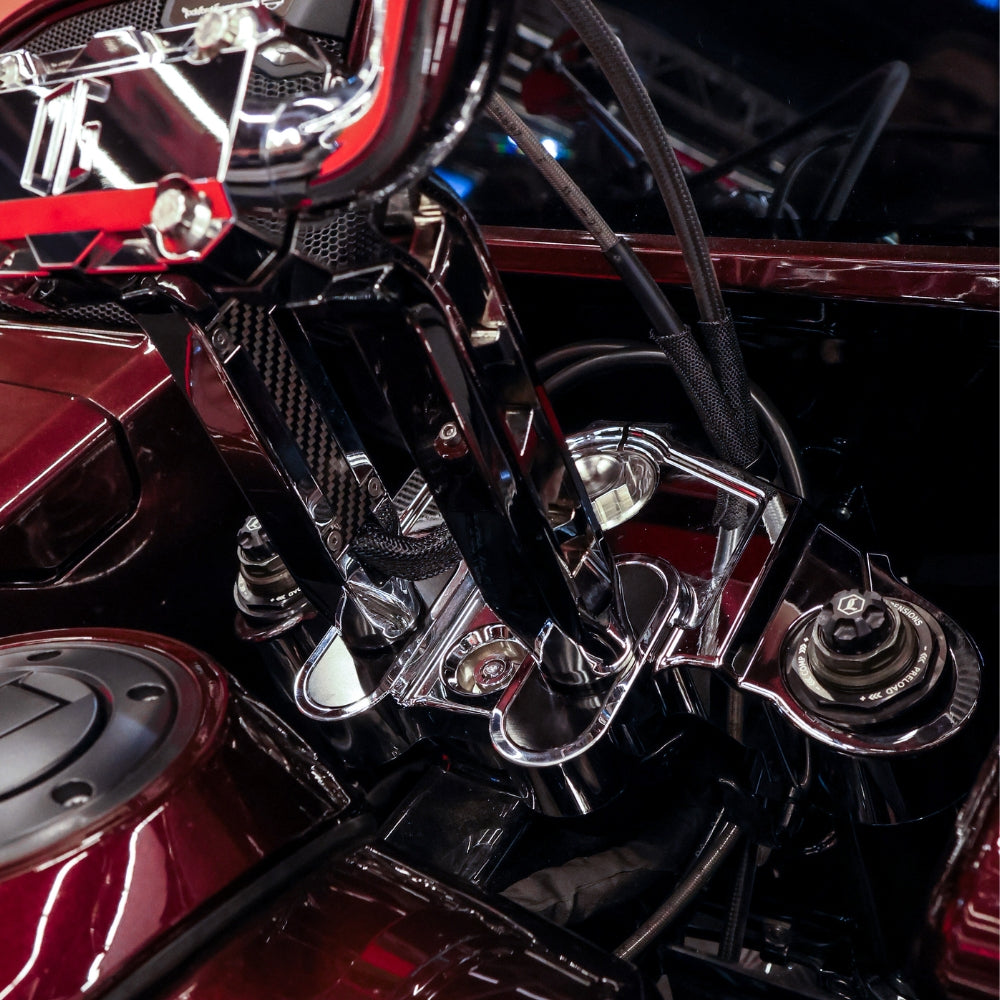

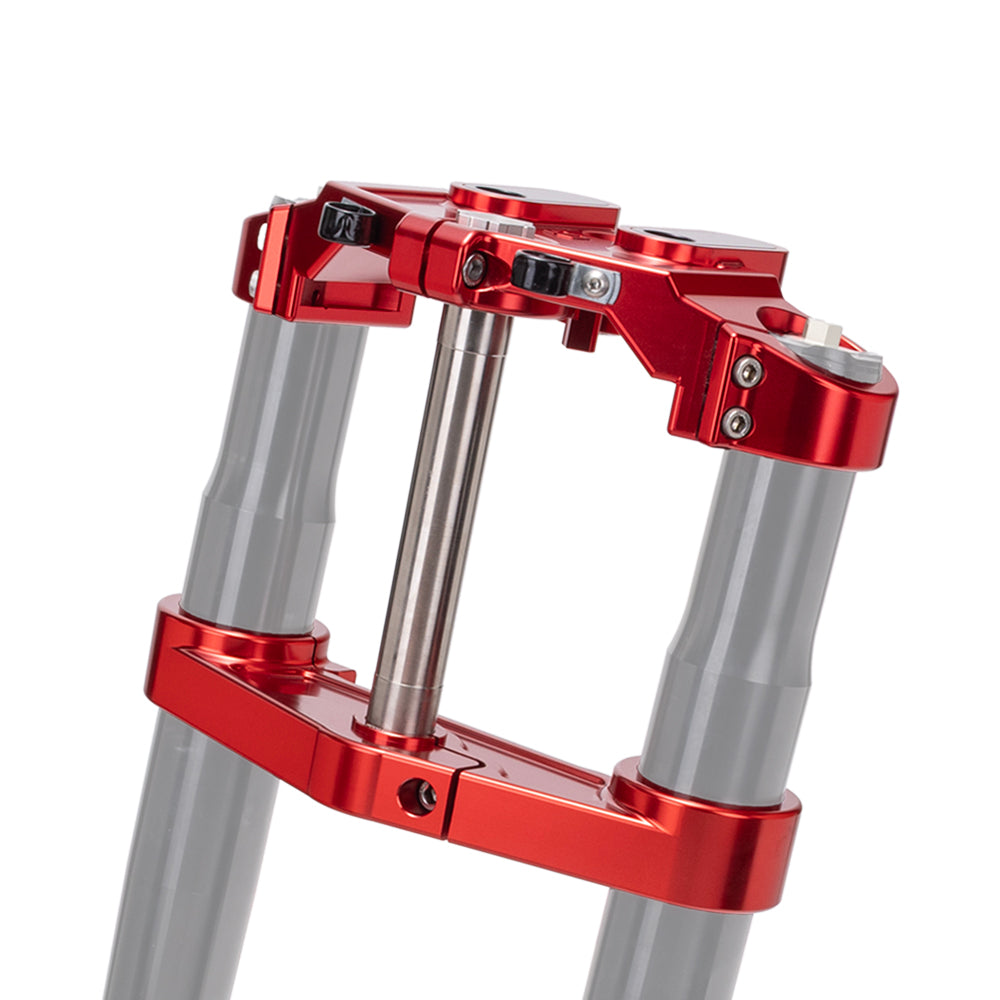

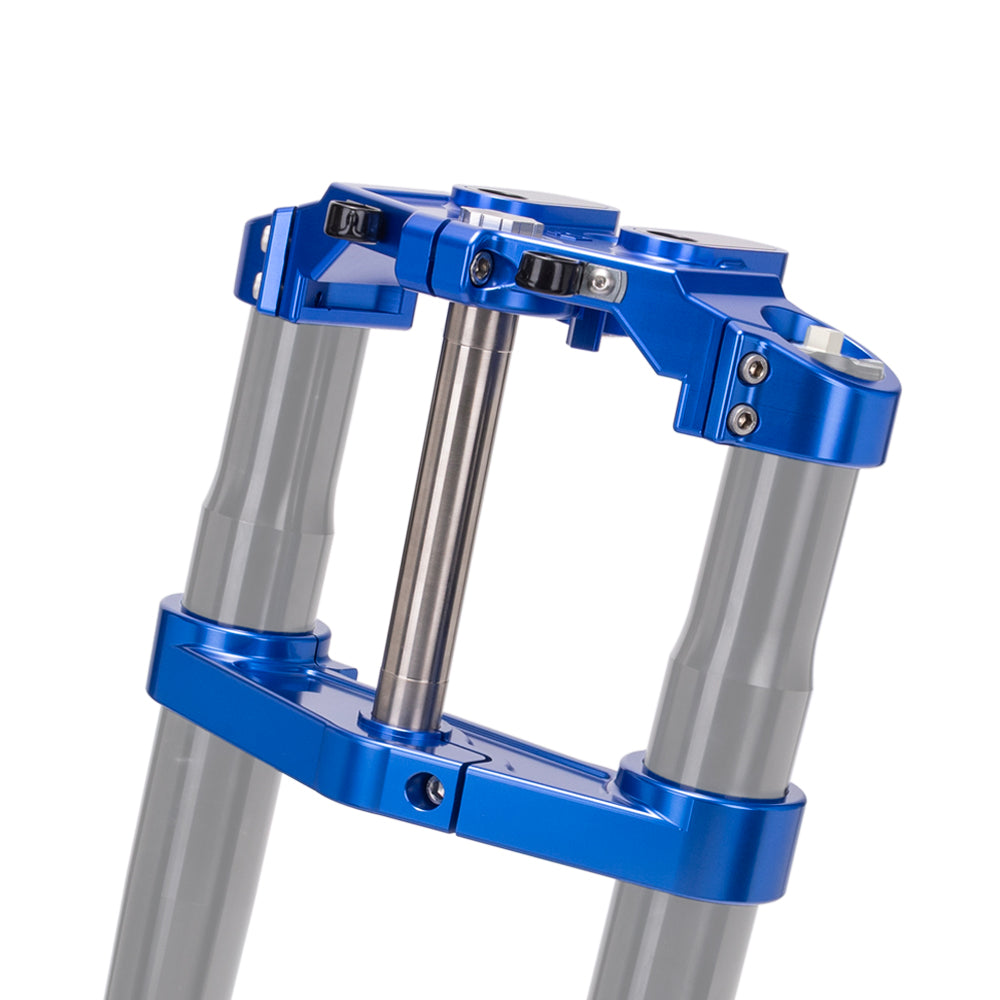

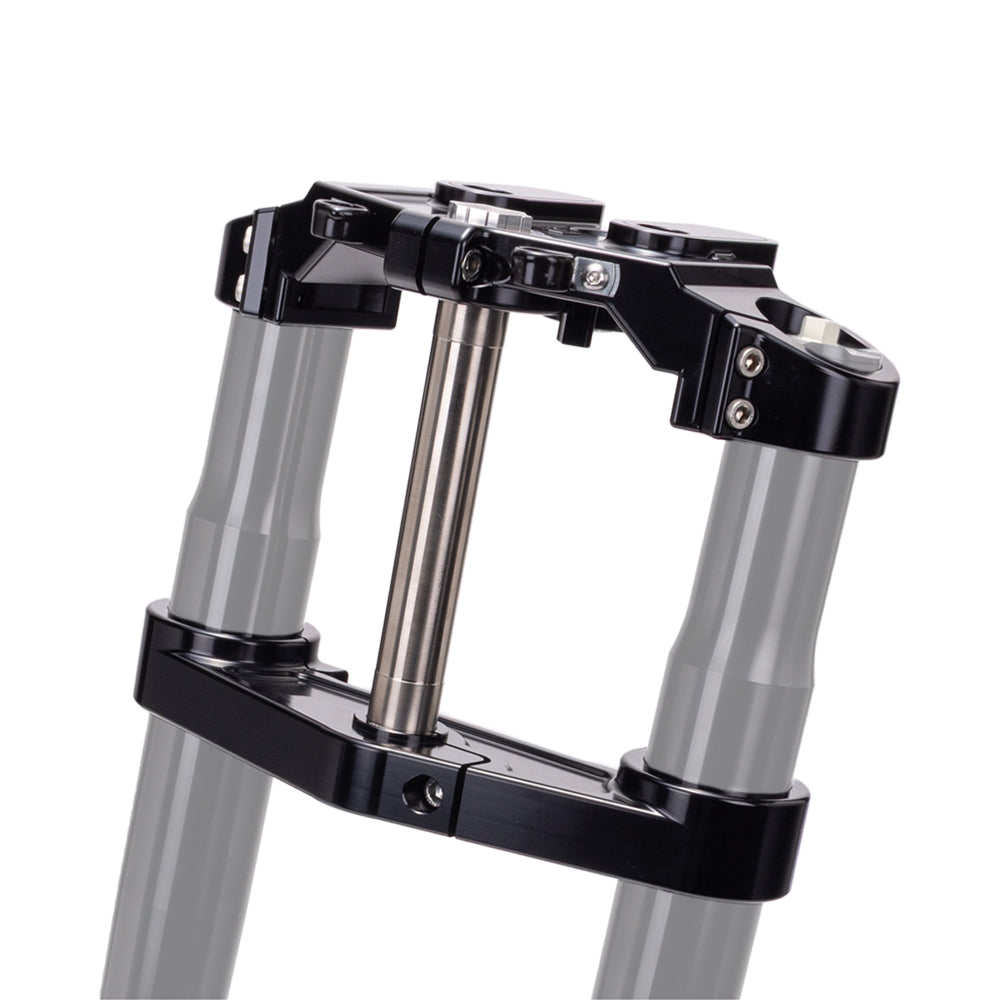

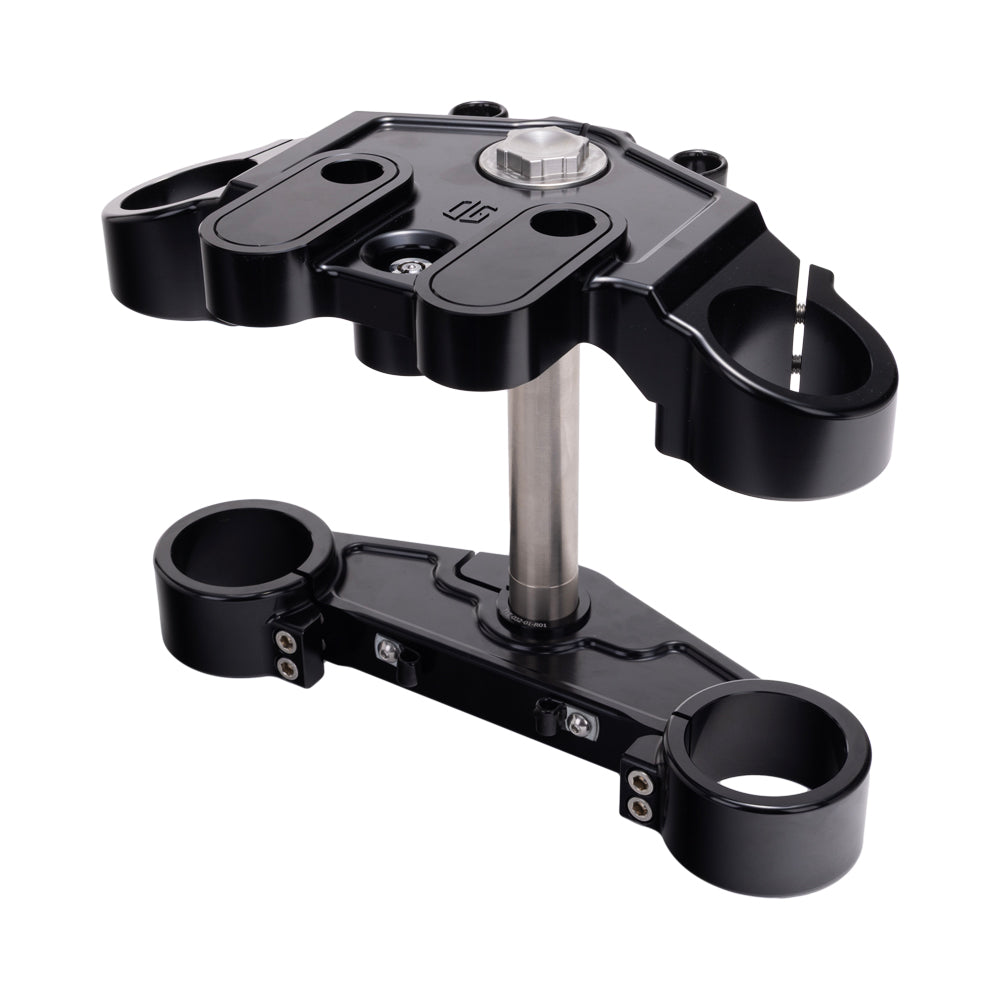

OG 2023-Up Touring CVO Drop 1" Triple Tree Kit
OG 2023-Up Touring CVO Drop 1" Triple Tree kit for Harley-Davidson Touring models is the ultimate performance bagger front-end upgrade. It is engineered to maximize performance & rigidity featuring taller fork tube clamping sections and a thicker cross-section over the stock trees.
This Triple Trees kit will also allow you to lower your fork up to 1", which will raise your bike height and provide better ground clearance. This is a great alternative for those looking for a more aggressive stance. Works well with 14-inch shocks.
It will allow you to set your Risers exactly where you want them with three mounting location options; Stock, +1'' & +2'' pullback towards the rider (+1” Adapters) sold separately).
Also features pocketed key lock, wire & brake line(s) management clamps for that clean install and factory look.
*Risers bushings are required for this kit and sold separately.
Features
- 1" Drop feature
- Precision CNC machined 6061 T6 aluminum
- Stem axle & nut machined from 4140 Chromoly Steel for superior strength.
- Designed to match the OEM rake angle and triple tree offset ensuring a straightforward installation and maximizing performance
- Anodized & Chrome finishes available
- Machined OG logo
- Uses standard FL bushings
- Stainless steel hardware included
- Includes two Wire management clamps (one on both sides)
-
Includes two brake line(s) management clamps
- Supplied with a lock and key to keep the fork lock feature
- Innovative reversible Risers mounting Block allows three riser positions; stock, +1'' or +2” pullback towards the rider. +1” Adapters are sold separately
Fitment
- Fits all 2023 to present CVO & CVO ST models equipped with an inverted front-end
- Fit with Ohlins FGRT 307 Touring CVO Inverted Front Forks
- Does not fit Street Glide models due to fairing mount locations
Installation
Fitment
Fits Harley-Davidson Touring Models - 2023 to Present
Not sure it fits your bike? Call 715-235-3659 or chat with us on the site and a tech can confirm it with you.
Specifications & Installation
| Brand | Original Garage Moto |
|---|---|
| Part number | Varies by selected option |
| Product type | Triple Trees |
| Color | Black, Aluminium, Chrome, Gold, Red, Blue, Purple, Orange (+3 more) |
Videos
Want it installed right? Book the Nowaskey Speed Shop or call 715-235-3659.
Questions Riders Ask
Will this fit my bike?
Fits Harley-Davidson Touring Models - 2023 to Present.
Save your bike with Shop by Bike and we check it for you. Not sure? Call or chat with us on the site and a tech can confirm it with you.
What's the part number?
Manufacturer part number H-AC-105-BK. Our item number is 102706. Part numbers change with the option you pick.
What do riders buy with this?
Can I install it myself?
Most riders with basic tools and a service manual can. The Specifications & Installation tab lists difficulty, time and guides where we have them. Prefer a pro install? Book a Speed Shop slot and call to check current availability.
Who do I talk to after I buy?
Our techs. Call 715-235-3659 or chat with us on the site and you will reach the people who know these parts.
Still have a question? Call 715-235-3659 or chat with us on the site.
