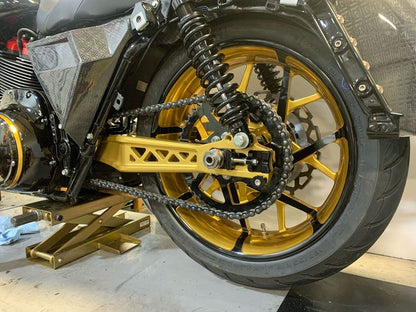

HHI Dominator Swingarm for 2009-2024 Performance Baggers
All New Billet Swingarm fits ALL 2009 - 2024 H-D Touring models.
In the instance that we do not have this swing arm in stock please allow 2 week lead time to get your new swingarm on its way to you. Once the order is placed a member of the Nowaskey team will reach out to you to give you an accurate lead time.
Ships fully assembled with pivot bearings and sleeves installed. A complete kit ready for installation.
The HHI Swingarm reduces weight by over 20% compared to stock swingarm.
The Main Swingarm is a three-piece design utilizing a massive interlocking, hi-strength keying feature. Thermal shrink fit of this feature provides precision alignment, maximum strength and permanent construction.
Assembled with four hi-strength ARP ½” diameter 12 point polished stainless steel large flange bolts.
Swingarm designed to work with shocks ranging in length from 10" to 15".
Positive lock adjustable position axle locator system delivers 2 inches of full axle slot adjustment (2.5x greater than stock).
Keyed axle locator plate eases axle installation.
HHI Exclusive stainless steel inner swingarm axle protector plates allow for maximum axle installation torque.
Protector plates prevent damage to swingarm billet inside faces and promotes positive axle position.
Multi-point shock mount system that adjusts from stock to +1/2 inch ride height.
Fits most shock brands without adding offset spacing and longer bolts.
Extreme strength lightweight Chromoly hollow axle made from 150ksi heat treated medium carbon steel alloy.
Axle precision machined for close tolerance fit and Nickel Plated for long lasting durability.
Includes custom machined Stainless Steel 36mm hex axle nuts.
Stainless steel stock type axle nut retaining clips supplied.
Integral brake mount designed for 2000-up stock caliper and brake line
Specifications
• Product type: Performance swingarm kit • Application: Harley-Davidson FL Touring models • Material: 6061-T6 billet aluminum, Chromoly, stainless steel • Axle type: Hollow Chromoly tubular axle • Axle strength: 150ksi tensile rating • Axle nut: Stainless steel 36mm hex • Axle adjustment range: 2" total travel • Shock compatibility: 10"–15" shock length • Ride height adjustment: Stock to +1/2" • Brake compatibility: 2000-up stock caliper and brake line • Assembly: Ships fully assembled with bearings and sleeves installed • Country of origin: USA
