14" Remote Reservoir Touring Shocks - Lifted Height
Select a Spring Rate-Refer to the Spring Rate Sizing Guide in the product images.
Total:
$1,875.00
Sale price
$1,875.00
Regular price
Unit price
per
Shipping calculated at checkout.
- Free shipping on this part
- Ships in 1–2 business days
- Lifetime warranty on Nowaskey parts
- Returns and exchanges: see our policy
- Questions? Call 715-235-3659 or chat with us on the site.
Complete the setupTouring Lifted Ride Height Suspension Package - Remote Reservoir ShocksFrom $3,600.00
Want it installed?Book a Speed Shop slot. Call to check availability.
Description

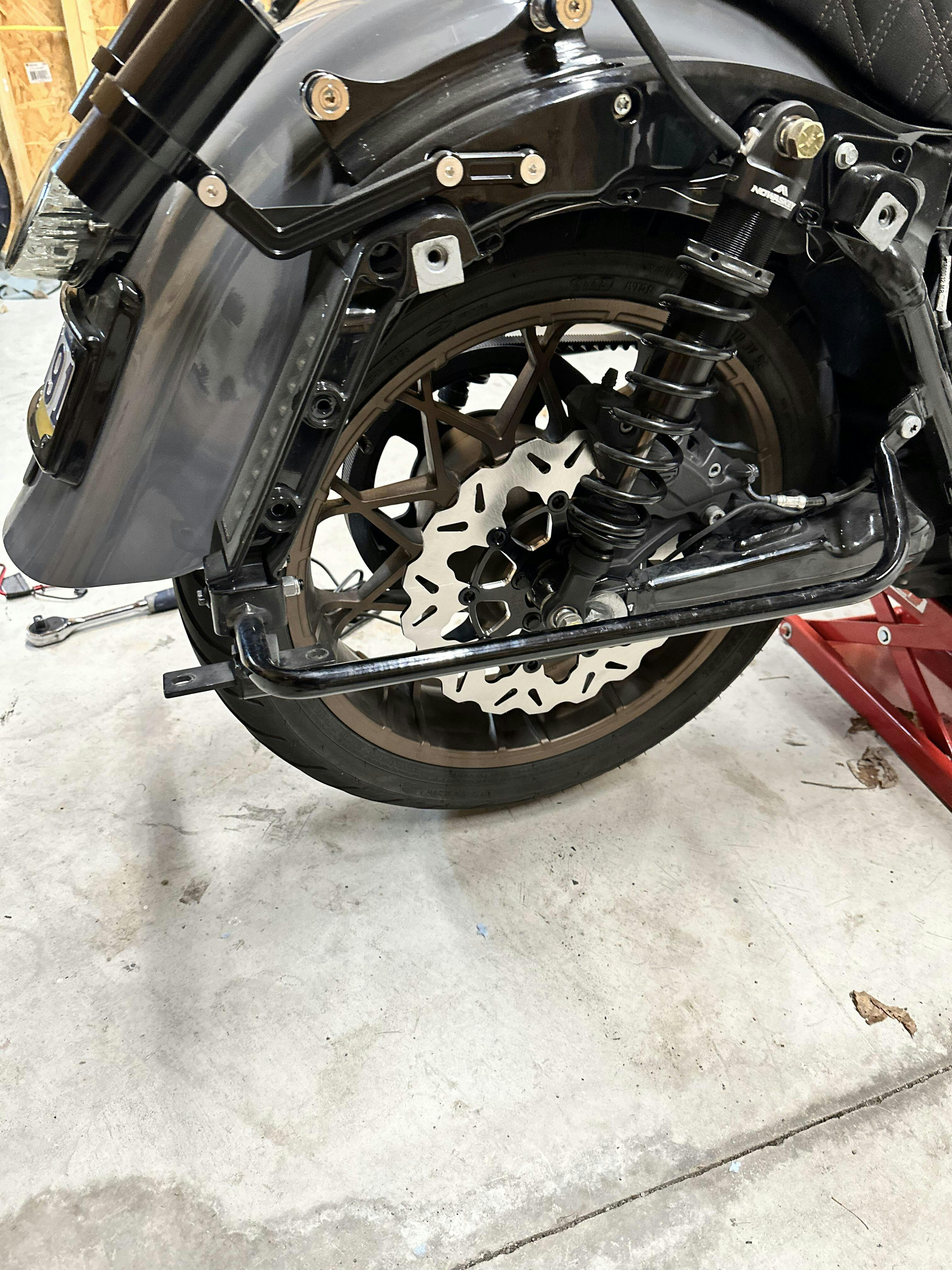

14" Remote Reservoir Harley Davidson Touring Shocks
**IN STOCK and Ready to SHIP today**
Compatible Years/Models: (1999 to Present) Harley-Davidson® Touring Models
Use the Spring Rate Sizing Guide above to select your spring rate.
If you have any questions about spring rate please feel free to send us an email to Info@Nowaskey.com, or call us at 715-235-3659, and we will be happy to answer any questions you may have.
View and download the Installation & Tuning Guide
Designed for the Harley-Davidson® touring enthusiast who expects the ultimate in ride performance. Most importantly, experience exceptional handling, unrivaled tunability, and ride performance. Nowaskey® 14 inch Remote Reservoir Rear Shocks are built for every riding style from the aggressive bagger to the long-distance rider. For example, the on-the-fly tuning instantly adjusts for your riding style, road conditions, and varying payload. Set the sag with the adjustable preload, then fine-tune the response with adjustable compression and rebound damping. Reservoir mounts are not included.
THE NOWASKEY DIFFERENCE
Our 14 inch touring remote reservoir suspensions are designed and built to exacting specifications. All of our products are hand-assembled in the USA with American-made materials. Each shock is individually dyno-tuned and mated to its twin for consistent and exceptional performance.
Our 14 inch touring remote reservoir suspensions are designed and built to exacting specifications. All of our products are hand-assembled in the USA with American-made materials. Each shock is individually dyno-tuned and mated to its twin for consistent and exceptional performance.
FEATURES
- Remote reservoir cylinder offers an independent 6-position compression adjustment with a larger nitrogen volume.
- Steel-braided Teflon® lines utilizing O-ring connection points for 360° of rotation.
- Proprietary tuned primary piston and valving to allow a more aggressive riding style.
- Proprietary tuned compression adjuster for a broader range of adjustment on the reservoir.
- 1" Teflon® lined wide misalignment spherical joints to compensate for misalignment on OEM frame mounts.
- Rebound adjustable eyelet O-ring sealed with 80 clicks for ultra-fine tuning.
- Custom-designed lightweight spring hardware and the ability to adjust the preload by hand.
- (6) spring rates available 110lbs/in, 115lbs/in, 130lbs/in, 140lbs/in, 150lbs/in, 170lbs/in (powder coated).
- Maxima 3.0 WT Full Synthetic Fluid.
- Preload setting on both shocks allows suspension adjustment based on rider, passenger, and gear weight for optimal performance.
- Progressive rate springs stiffen quickly for improved handling when elevating to high-performance riding.
- Exceptional shock length adjustment of +8/-2 mm.
- High-pressure nitrogen gas-charged design resists shock fading with low-friction shaft/seal head design for smooth performance.
- Remote reservoir rear shocks are fully serviceable and rebuildable.
- Limited Lifetime Warranty. See the full Warranty
- Made in the USA.
See our complete line of Bagger Performance Products.
Fitment
Fits Harley-Davidson Touring Models - 1999 to Present
Not sure it fits your bike? Call 715-235-3659 or chat with us on the site and a tech can confirm it with you.
Specifications & Installation
| Brand | Nowaskey |
|---|---|
| Part number | Varies by selected option |
| Product type | Suspension |
| Spring Rate | 100lbs/in, 115lbs/in, 130lbs/in, 140lbs/in, 150lbs/in, 170lbs/in |
Videos
Want it installed right? Book the Nowaskey Speed Shop or call 715-235-3659.
Questions Riders Ask
Will this fit my bike?
Fits Harley-Davidson Touring Models - 1999 to Present.
Save your bike with Shop by Bike and we check it for you. Not sure? Call or chat with us on the site and a tech can confirm it with you.
Which spring rate do I need?
It depends on your bike, your weight and whether you ride two-up. . Call 715-235-3659 or chat with us with your weight and how you ride, and a tech will recommend the right spring.
Does this come in a package?
Yes. It comes in the Touring Lifted Ride Height Suspension Package - Remote Reservoir Shocks, from $3,600.00.
What do riders buy with this?
Is it covered by a warranty?
Yes. Nowaskey-brand parts carry our lifetime warranty. Register your warranty after it arrives.
Can I install it myself?
Most riders with basic tools and a service manual can. The Specifications & Installation tab lists difficulty, time and guides where we have them. Prefer a pro install? Book a Speed Shop slot and call to check current availability.
Still have a question? Call 715-235-3659 or chat with us on the site.
