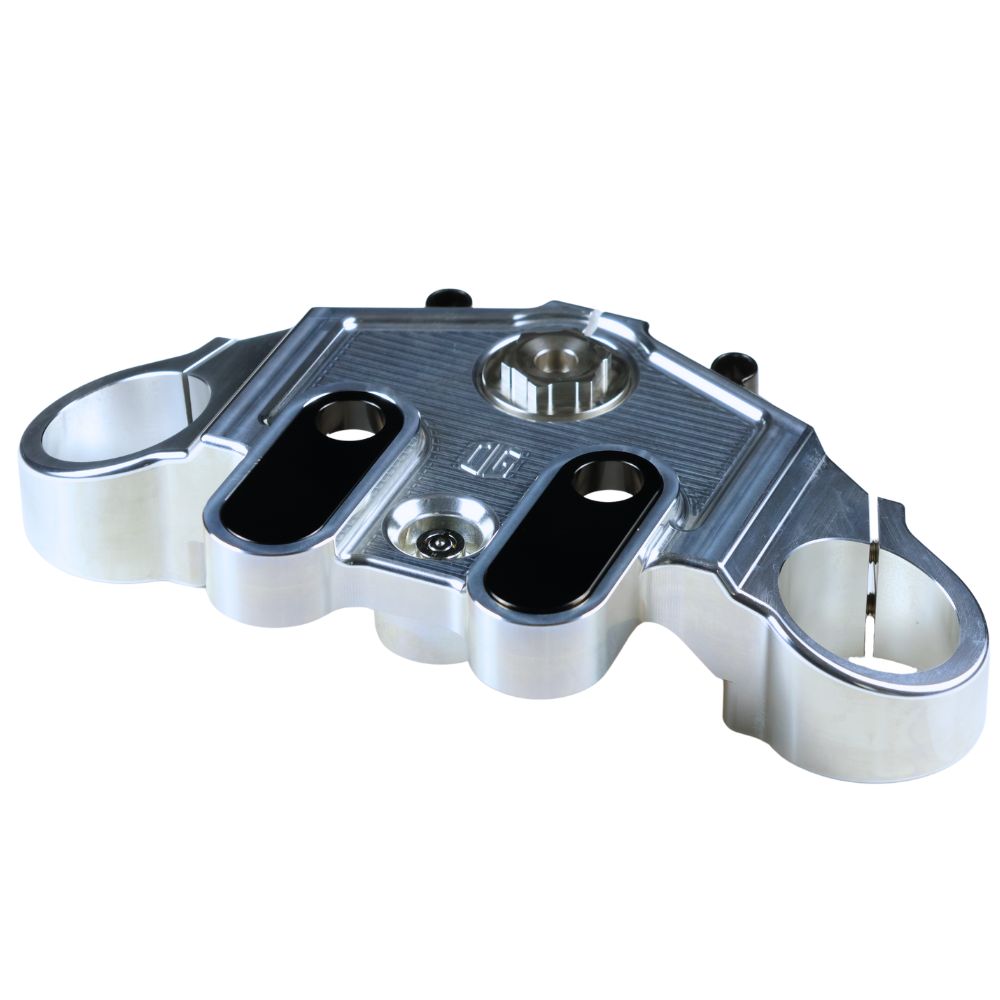

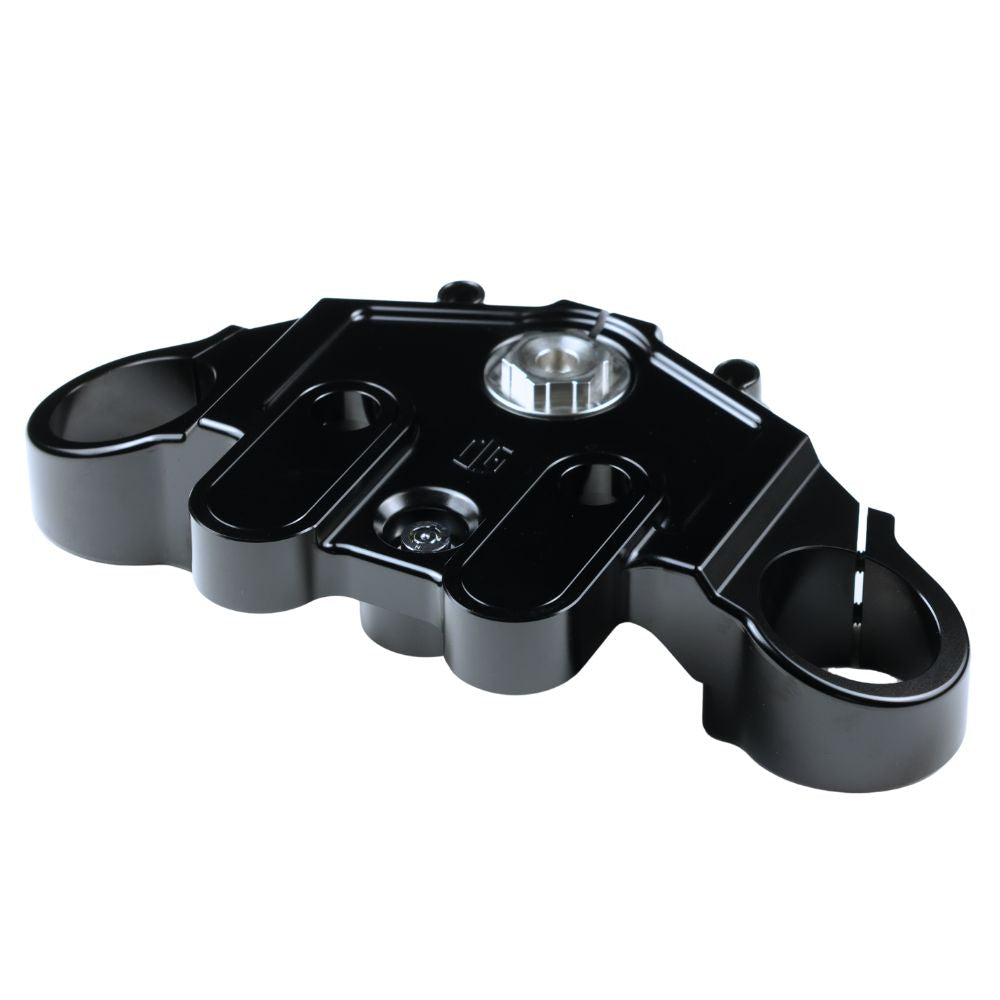

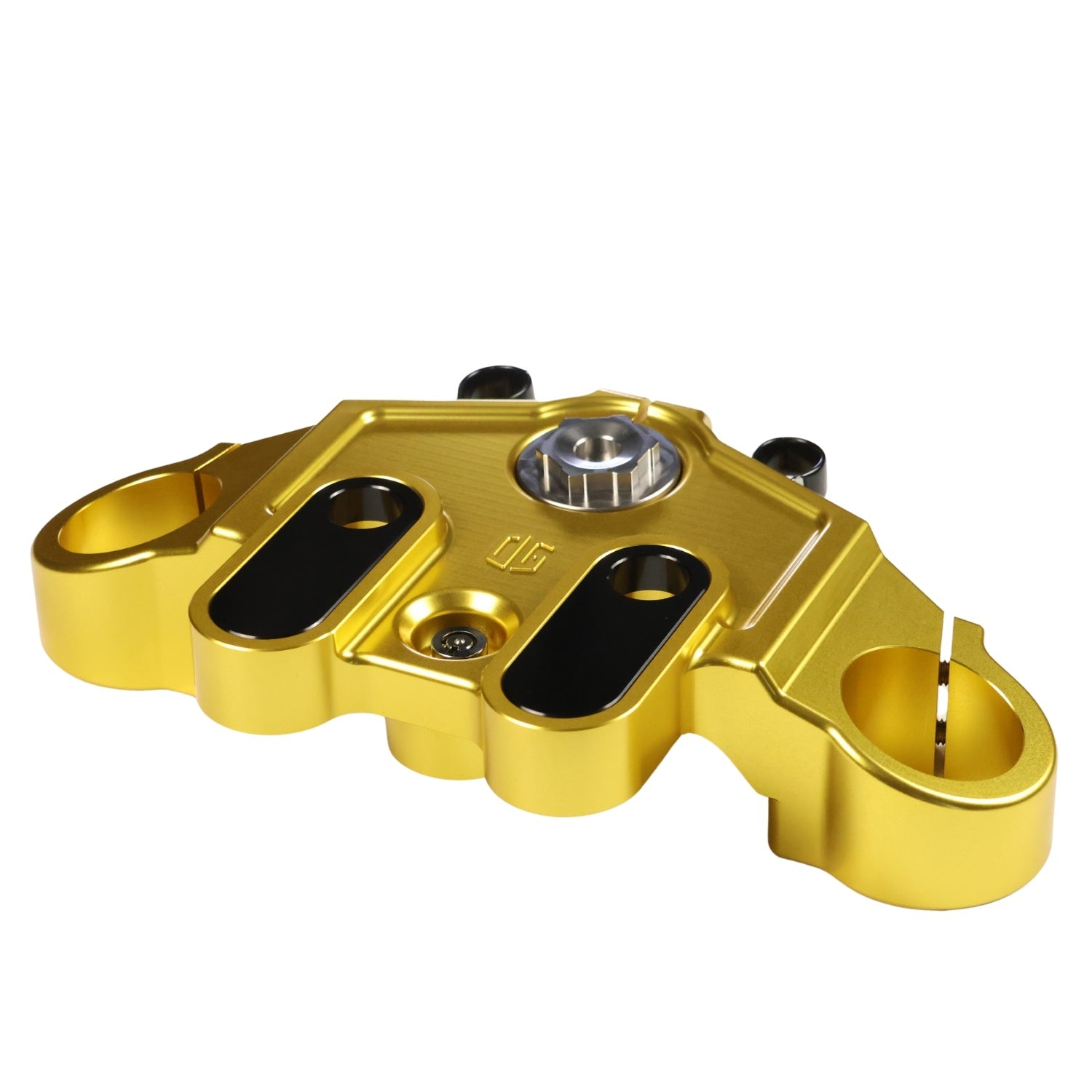

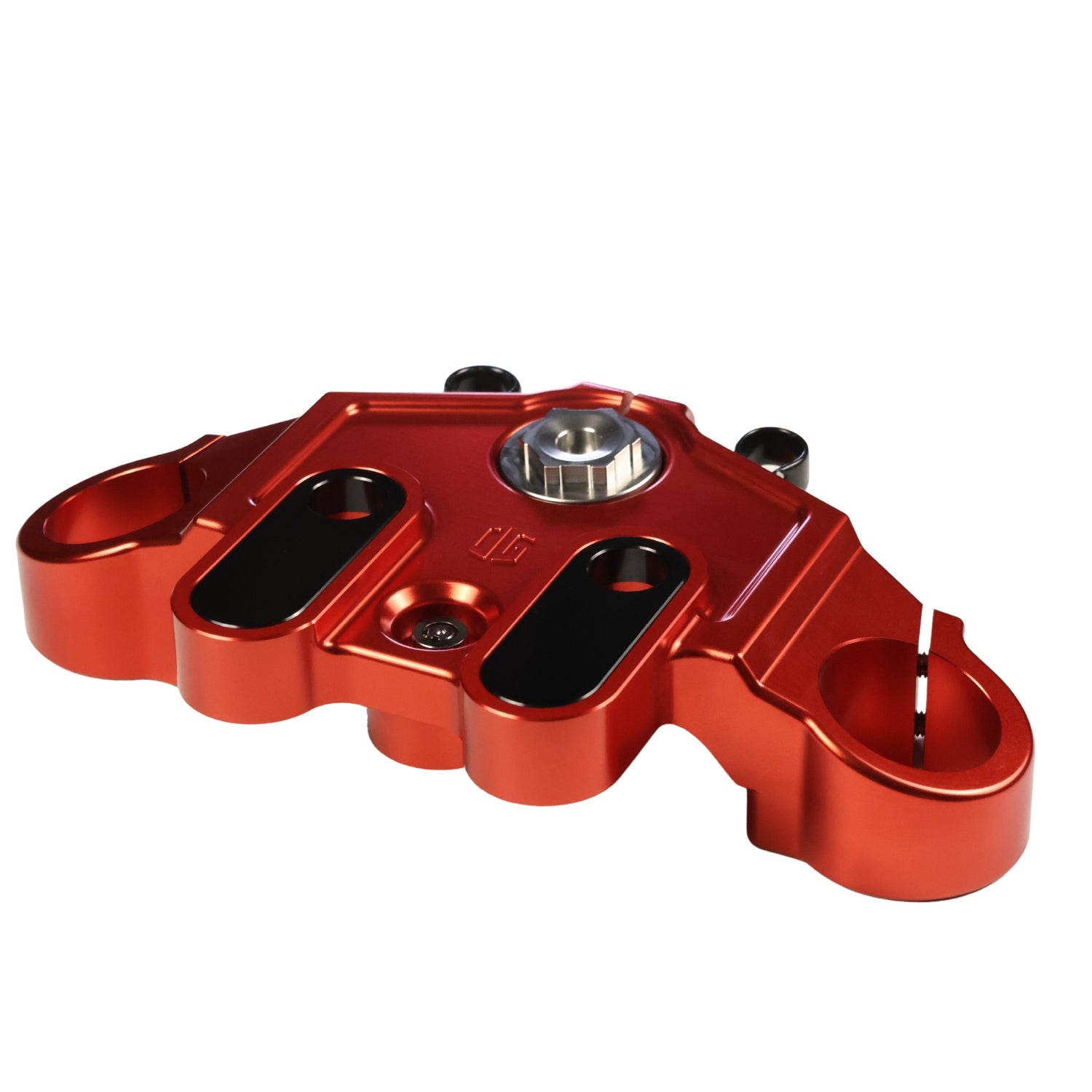

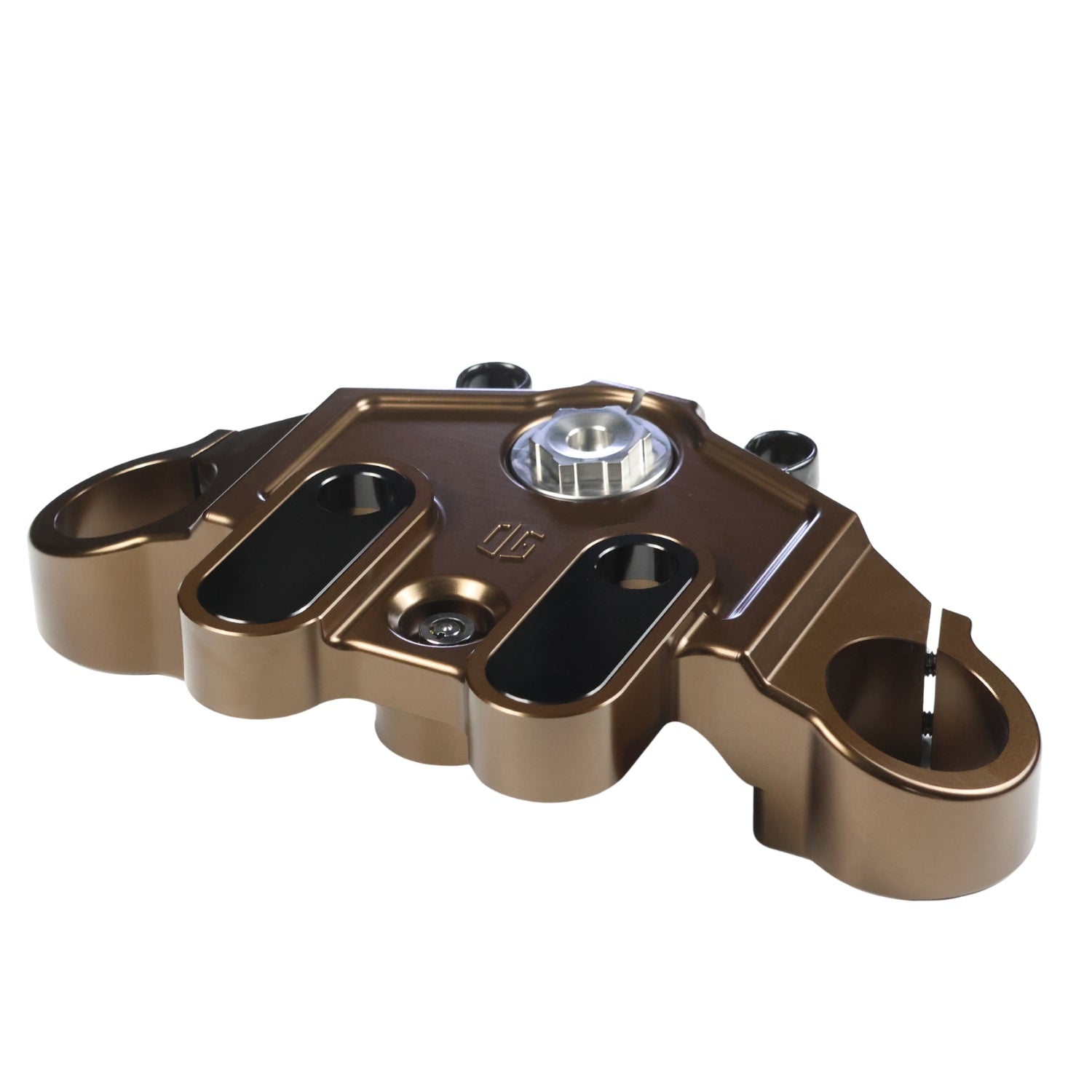

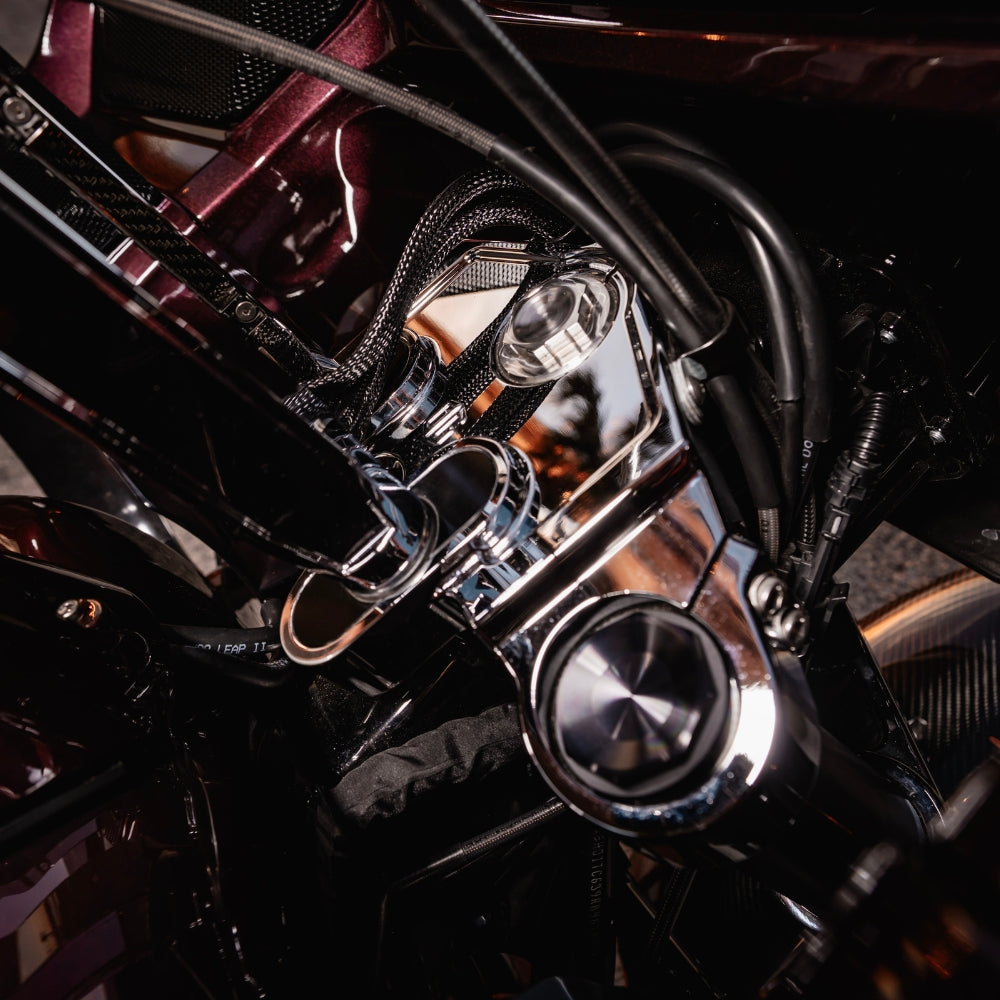

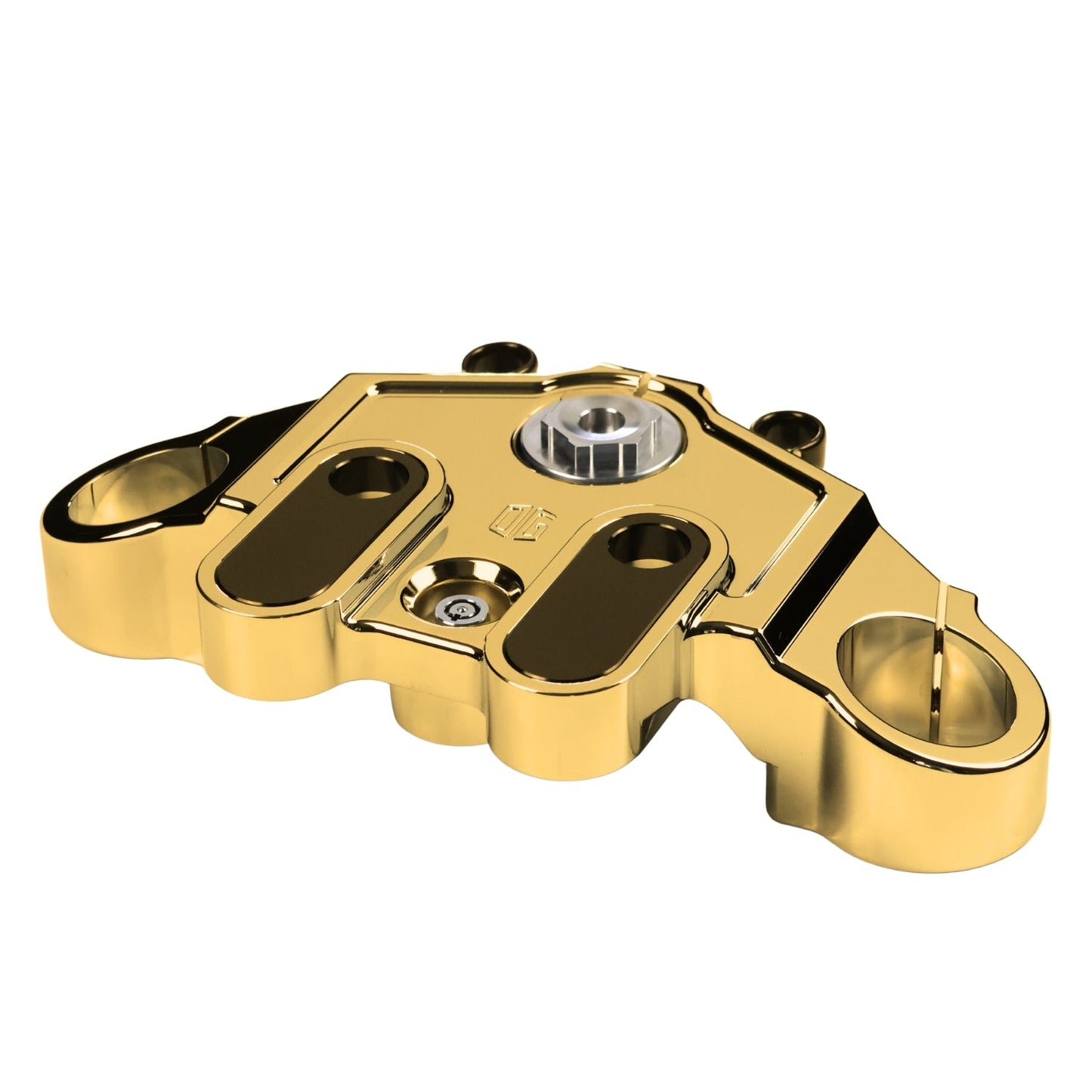

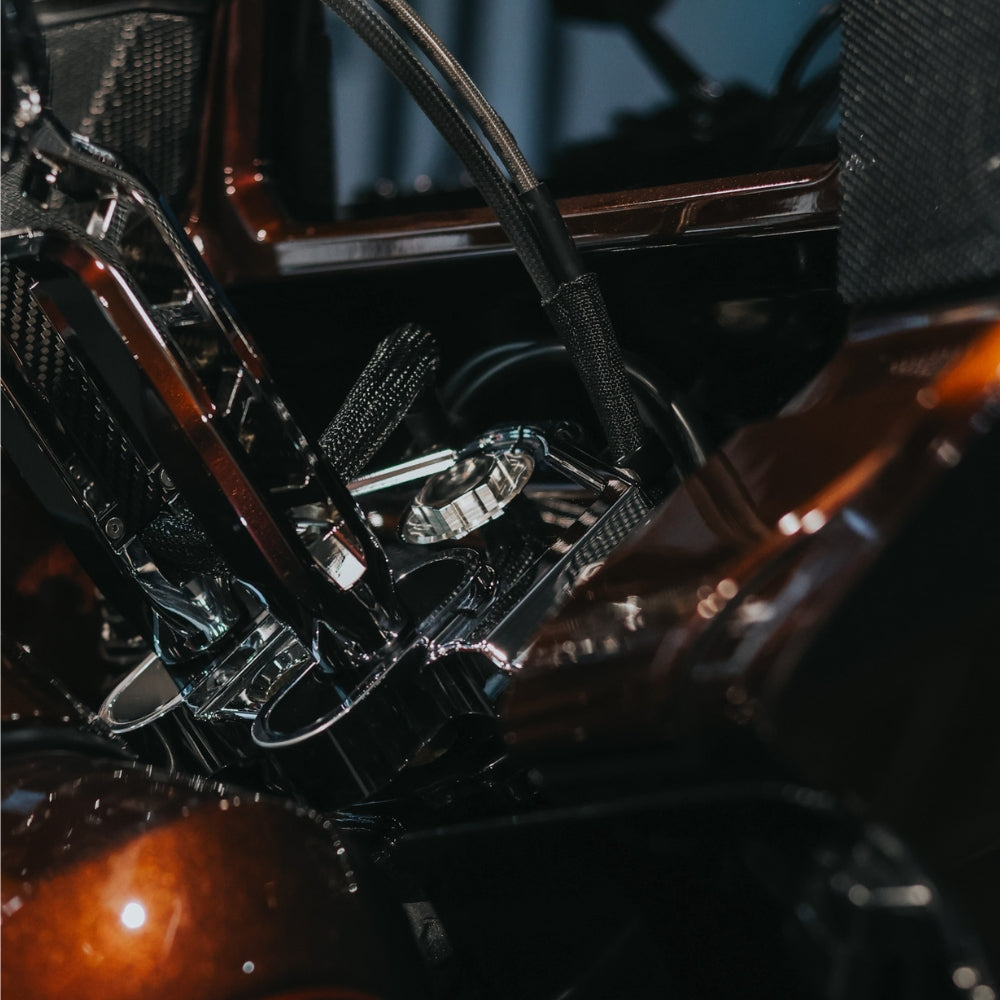

OG 2023-Up Touring CVO Drop 1" Top Triple Tree

Our OG 2023-Up Touring CVO Drop 1" Top Triple Tree will allow you to set your Risers exactly where you want them with three mounting location options; Stock, +1'' & +2'' pullback towards the rider (+1” Adapters are sold separately).

This tree will also allow you to lower your fork up to 1", which will raise your bike height and provide better ground clearance. This is a great alternative for those looking for a more aggressive stance. Works well with 14-inch shocks.

Also features pocketed key lock & wire management clamps for that clean install and factory look. This premium Top Tree comes with a fully CNC machined 304 stainless steel stem nut and is available in all colors including chrome finishes.

*Risers bushing are required for this kit and sold separately.

Features

• 1" Drop feature


•
  Precision CNC machined 6061 T6 aluminum


• Designed to match the OEM rake angle and triple tree offset ensuring a straightforward installation and maximizing performance



• Anodized & Chrome finishes available


• Machined OG logo


• Uses standard FL bushings


• Stainless steel hardware included


•
  Includes two Wire management clamps (one on both sides)


• Supplied with a lock and key to keep the fork lock feature




• Innovative reversible Risers mounting Block allows three risers positions; stock, +1'' or +2” pullback towards the rider. +1” Adapters are sold separately



Fitment

• Fits all 2023 to present CVO & CVO ST models equipped with an inverted front-end


• Fit with Ohlins FGRT 307 Touring CVO Inverted Front Forks


•
  Does not fit Street Glide models due to fairing mount locations



Installation

Click here for installation instructions
