2014-2023 Touring Drop 1" Top Triple Tree
Color
- Free shipping on this part
- Returns and exchanges: see our policy
- Questions? Call 715-235-3659 or chat with us on the site.
Description

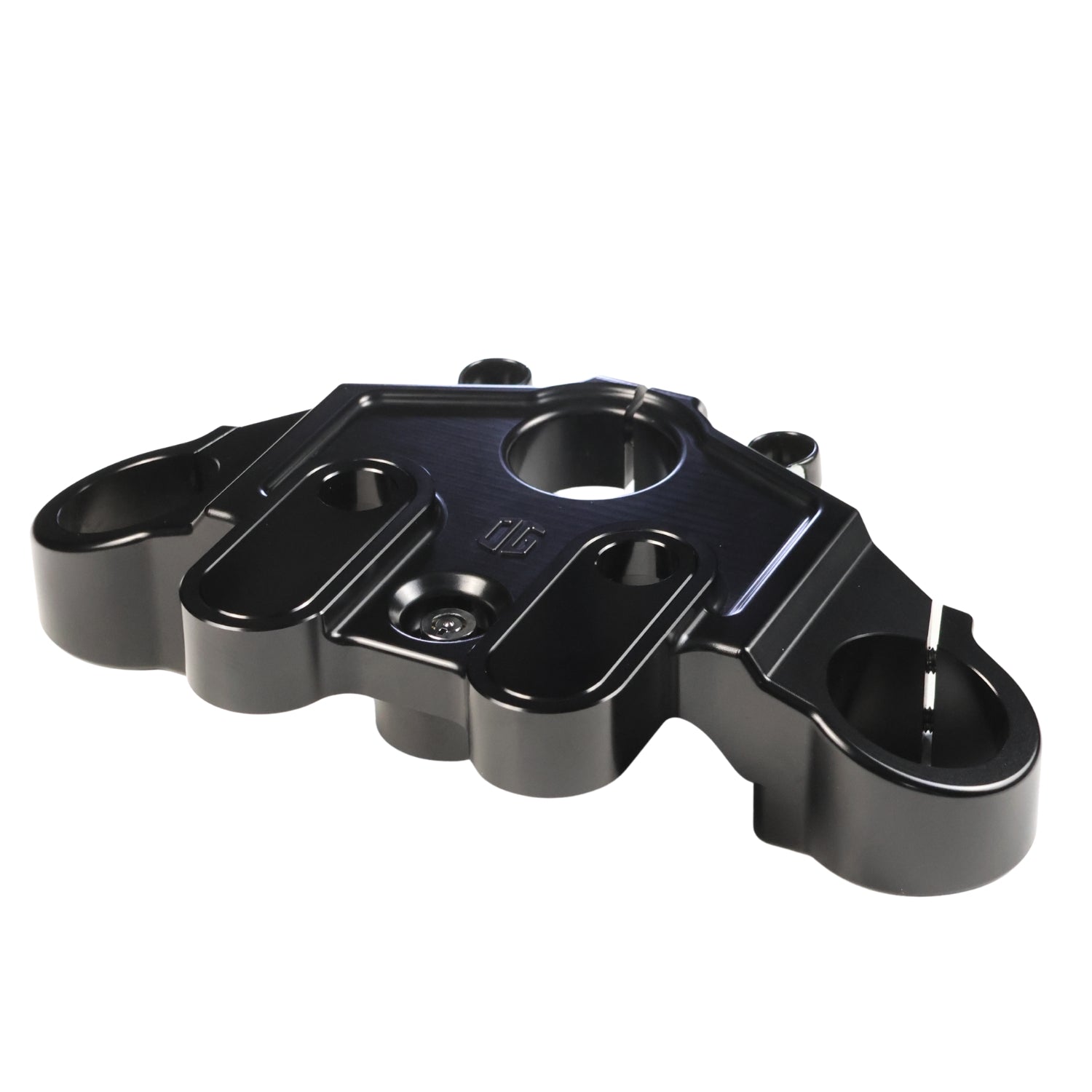

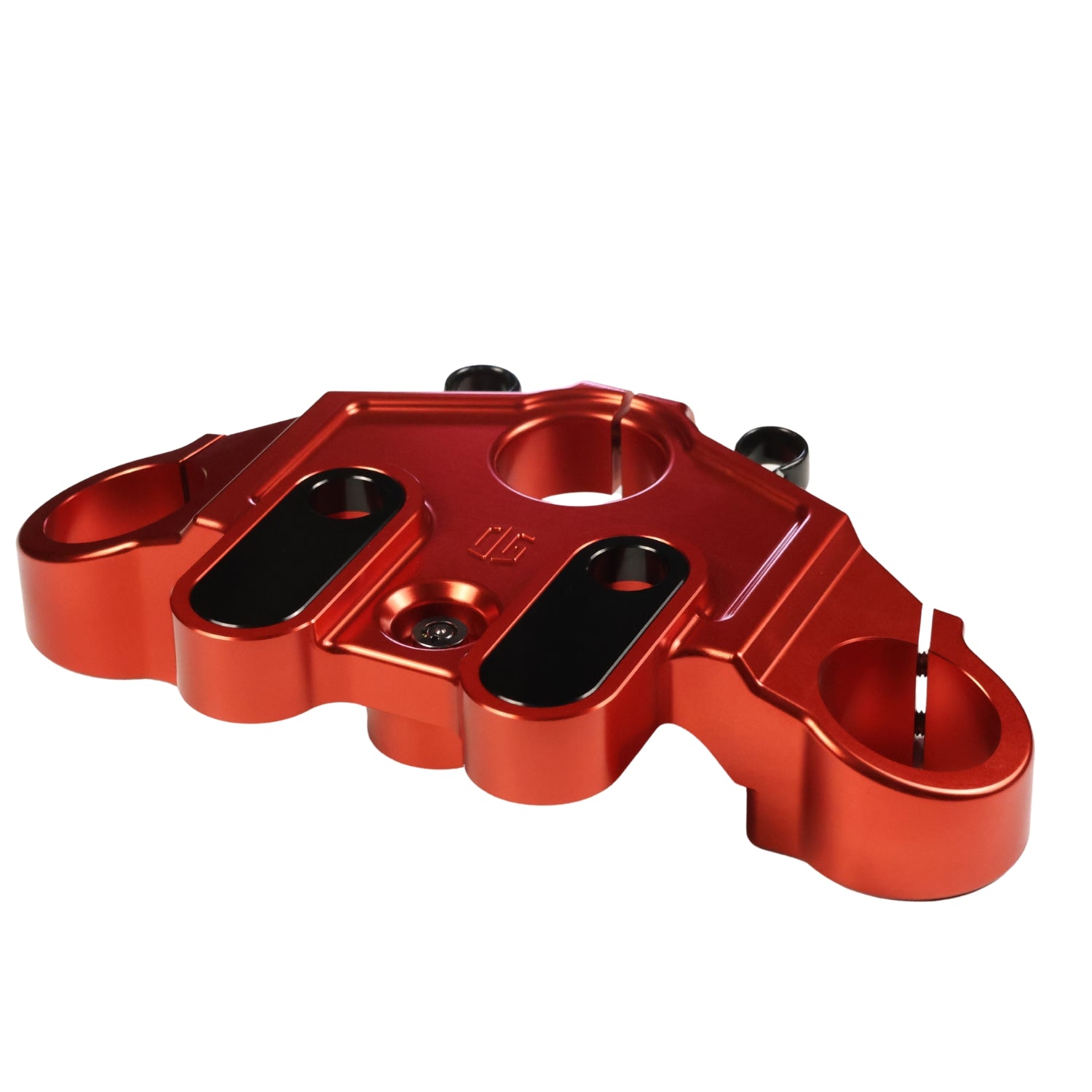

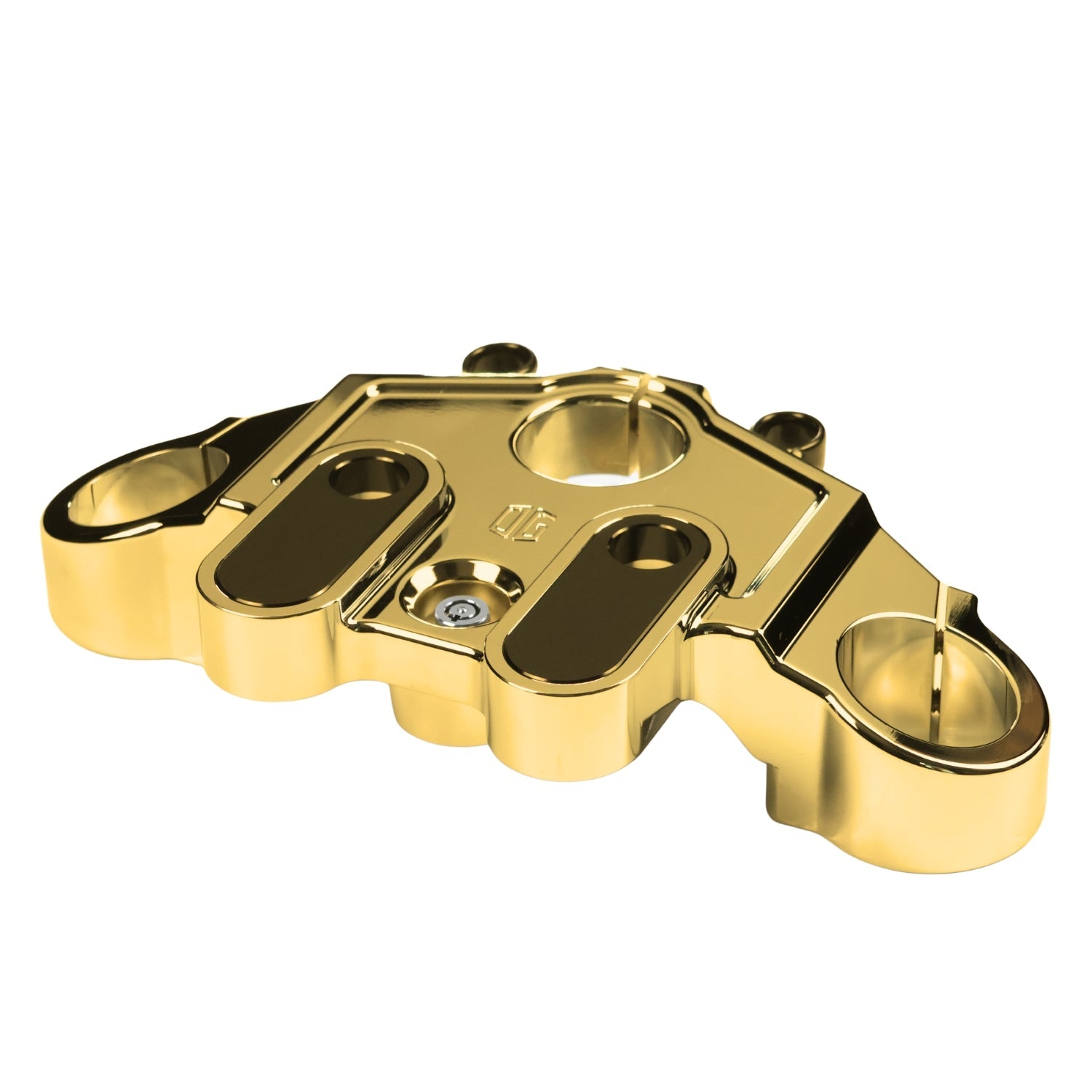

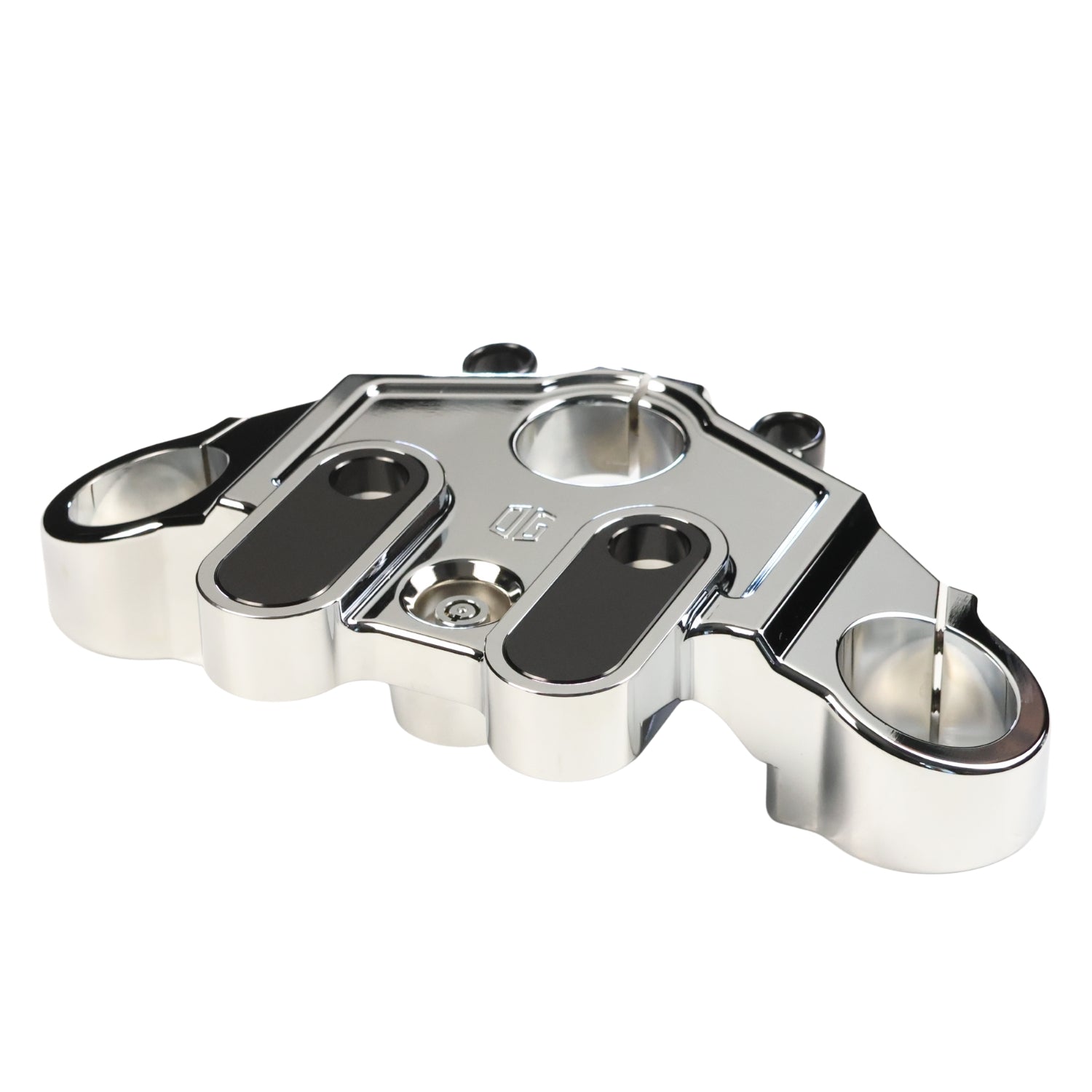

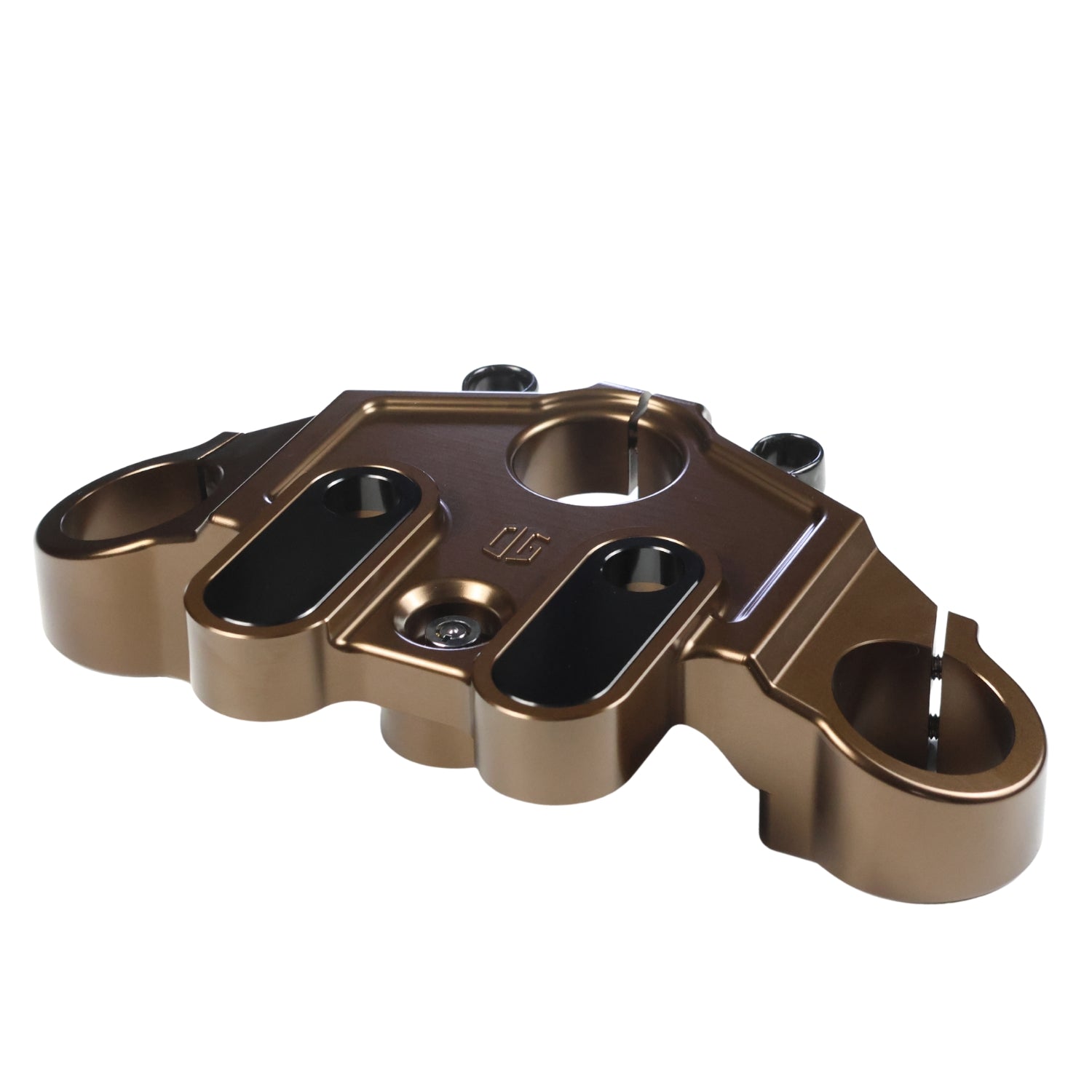

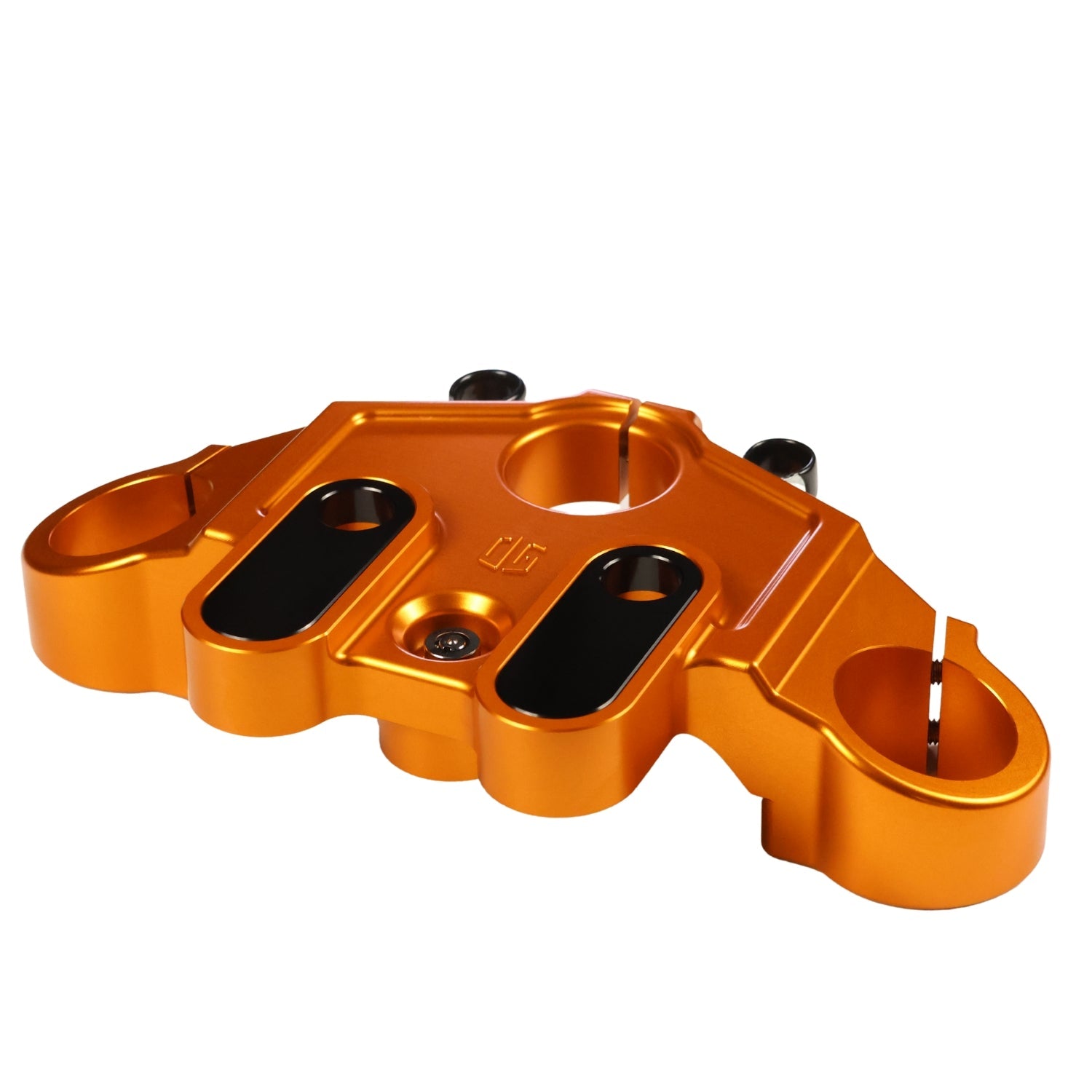

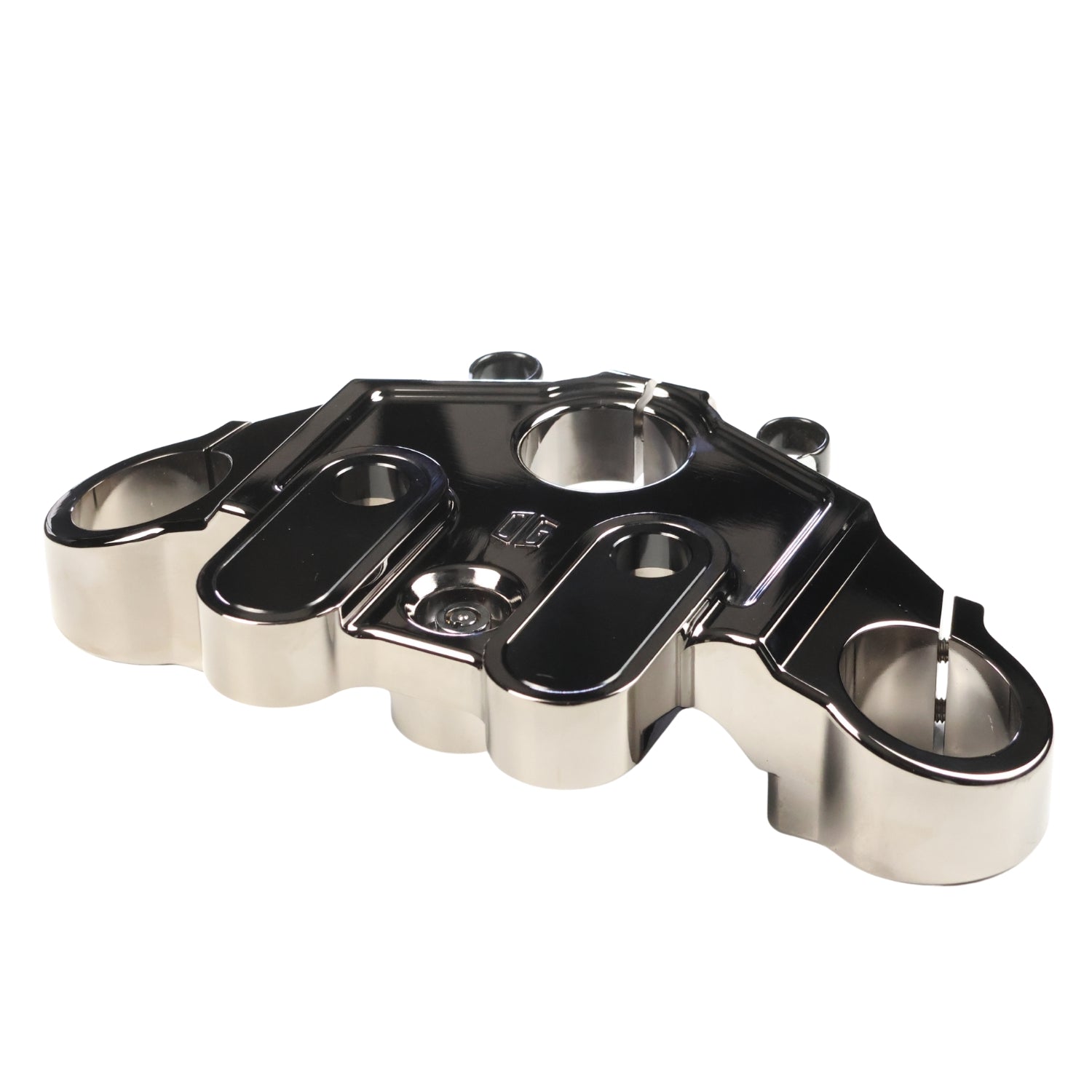

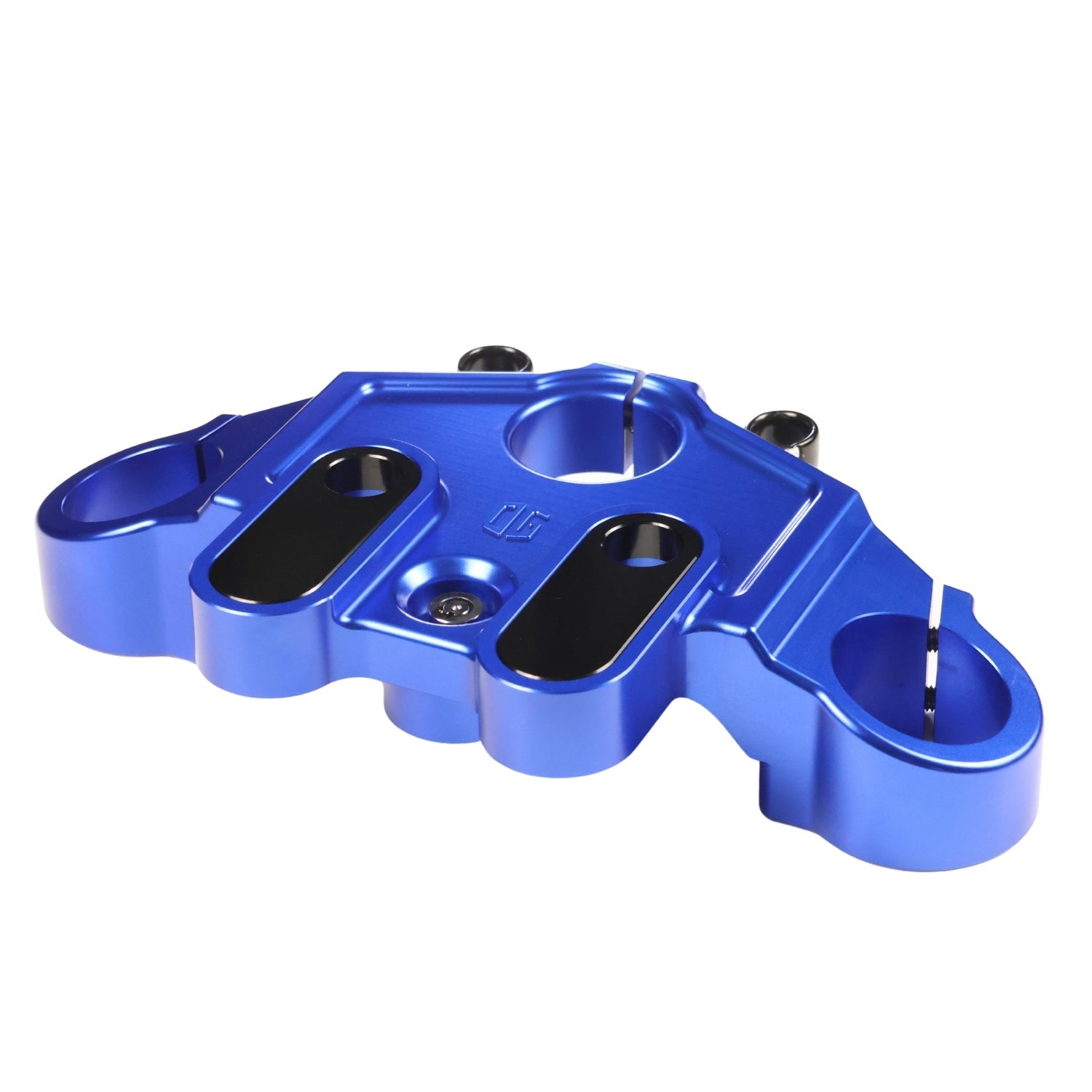

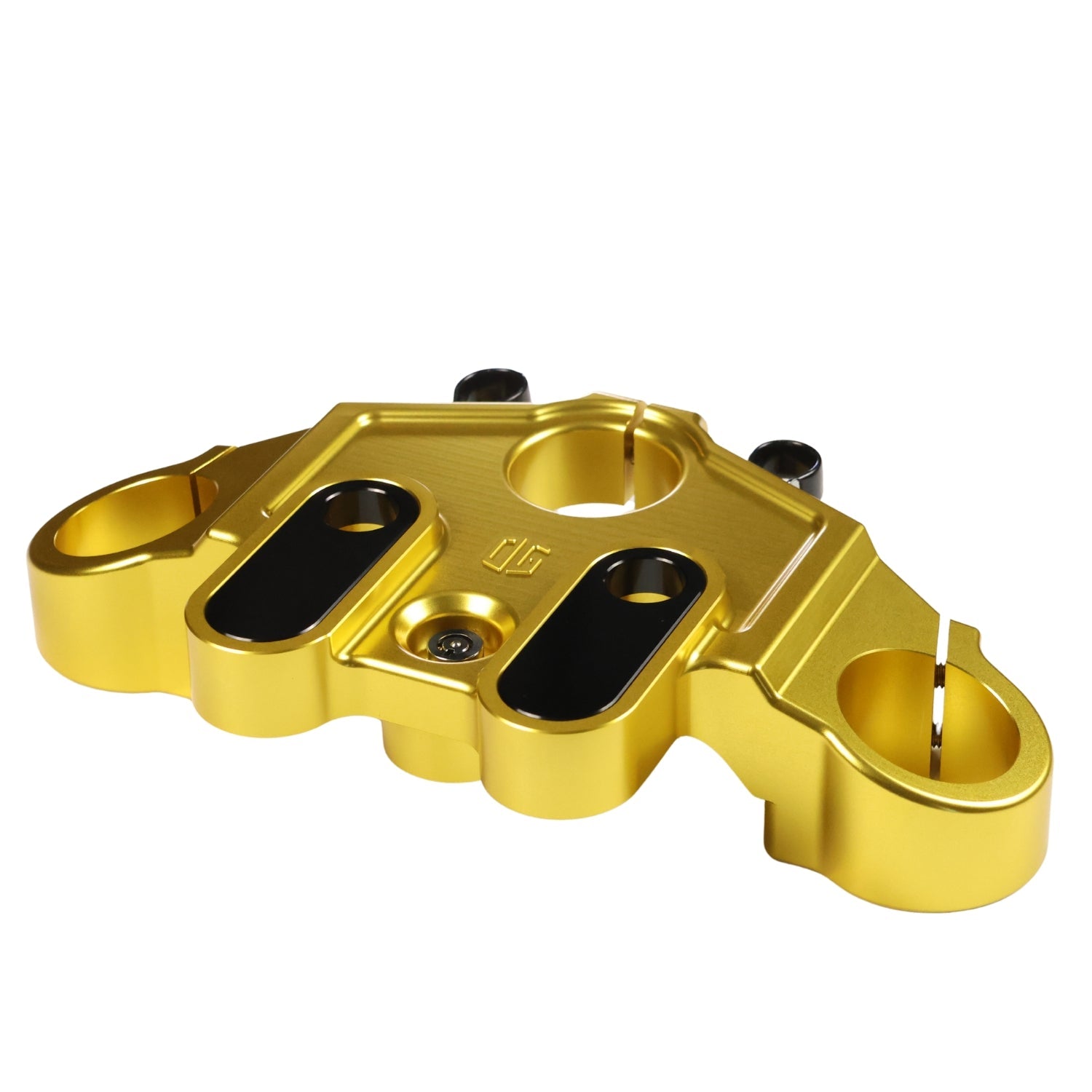

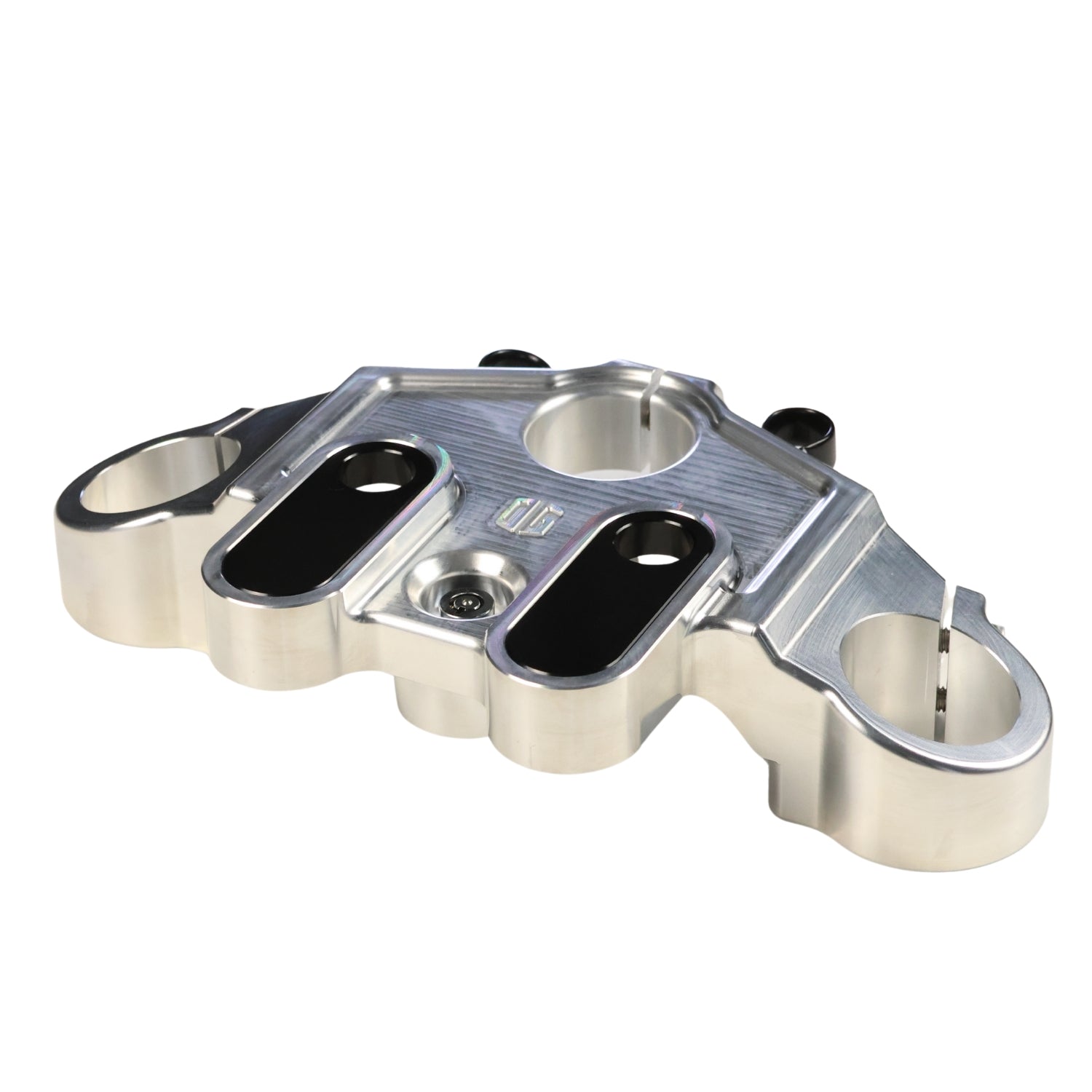

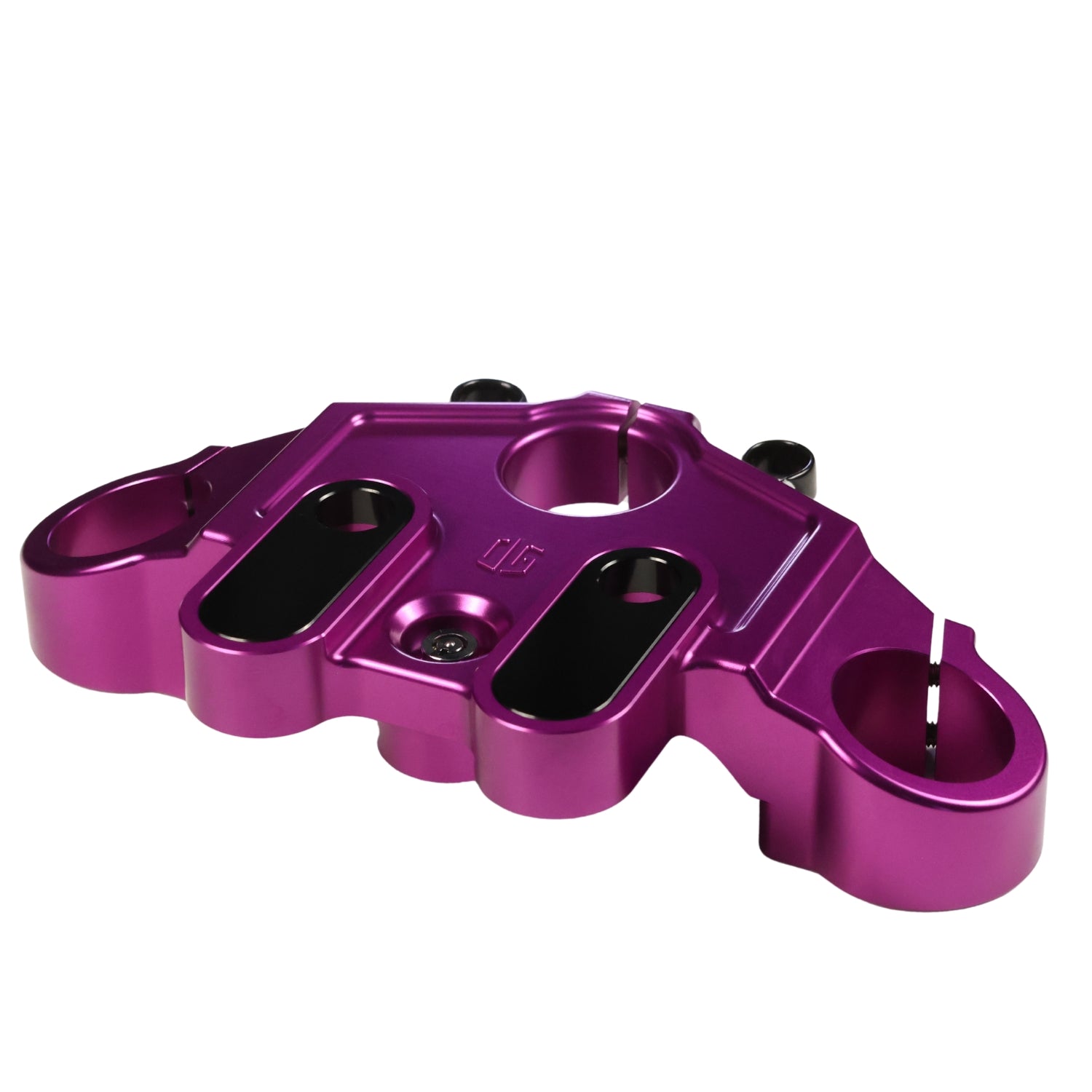

OG 2014-2023 Touring Drop 1" Top Triple Tree
Our OG Drop 1" Top Triple Tree for Harley-Davidson Touring models will allow you to set your Risers exactly where you want them with three mounting location options; Stock, +1'' & +2'' pullback towards the rider (+1” Adapters are sold separately).
This tree will also allow you to lower your fork up to 1", which will raise your bike height and provide better ground clearance. This is a great alternative for those who don't want to commit to using +2 tubes but are looking for a more aggressive stance. Works well with 14-inch shocks.
Also features pocketed key lock & wire management clamps for that clean install and factory look.
*Please note: If your bike still has the OEM Ignition switch/Fork lock, you will need to have your bike flashed with the “keyless CVO feature” at your local shop prior to starting the installation.
**Risers bushing are required for this kit and sold separately.
Features
- 1" Drop feature
- Precision CNC machined 6061 T6 aluminum
- Designed to match the OEM rake angle and triple tree offset ensuring a straightforward installation and maximizing performance
- Hard Anodized & Chrome finishes
- Machined OG logo
- Uses standard FL bushings
- Stainless steel hardware included
- Includes two Wire management clamps (one on both sides)
- Supplied with a lock and key to keep the fork lock feature
- Innovative reversible Risers mounting Block allows three risers positions; stock, +1'' or +2” pullback towards the rider. +1” Adapters are sold separately
Fitment
- Fits all 2014-2023 with 49mm front-end Road Glide models
- Will not fit 2023+ CVO models equipped with an inverted front end
- Does not fit Street Glide models due to fairing mount locations
- Does not fit Road King models due to nacelle mount locations
Installation
Fitment
Fits Harley-Davidson Touring Models - 2014 to 2023
Not sure it fits your bike? Call 715-235-3659 or chat with us on the site and a tech can confirm it with you.
Specifications & Installation
| Brand | Original Garage Moto |
|---|---|
| Part number | Varies by selected option |
| Product type | Triple Trees |
| Color | Black, Aluminium, Chrome, Gold, Red, Blue, Purple, Orange (+3 more) |
