Original Garage Moto

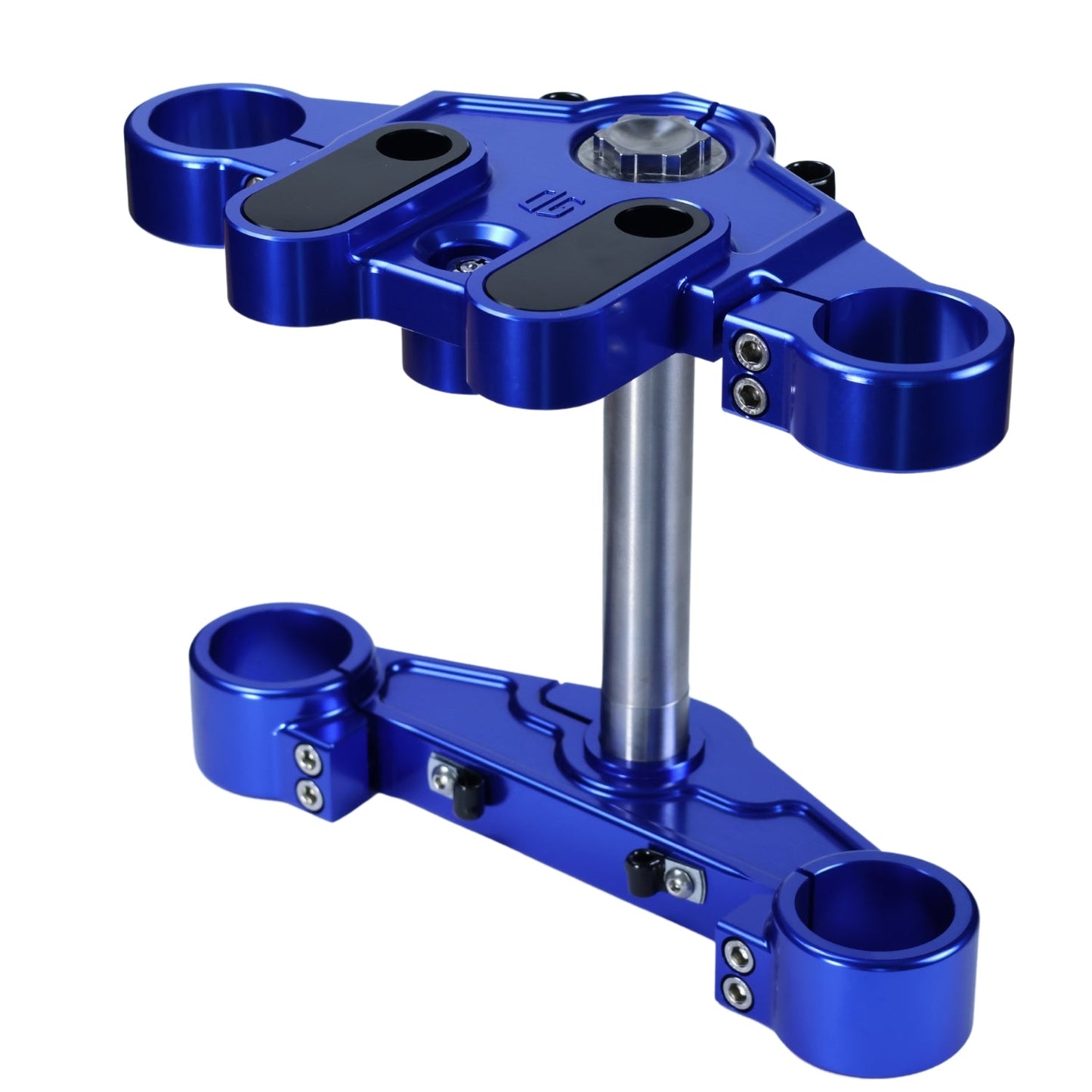

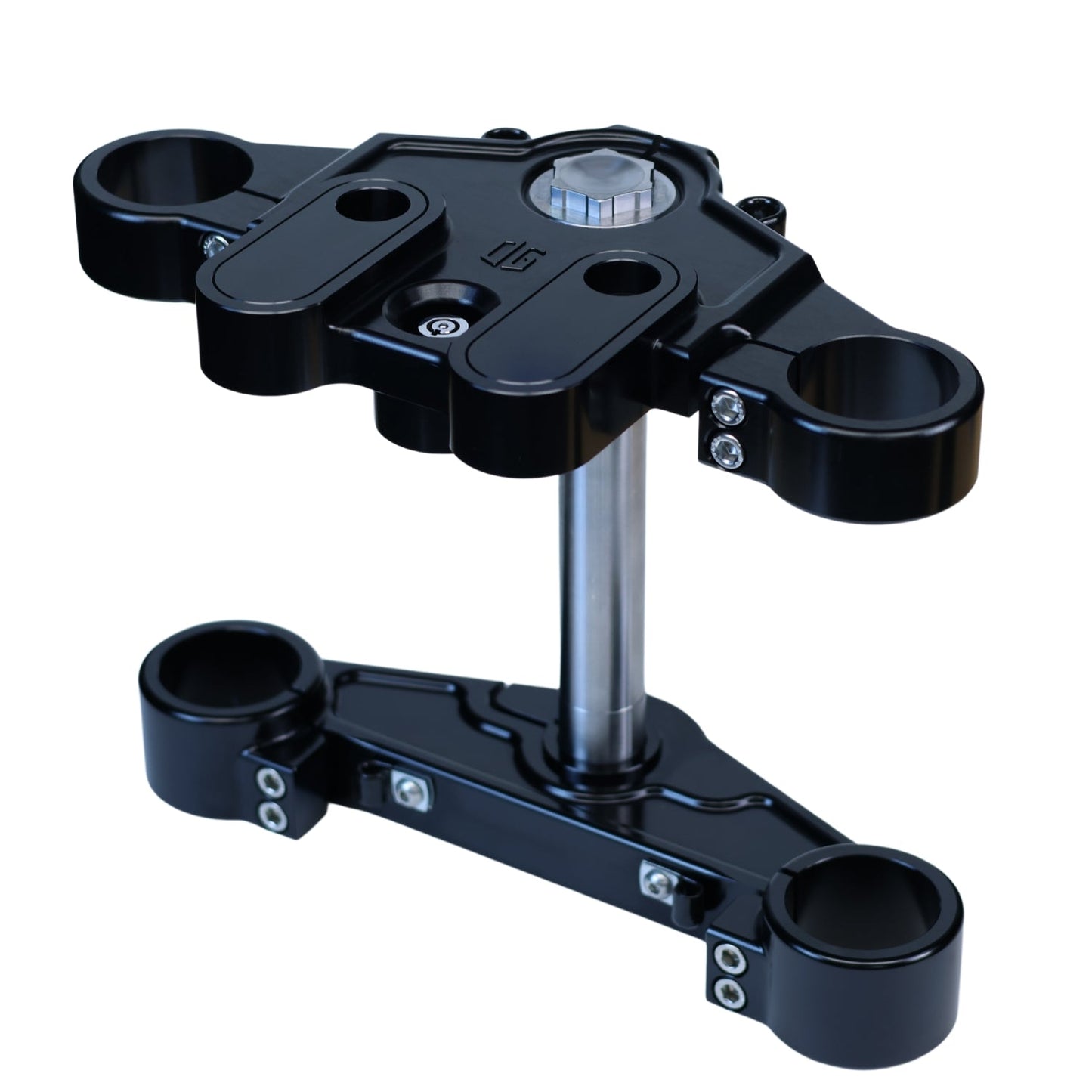

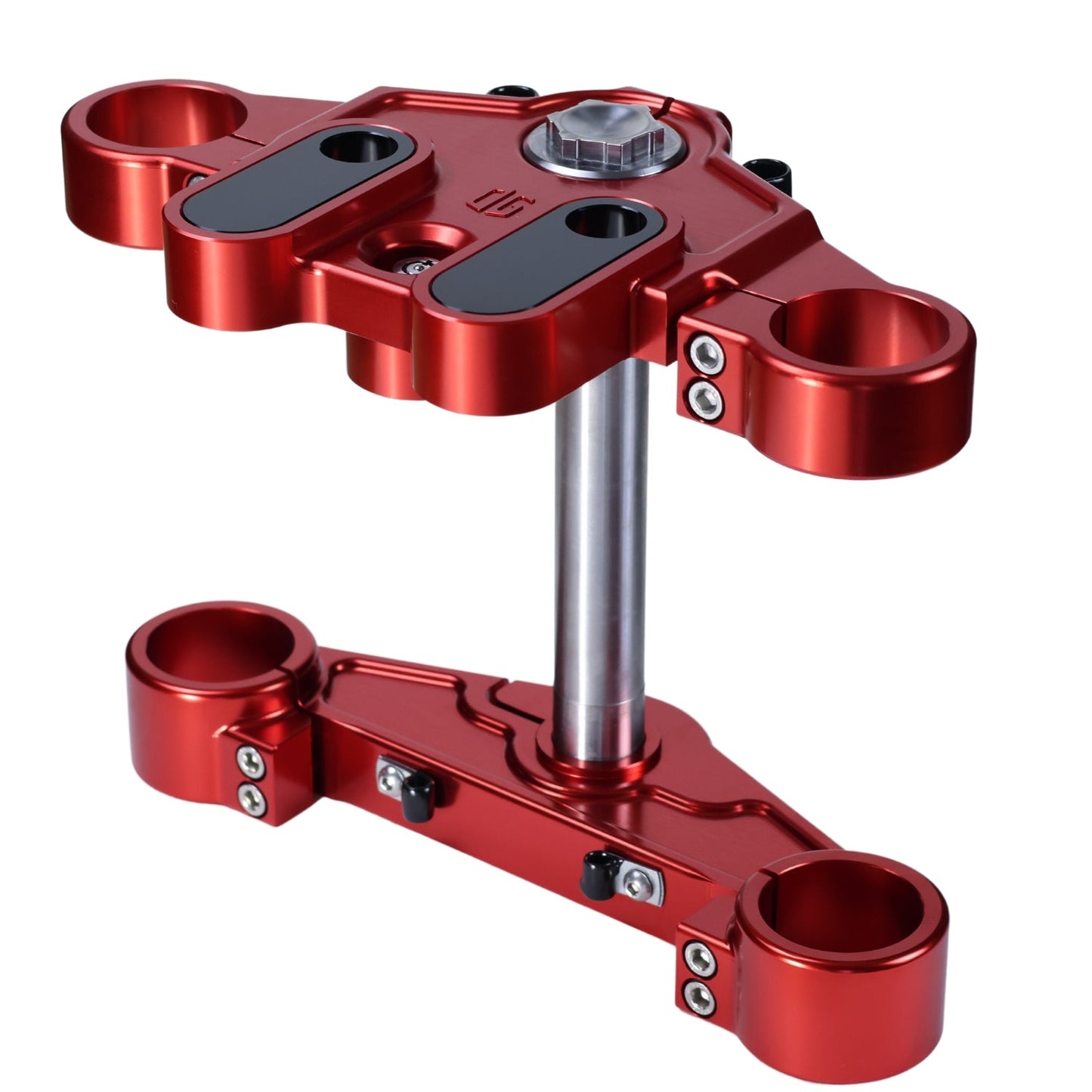

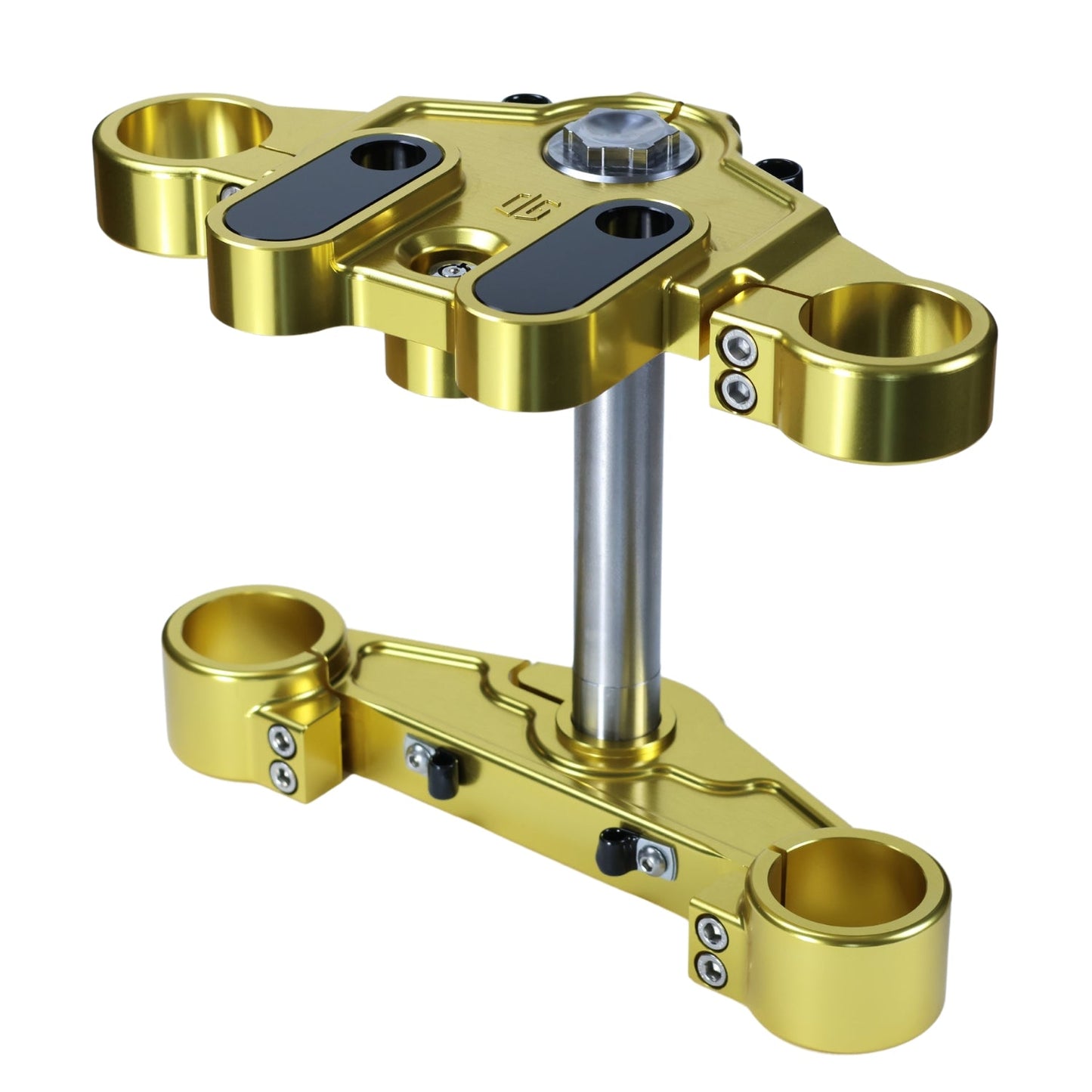

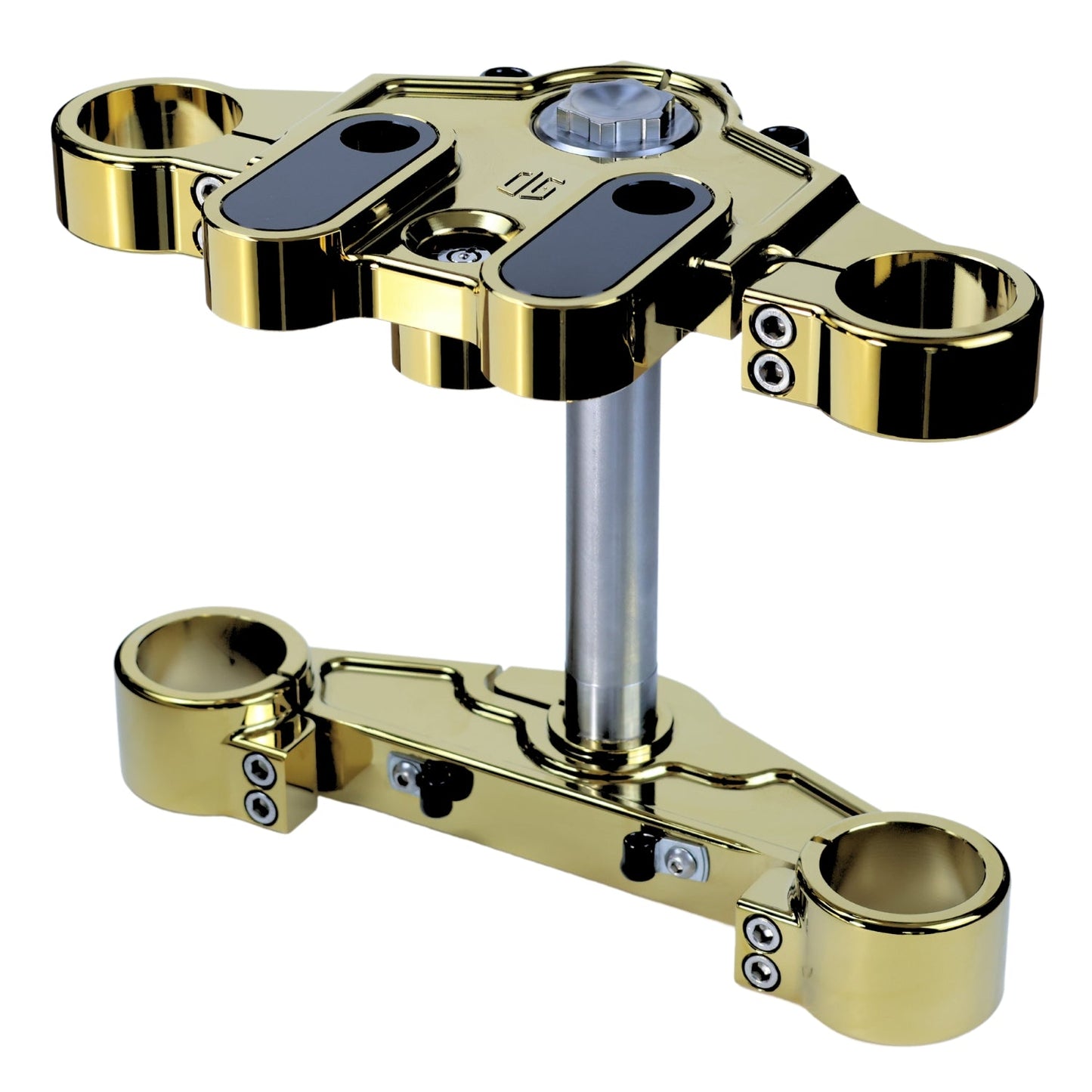

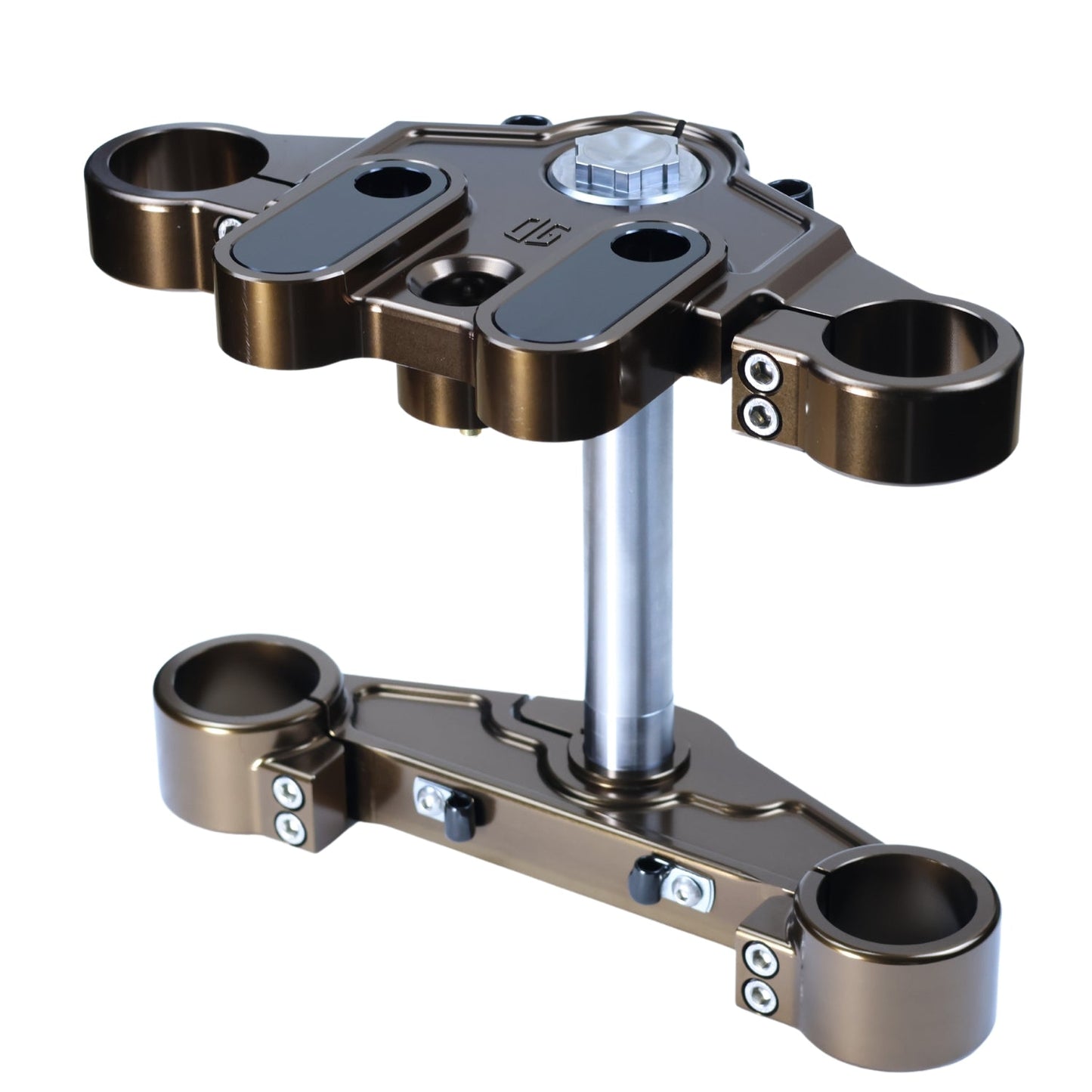

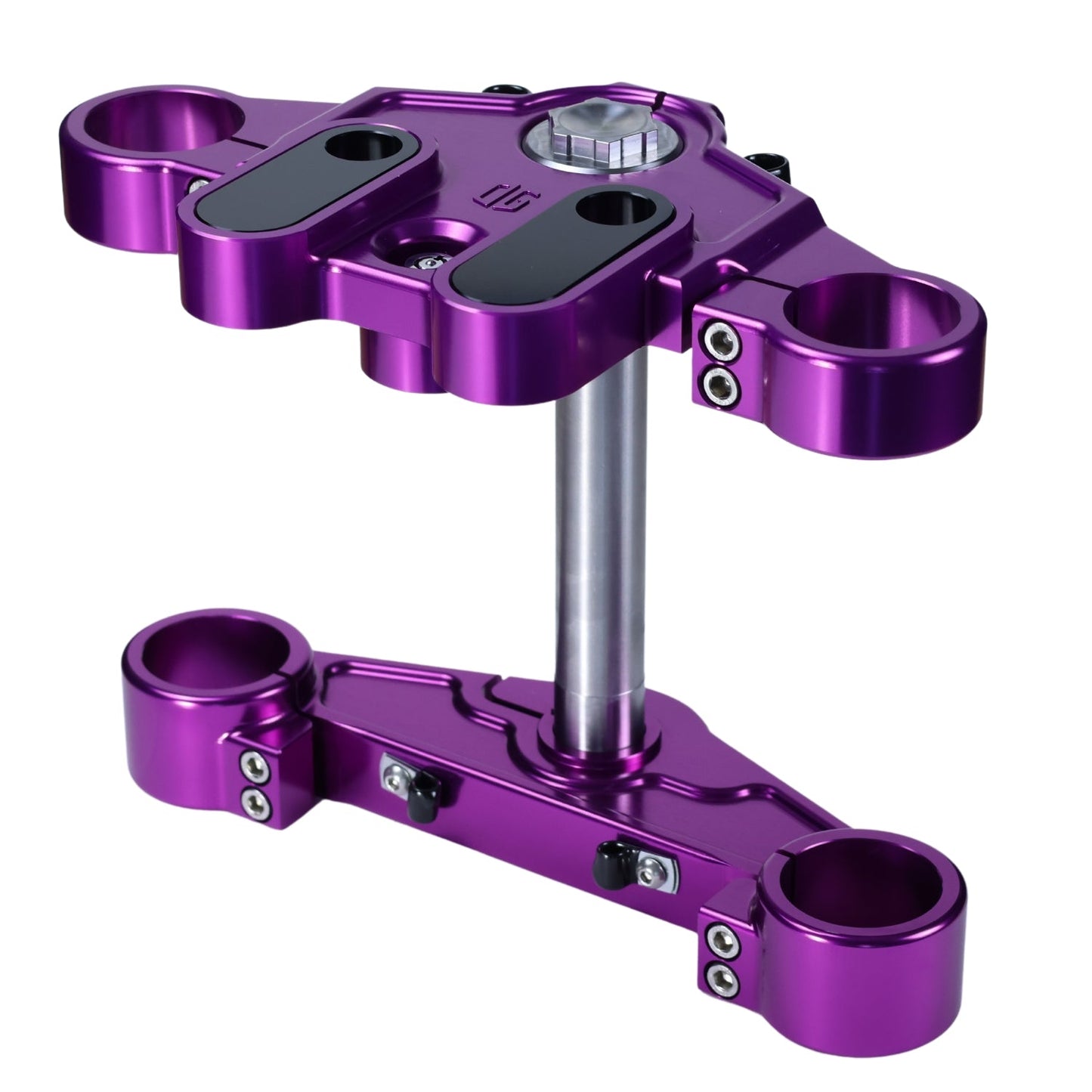

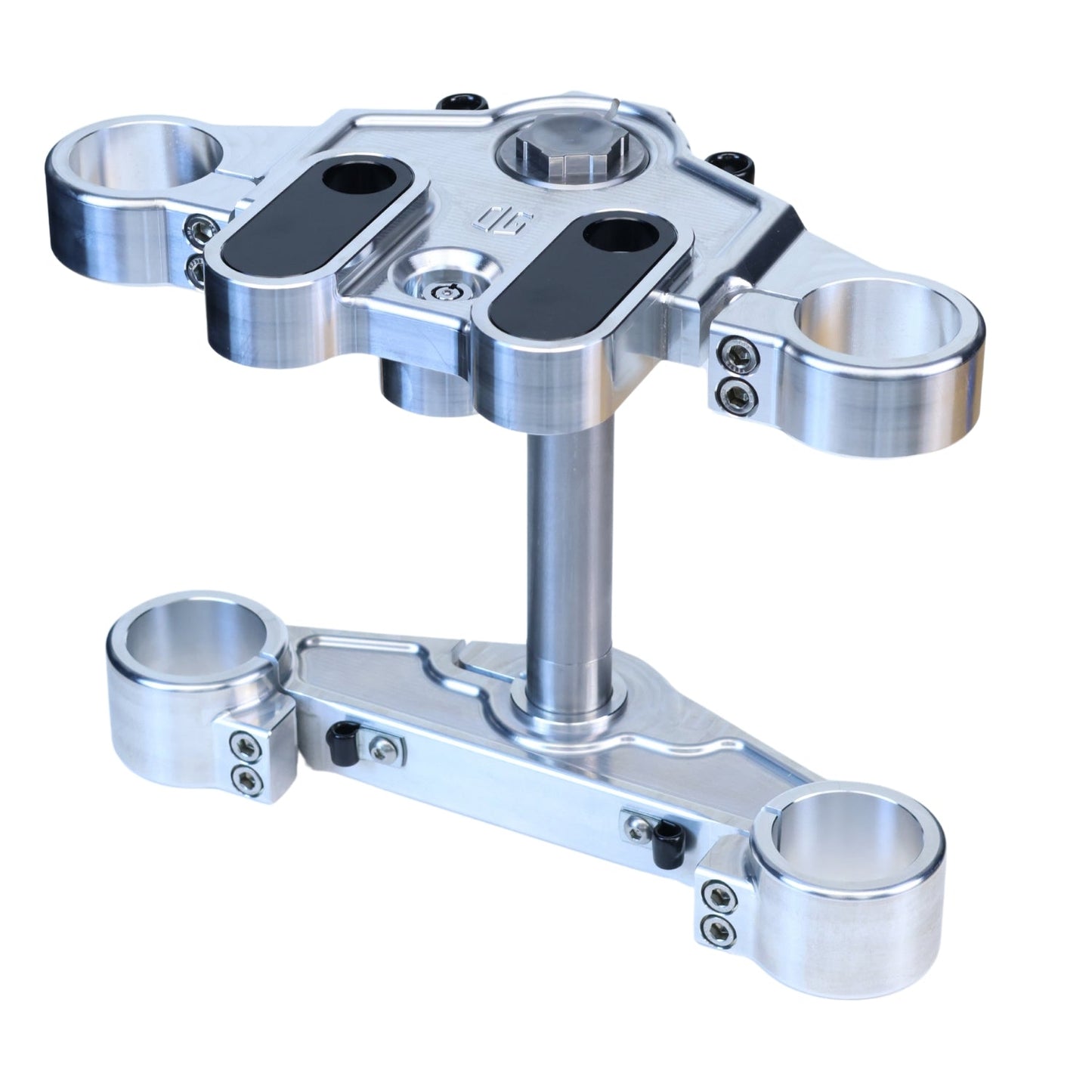

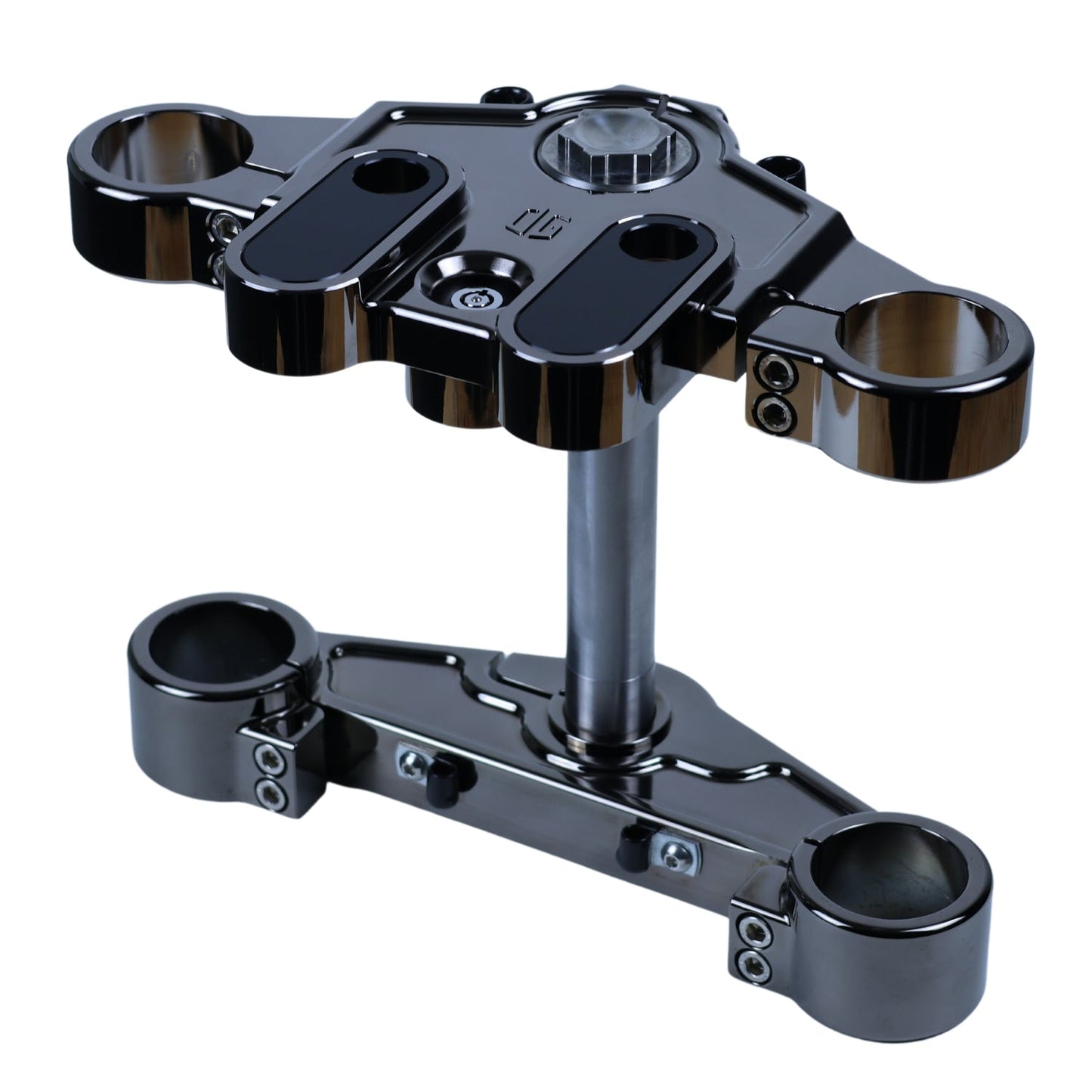

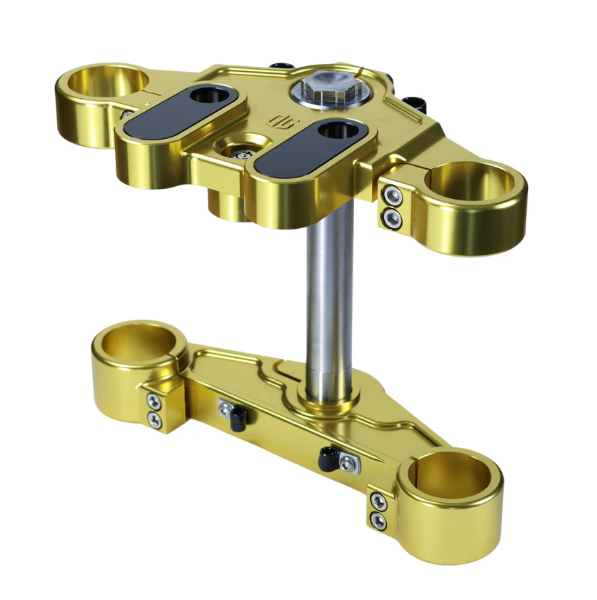

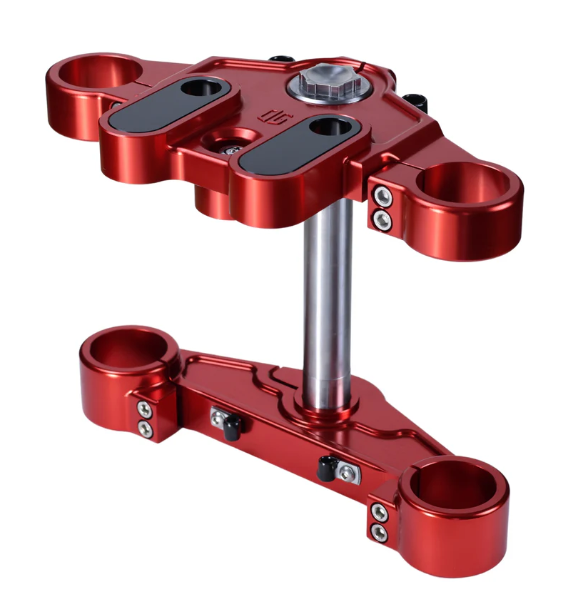

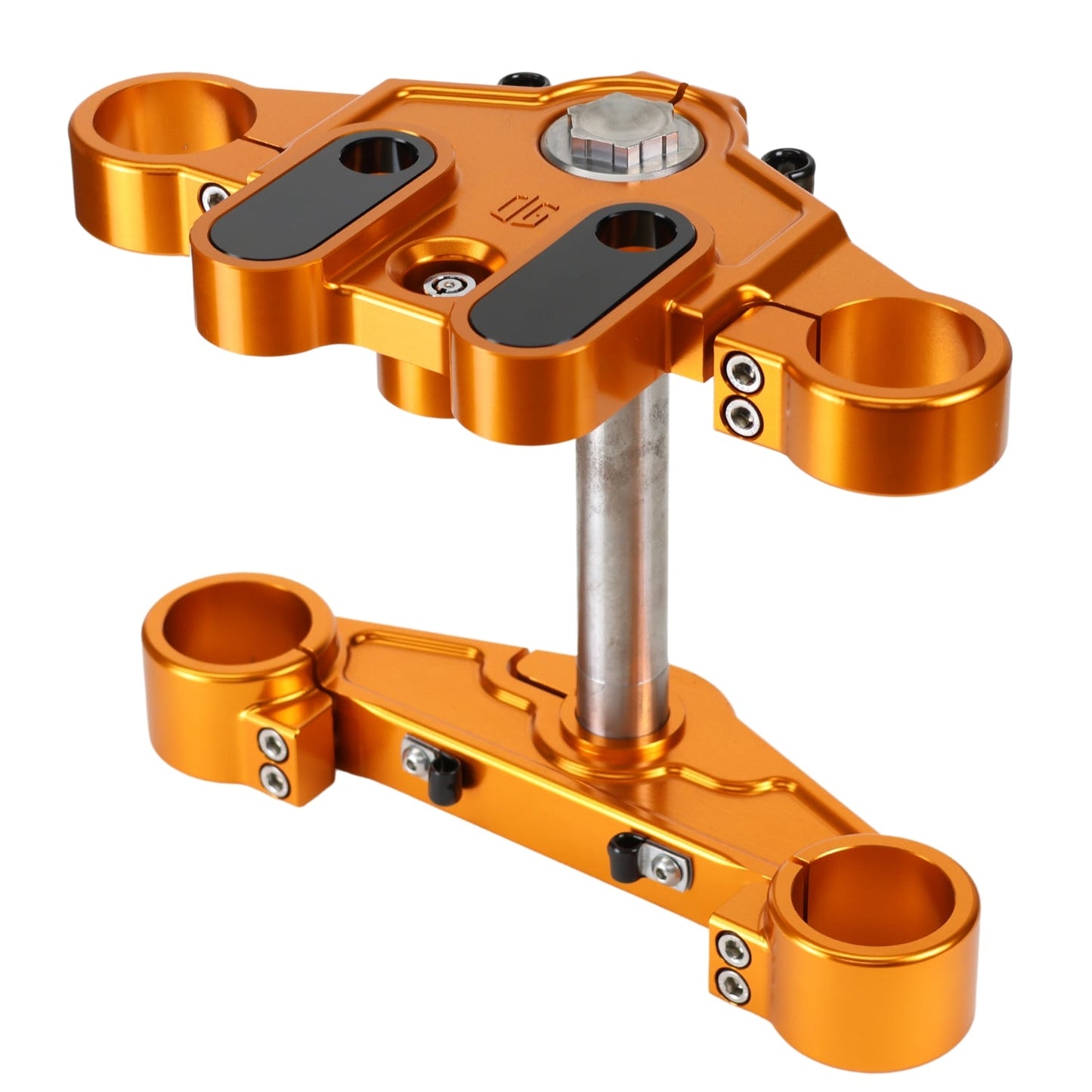

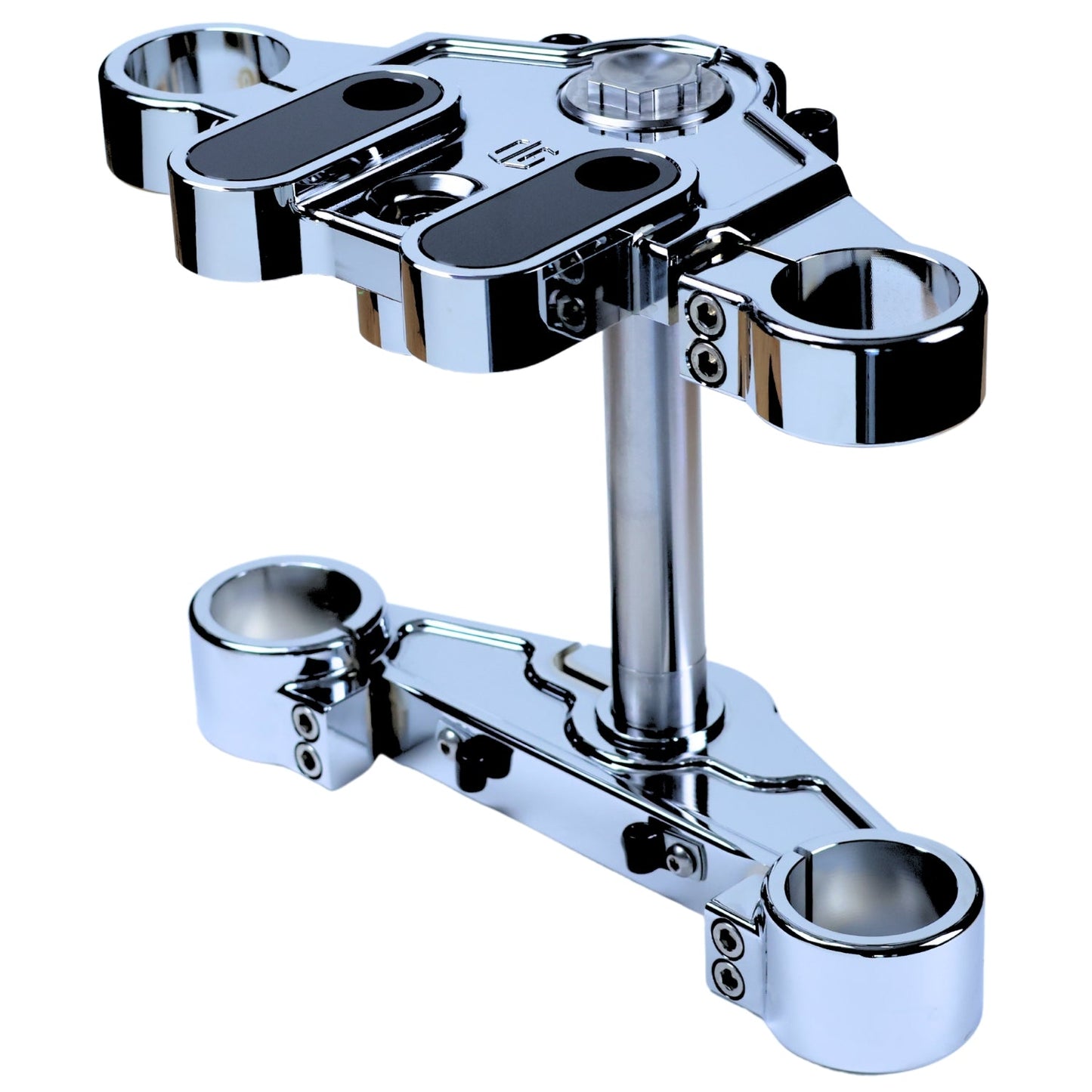

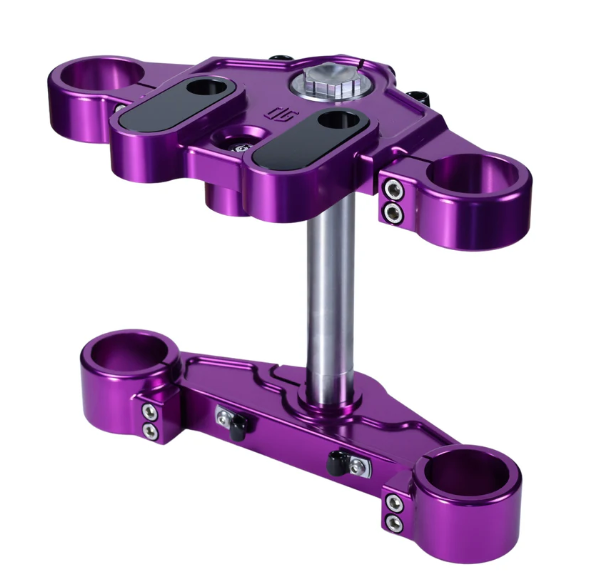

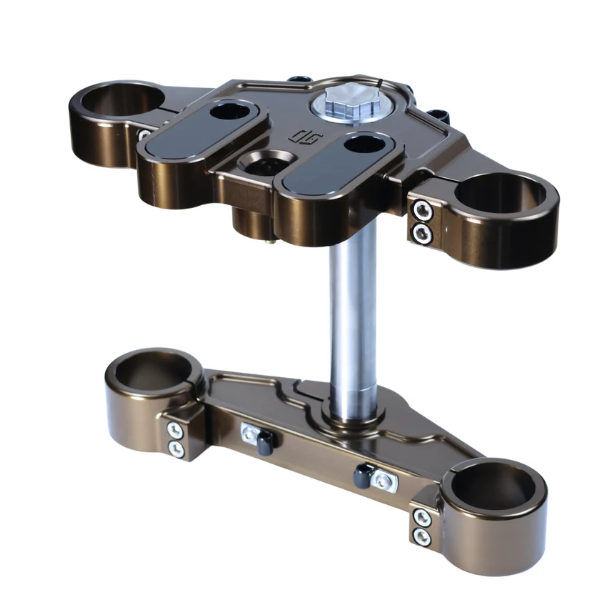

OG 2014-Up Touring Triple Trees kit

OG 2014-Up Touring Triple Trees kit

Regular price $1,059.95 USD
Regular price Sale price $1,059.95 USD
Sale Sold out
Taxes included.

Low stock: 3 left

Color

Our OG 2014-Up Touring Triple Trees kit for Harley-Davidson Touring models is the ultimate performance bagger front-end upgrade. It is engineered to maximize performance & rigidity featuring taller fork tube clamping sections and a thicker cross-section over the stock trees.


It will allow you to set your Risers exactly where you want them with three mounting location options; Stock, +1'' & +2'' pullback towards the rider (+1” Adapters sold separately).


Also features pocketed key lock, wire & brake line(s) management clamps for that clean install and factory look. This premium Top Tree kit will also fit on FL with batwing fairing & Road King models using our Batwing Fairing Clamps (sold separately). Uses standard FL bushingsAvailable in all colors including chrome finishes.


*2014-2023 FL models with batwing fairing will need to run +2'' pullback risers position to clear the navigation screen and stereo.


**For 2014-2023 models. If your bike still has the OEM Ignition switch/Fork lock, you will need to have your bike flashed with the “keyless CVO feature” at your local shop prior to starting the installation.


***Risers bushings are required for this kit and sold separately.


Features




  • Precision CNC machined 6061 T6 aluminum.

  • Stem axle & nut machined from 4140 Chromoly Steel for superior strength.

  • Designed to match the OEM rake angle and triple tree offset ensuring a straightforward installation and maximizing performance.

  • Hard Anodized & Chrome finishes.

  • Machined OG logo.

  • Uses standard FL bushings

  • Stainless steel hardware included.


  • Includes two Wire management clamps (one on both sides).


  • Includes two brake line(s) management clamps.

  • Supplied with a lock and key to keep the fork lock feature.


  • Innovative reversible Risers mounting Block allows three riser positions; stock, +1'' or +2” pullback towards the rider. +1” Adapters are sold separately.

  • Fits all 2014-2023 49mm Touring models. FL with batwing fairing will need our Batwing Fairing Clamps sold separately.


Fitment



  • Fits all 2014-2023 with 49mm front-end Touring models.

  • Fits 2024 to present Road Glide models with 49mm front-end.

  • Will not fit 2023 CVO models equipped with an inverted front end.

  • 2014-2023 FL with batwing fairing & Road King models will need our Batwing Fairing Clamps sold separately.


  • Will not fit 2024 Street Glide models. We still need to figure out the fairing supports on this specific model. Once done we will update our fitment.


*2014-2023 FL models with batwing fairing will need to run +2'' pullback risers position to clear the navigation screen and stereo.


**For 2014-2023 models. If your bike still has the OEM Ignition switch/Fork lock, you will need to have your bike flashed with the “keyless CVO feature” at your local shop prior to starting the installation.


Installation



Click here for installation instructions
