Dyna Swingarm 00-17 - Machined
Brake Mounting Kit
Axle Size
Pivot Shaft Size
- Free shipping on this part
- Returns and exchanges: see our policy
- Questions? Call 715-235-3659 or chat with us on the site.
Description
Brock's Performance Dyna Swingarm 00-17 - Machined
If you're building a Performance Dyna, then we have the perfect swingarm for you!
- Handcrafted 6061-T6 aluminum extended swingarm
- Proprietary custom extrusion made exclusively for Brock's Performance
- Adjustable wheelbase, from stock location up to 3 inches over
- 3-position shock mounts allow flexibility in ride height (stock, -1”, -2”)
- Designed for use in high-power, high-torque applications
- Includes centerless ground 4130 Chromoly axle
(choose from 3/4”, 25mm, 1”, or 28mm axles) - Reversible billet aluminum axle adjusters for easy wheel adjustments
- Select from one of two caliper mounting options:
Undermount - For Aftermarket Calipers - OEM - For using the OEM Dyna Caliper and Mount
(select the correct axle size for your caliper mount) - PTFE® lined spherical bearings from Worldwide Bearings preinstalled
- Select spacer size for the model year Dyna:
11/16” - Model Years 2000-2005

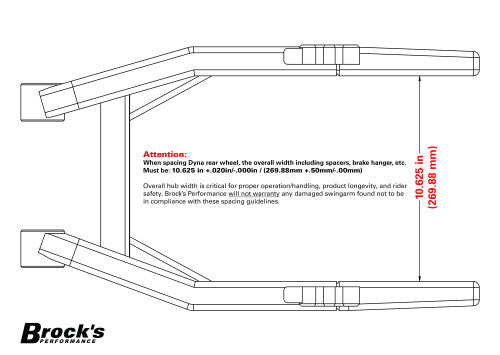

3/4” - Model Years 2006-2017 - Interior swingarm width measures 10 5/8” at the axle
- The total weight of swingarm, hardware, and axle is 14.78 lb. (6.70 kg)
(see the 'Technical' tab for details) - Designed, machined, and assembled in the USA
- Burnished raw aluminum finish
- See 'Technical' tab for installation information
- Click here to view installation information
- Click here to view pivot bolt stack-up engineered drawing
- Overall hub width is critical for proper operation/handling, see 'Technical' tab for important information regarding installation
Fitment
Fits Harley-Davidson Dyna Models
Not sure it fits your bike? Call 715-235-3659 or chat with us on the site and a tech can confirm it with you.
Specifications & Installation
| Brand | Brocks Performance |
|---|---|
| Product type | Swingarm |
| Brake Mounting Kit | For OEM Mount, Radial Mount |
| Axle Size | 3/4", 1", 25MM |
| Pivot Shaft Size | 3/4" - Fits 06-17, 11/16" - Fits 00-05 |
