12" Remote Reservoir Dyna Shocks

$1,699.99

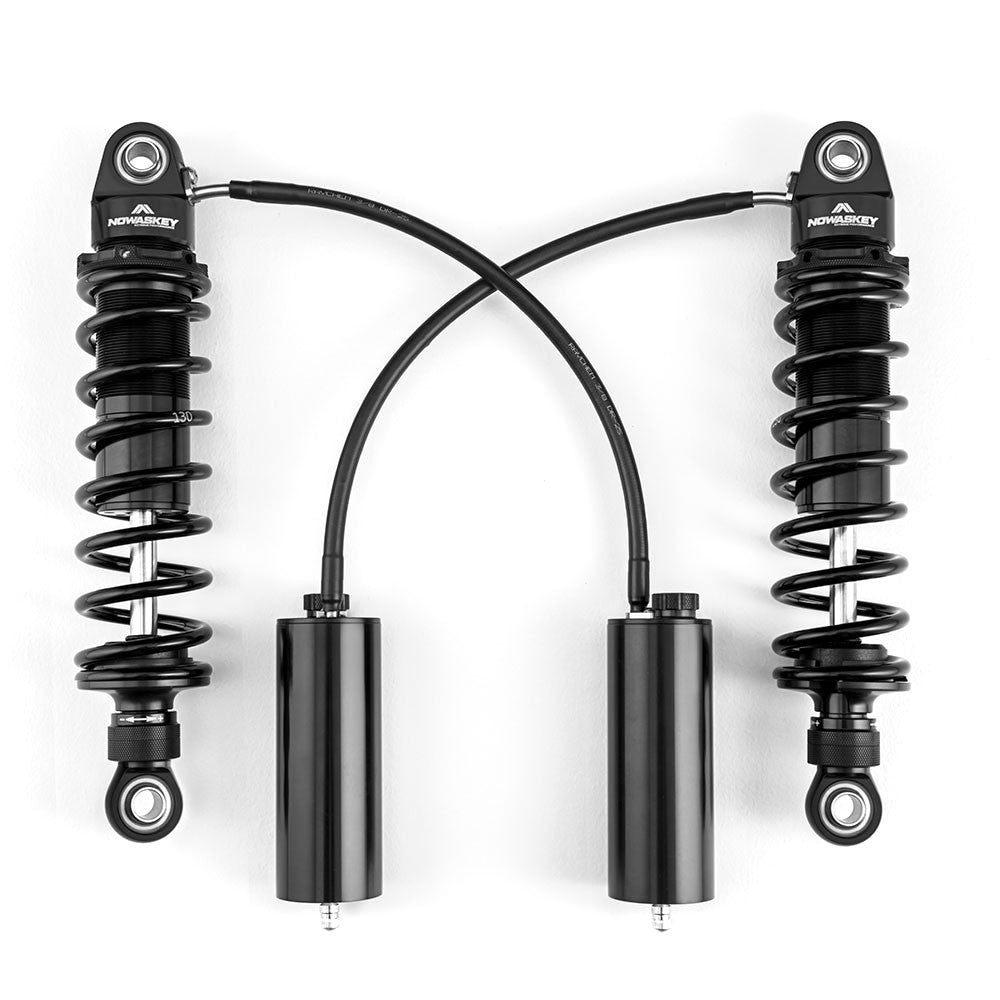

  • Remote reservoir shocks for Harley-Davidson for touring motorcycles pair.
  • Remote reservoir shocks for Harley-Davidson for touring motorcycles top mount.
  • Remote reservoir shocks for Harley-Davidson for touring motorcycles reservoir.
  • Remote reservoir shocks for Harley-Davidson for touring motorcycles bottom mount.
  • Shock spring rate chart.
Select a Spring Rate
$1,699.99
$1,699.99 $1,699.99
Tax included. Shipping calculated at checkout.
Out of stock

12" Remote Reservoir Dyna Shocks By Nowaskey | Made in the USA

**DUE TO HIGH DEMAND and our build-to-order process, please allow 6-8 weeks for your suspension to be completed and shipped.**

Compatible Years/Models: (1999 to 2017) Harley-Davidson® Dyna Models

Spring Rate Guide

1999-2017 Dyna Models
115 Spring - Light
130 Spring - Medium
140 Spring - Heavy
150 Spring - Stunt

If you have any questions about spring rate please feel free to send us an email to Info@Nowaskey.com and we will be happy to answer any questions you may have.

View and download the Installation & Tuning Guide

Designed for the Harley-Davidson® Dyna enthusiast who expects the ultimate in ride performance. Most importantly, experience exceptional handling, unrivaled tunability, and ride performance. Nowaskey® 12 inch Remote Reservoir Rear Shocks are built for every riding style from the aggressive stunt-rider to the long-distance rider. For example, the on-the-fly tuning instantly adjusts for your riding style, road conditions, and varying payload. Set the sag with the adjustable preload, then fine-tune the response with adjustable compression and rebound damping. Reservoir mounts are not included.

THE NOWASKEY DIFFERENCE
Our suspensions are designed and built to exacting specifications. All of our products are hand-assembled in the USA with American-made materials. Each shock is individually dyno-tuned and mated to its twin for consistent and exceptional performance.

FEATURES

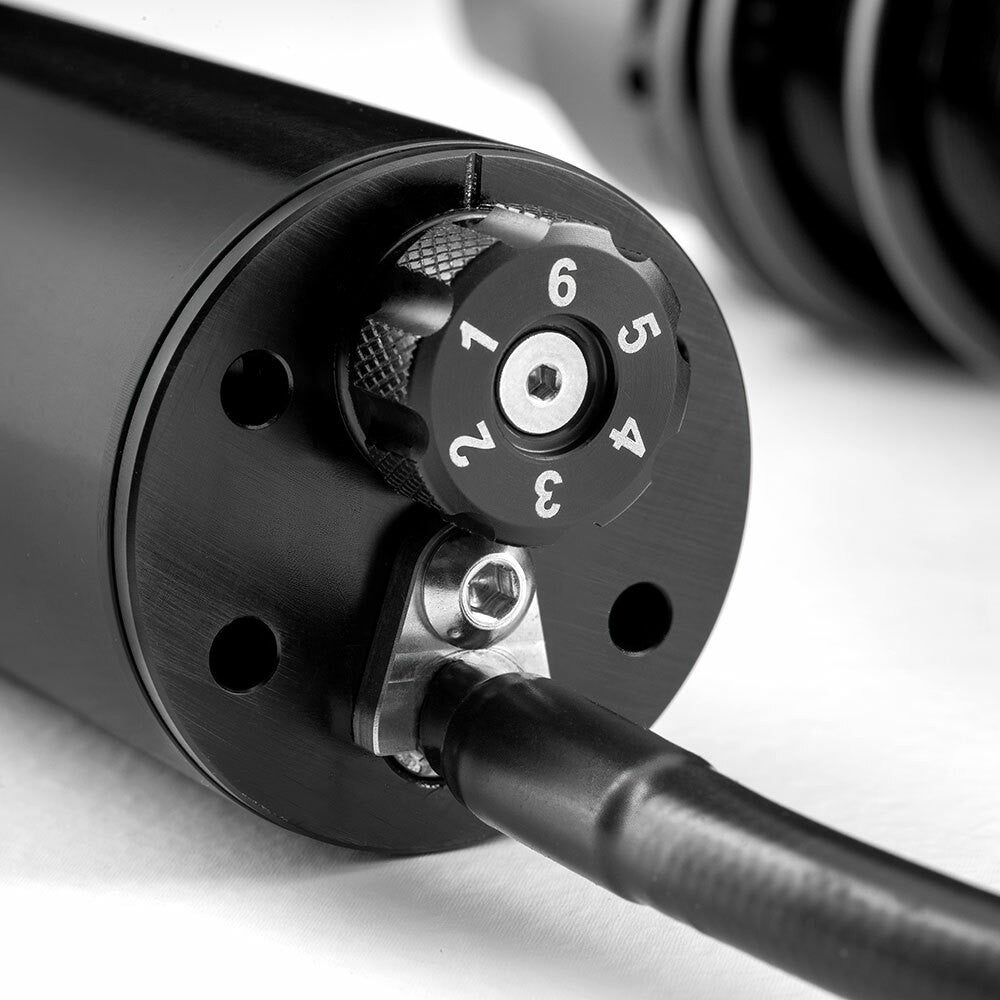

  • Remote reservoir cylinder offers an independent 6-position compression adjustment with a larger nitrogen volume.
  • Steel-braided Teflon® lines utilizing O-ring connection points for 360° of rotation.
  • Proprietary tuned primary piston and valving to allow a more aggressive riding style.
  • Proprietary tuned compression adjuster for a broader range of adjustment on the reservoir.
  • 1" Teflon® lined wide misalignment spherical joints to compensate for misalignment on OEM frame mounts.

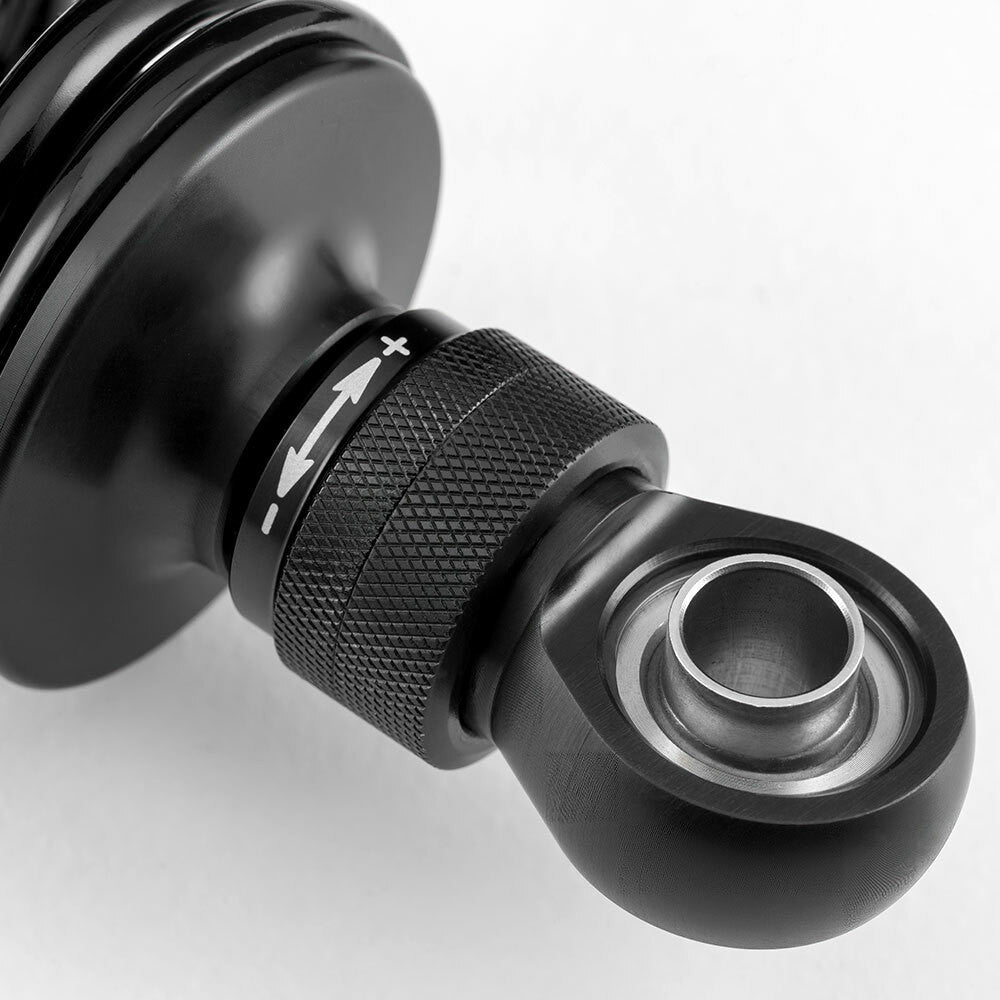

  • Rebound adjustable eyelet O-ring sealed with 80 clicks for ultra-fine tuning.
  • Custom-designed lightweight spring hardware and the ability to adjust the preload by hand.

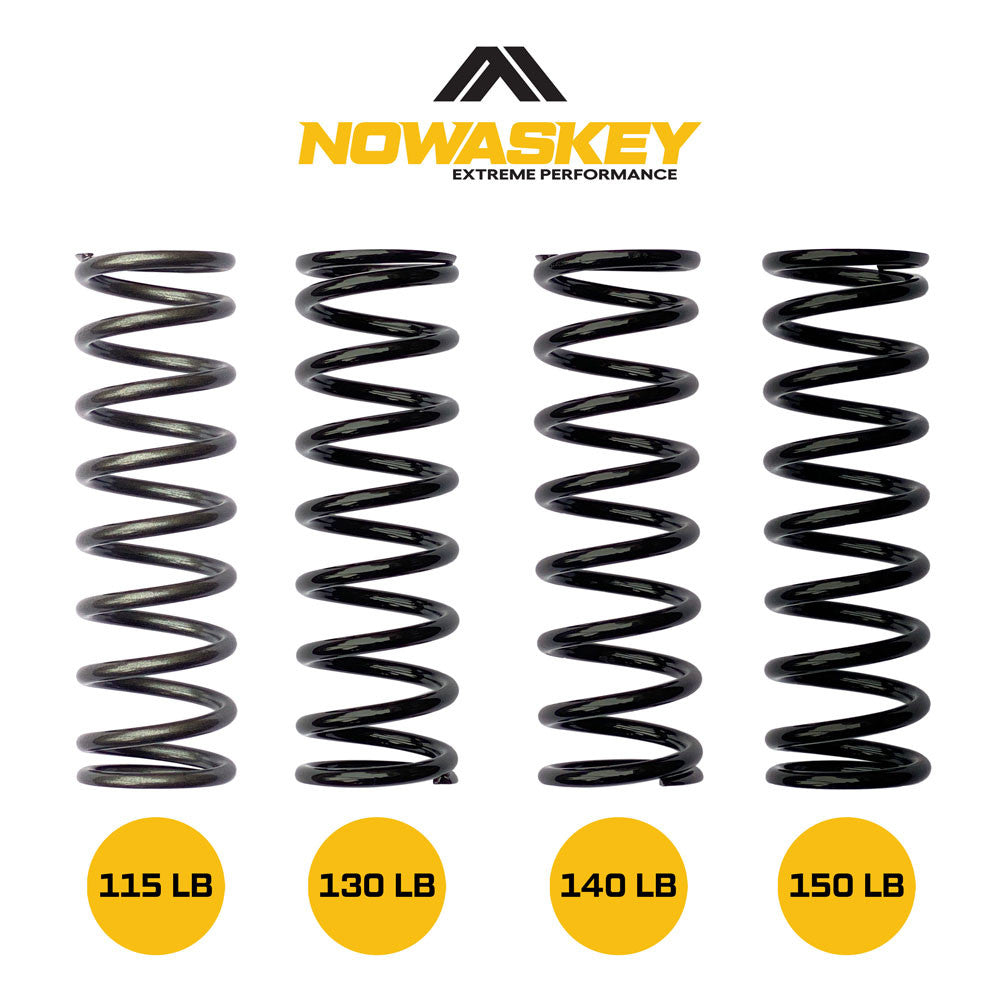

  • (4) spring rates available 115lbs/in, 130lbs/in, 140lbs/in, 150lbs/in (powder coated).
  • Maxima 3.0 WT Full Synthetic Fluid.
  • Preload setting on both shocks allows suspension adjustment based on rider, passenger, and gear weight for optimal performance.
  • Progressive rate springs stiffen quickly for improved handling when elevating to high-performance riding.
  • Exceptional shock length adjustment of +8/-2 mm.
  • High-pressure nitrogen gas-charged design resists shock fading with low-friction shaft/seal head design for smooth performance.
  • Remote reservoir rear shocks are fully serviceable and rebuildable.
  • Limited Lifetime Warranty. See the full Warranty
  • Made in the USA.

Fitment details

  • Low Rider S FXDLS – 2016–2017

  • Switchback FLD – 2012–2016

  • CVO Fat Bob FXDFSE2 – 2010

  • CVO Fat Bob FXDFSE – 2009

  • Fat Bob FXDF – 2008–2017

  • Screamin’ Eagle Dyna FXDSE2 – 2008

  • Screamin’ Eagle Dyna FXDSE – 2007

  • Street Bob FXDB – 2006–2017

  • Super Glide FXD35 (35th Anniversary) – 2006

  • Super Glide Custom EFI FXDCI – 2005–2014

  • Super Glide Custom FXDC – 2005

  • Super Glide EFI FXDI – 2004–2010

  • Low Rider EFI FXDL – 2004–2009, 2014–2017

  • Super Glide Sport EFI FXDXI – 2004–2005

  • Wide Glide FXDWG3 – 2002

  • Super Glide T-Sport FXDXT – 2001–2003

  • Wide Glide FXDWG2 – 2001

  • Wide Glide EFI FXDWGI – 2000–2008, 2010–2017

  • Super Glide Sport FXDX – 1999–2005

  • Super Glide FXD – 1995–2006

  • Dyna Convertible FXDS-CONV – 1995–2000

  • Wide Glide FXDWG – 1993–2006

  • Low Rider FXDL – 1993–2006

  • Dyna Daytona FXDB – 1992

  • Dyna Glide Custom FXDC – 1992

  • Dyna Sturgis FXDB – 1991

See our complete line of Dyna parts.

Let Find the Suspension That's Built for You

Answer a few quick questions, and we’ll match you with the suspension setup that fits your ride, style, and performance goals.

Find My Suspension
