Description

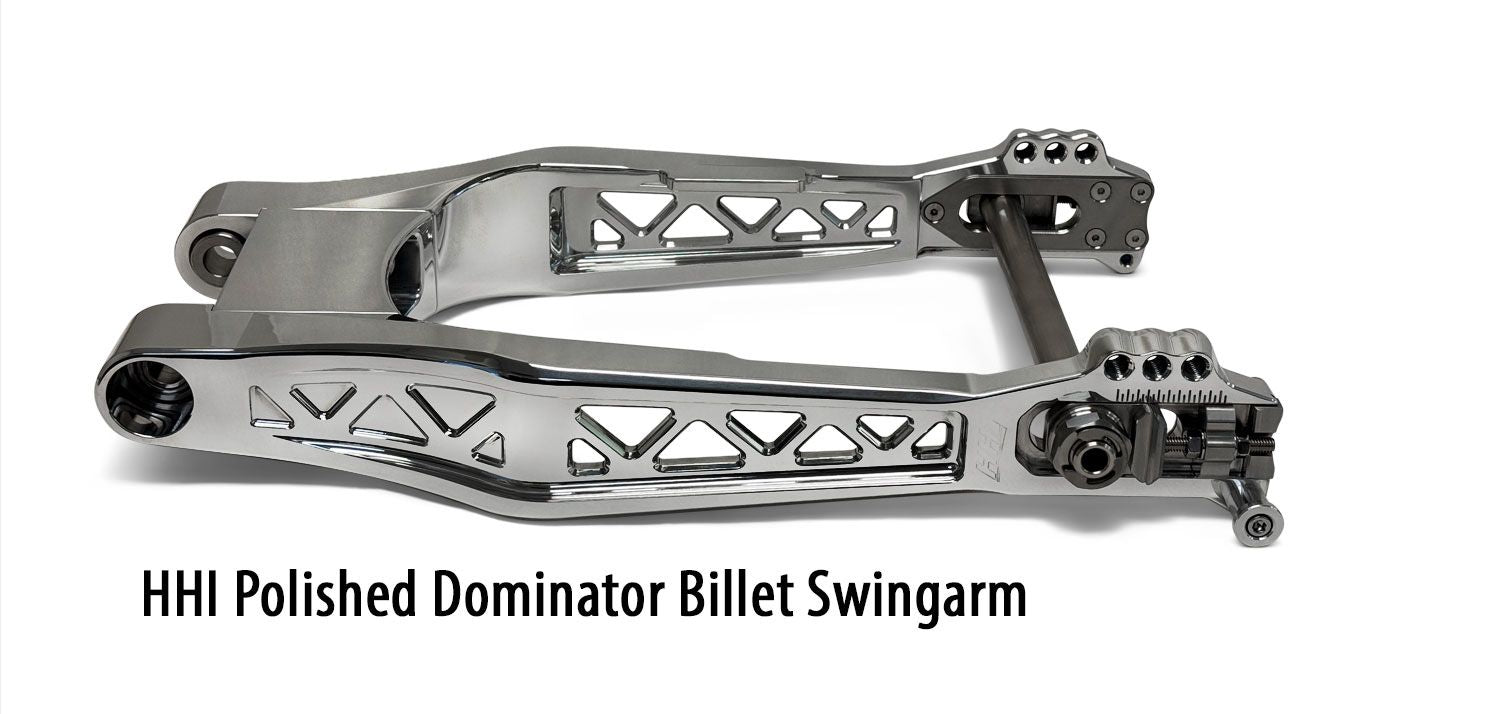

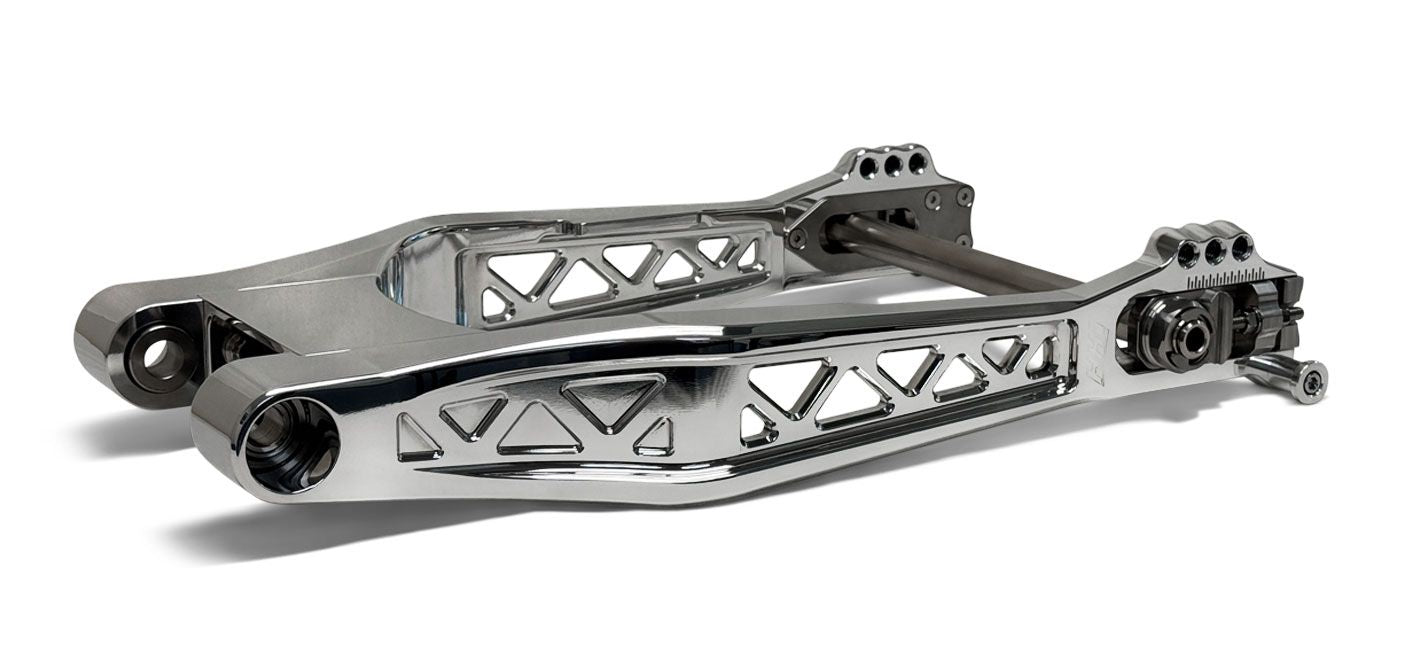

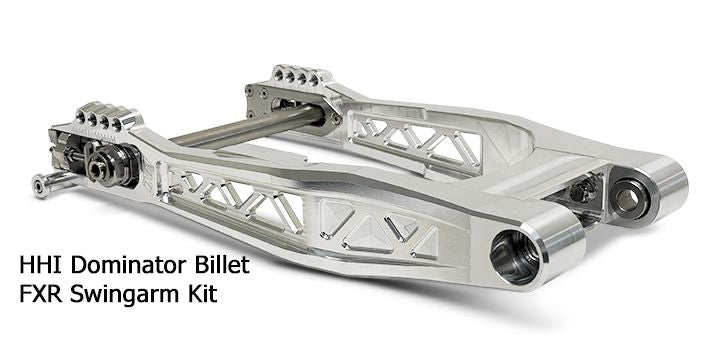

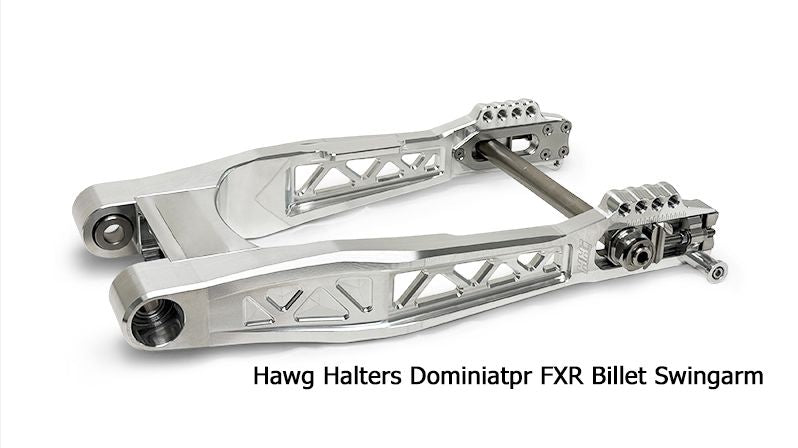

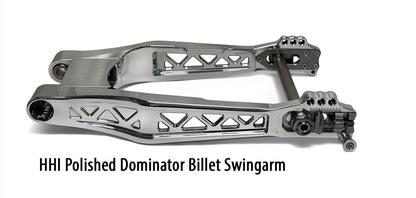

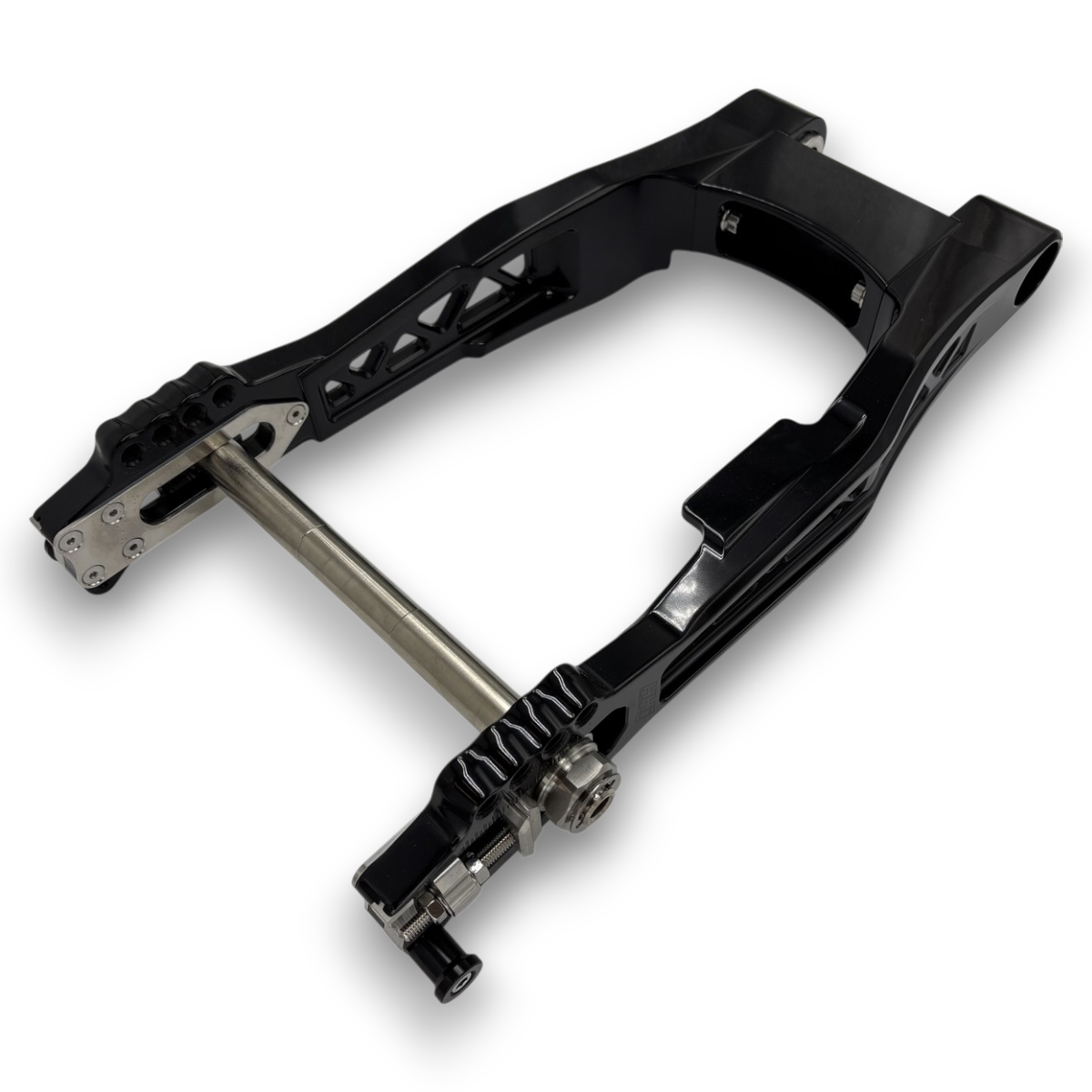

HHI Dominator FXR / Early FL Billet Swingarm Kit
If you're building a Performance FXR or Early FL touring bike, then we have the perfect swingarm for you!
- Swingarm components feature precision machined 6061-T6 billet aluminum, Chromoly and Stainless steel.
- The HHI Swingarm reduces weight by over 20% compared to stock swingarm.
- The Main Swingarm is a three-piece design utilizing a massive interlocking, hi-strength keying feature. Thermal shrink fit of this feature provides precision alignment, maximum strength and permanent construction.
- Assembled with four hi-strength ARP ½” diameter 12 point polished stainless steel large flange bolts.
- Swingarm designed to work with shocks ranging in length from 10" to 15".
- Positive lock adjustable position axle locator system delivers 2 inches of full axle slot adjustment (2.5x greater than stock).
- Keyed axle locator plate eases axle installation.
- HHI Exclusive stainless steel inner swingarm axle protector plates allow for maximum axle installation torque.
- Protector plates prevent damage to swingarm billet inside faces and promotes positive axle position.

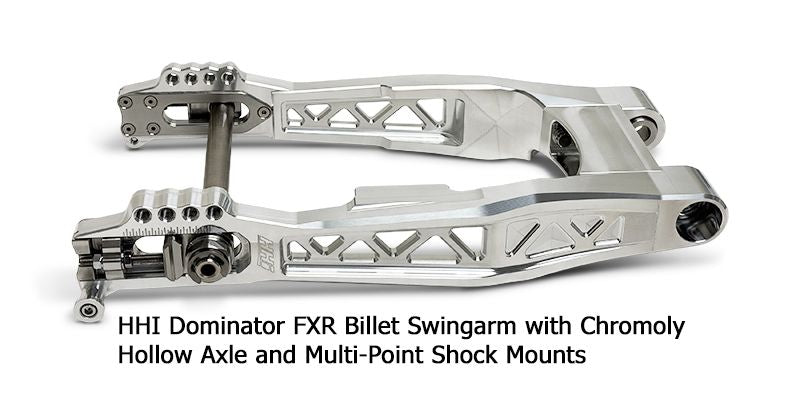

- Multi-point shock mount system that adjusts from stock to +1/2 inch ride height.
- Fits most shock brands without adding offset spacing and longer bolts.
- Extreme strength lightweight Chromoly hollow axle made from 150ksi heat treated medium carbon steel alloy.
- Axle precision machined for close tolerance fit and Nickel Plated for long lasting durability.
- Includes custom machined Stainless Steel 36mm hex axle nuts.
- Stainless steel stock type axle nut retaining clips supplied.
- Integral brake mount designed for 2000-up FL stock caliper and brake line
- Ships fully assembled with pivot bearings and sleeves installed. A complete kit ready for installation.

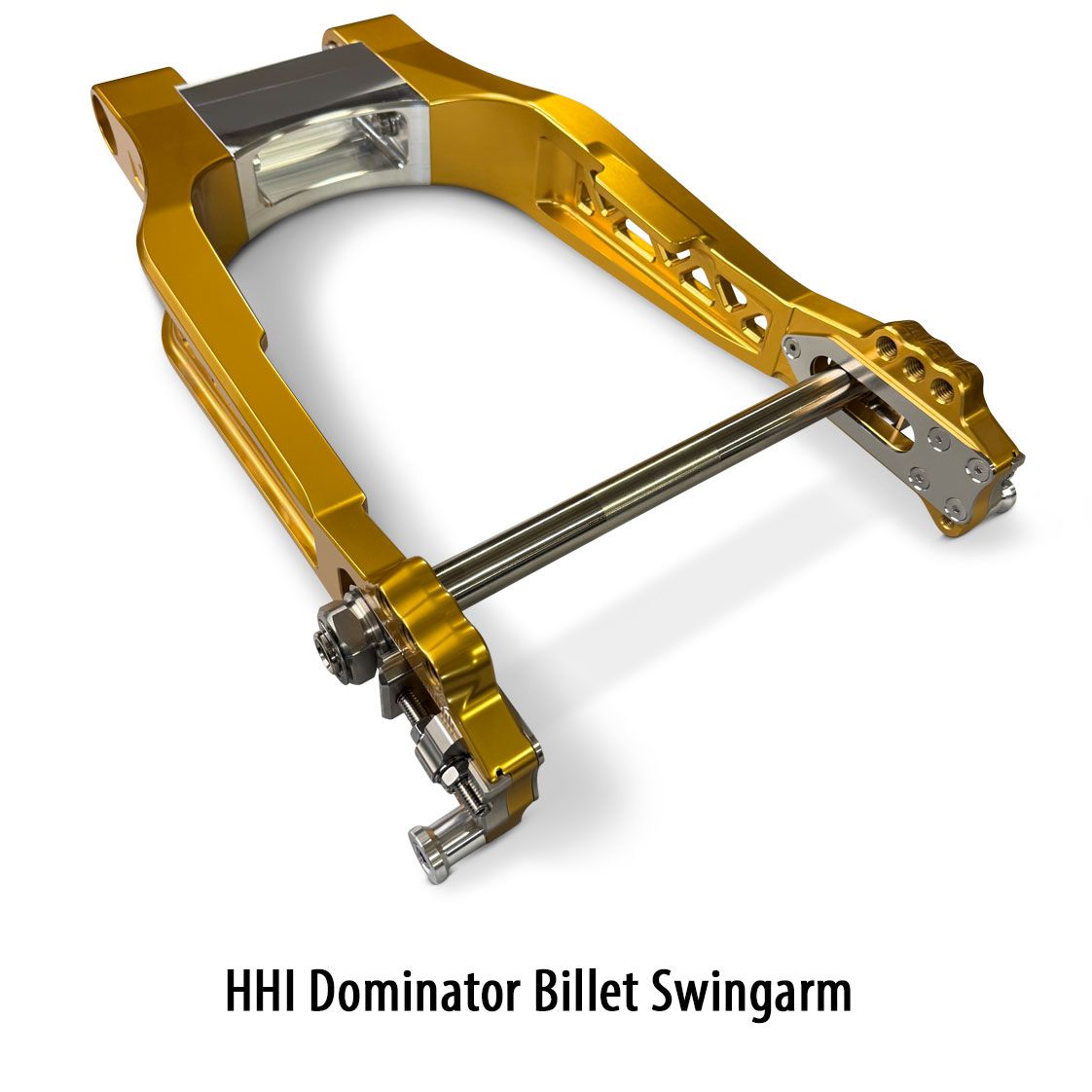

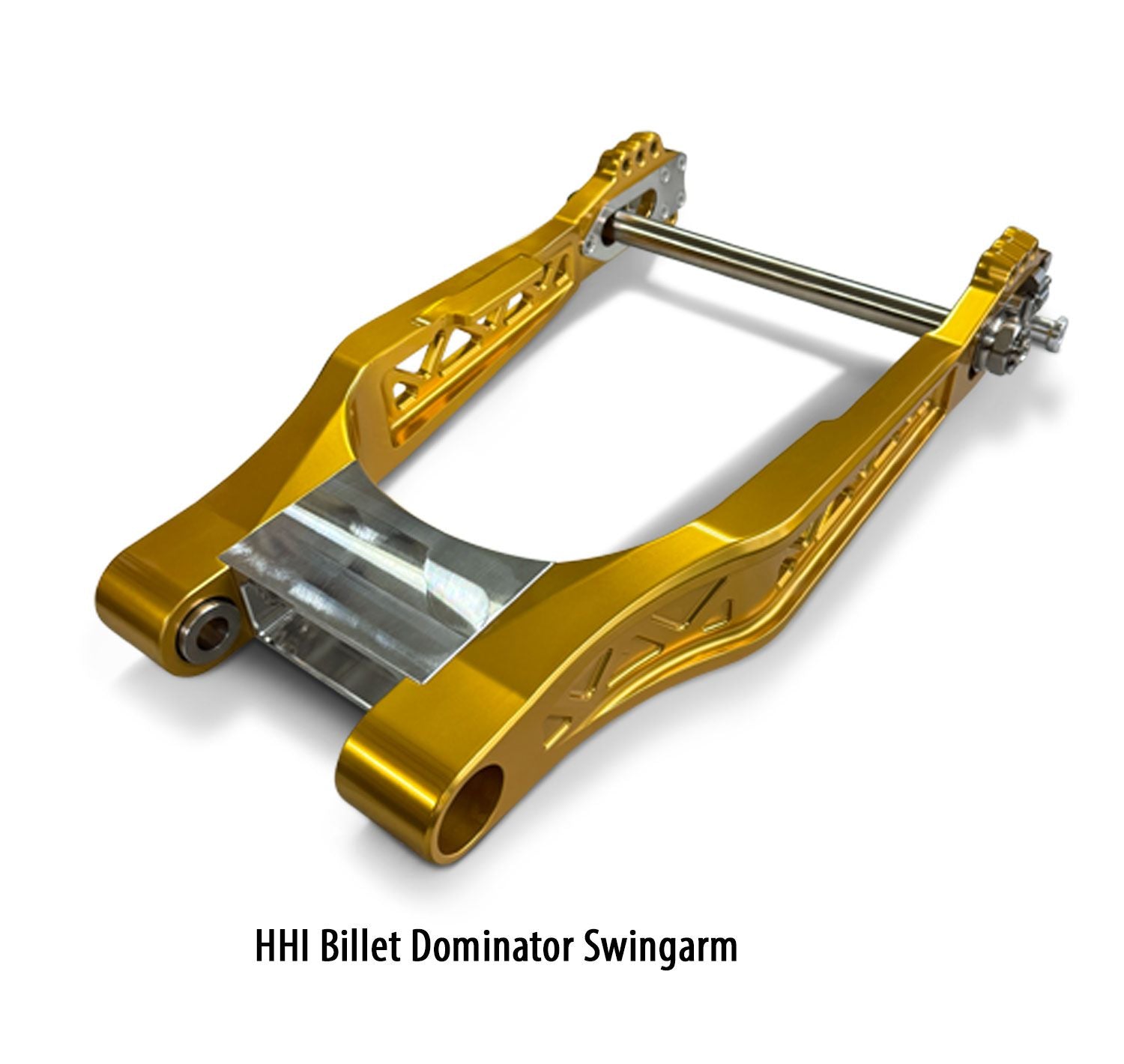

Available in Black, Inca Gold, & Machine finish.
Fitment
- Fits Harley-Davidson Touring Models
- Fits Harley-Davidson FXR Models
Not sure it fits your bike? Call 715-235-3659 or chat with us on the site and a tech can confirm it with you.
Specifications & Installation
| Brand | HHI |
|---|---|
| Part number | Varies by selected option |
| Product type | Swingarm |
| Finish | Machine, Inca Gold, Black |
| Axle Size | 3/4", 1", 25MM |
| Pivot Shaft Size | 3/4" - Late Model, 5/8" - Early Model |
Videos
Want it installed right? Book the Nowaskey Speed Shop or call 715-235-3659.
Questions Riders Ask
Will this fit my bike?
This part is listed for:
- Fits Harley-Davidson Touring Models
- Fits Harley-Davidson FXR Models
Save your bike with Shop by Bike and we check it for you. Not sure? Call or chat with us on the site and a tech can confirm it with you.
What's the part number?
Manufacturer part number SW-FXM0199-AS-1. Our item number is 100169. Part numbers change with the option you pick.
