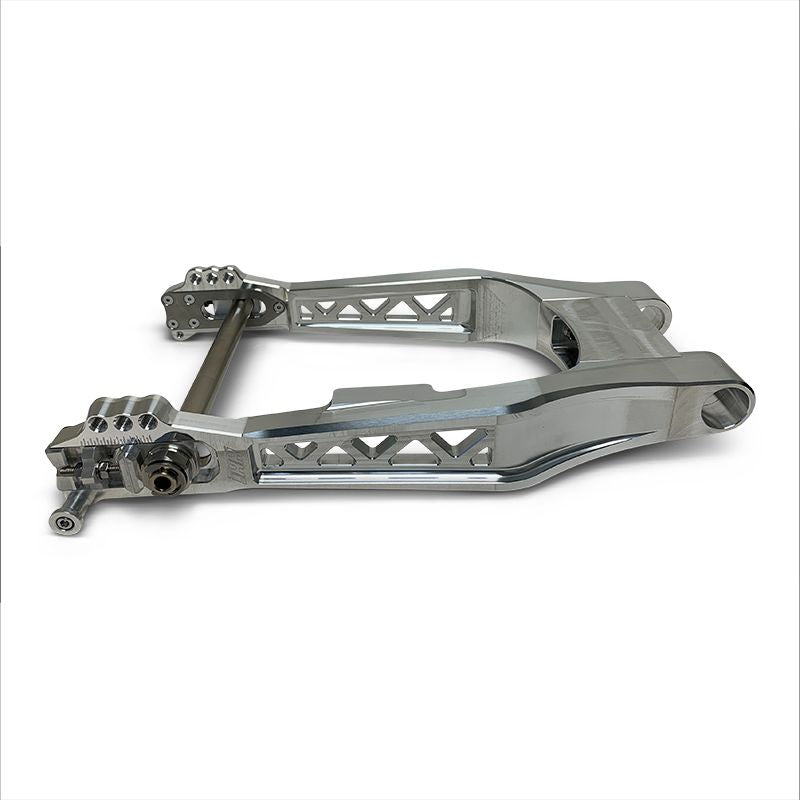

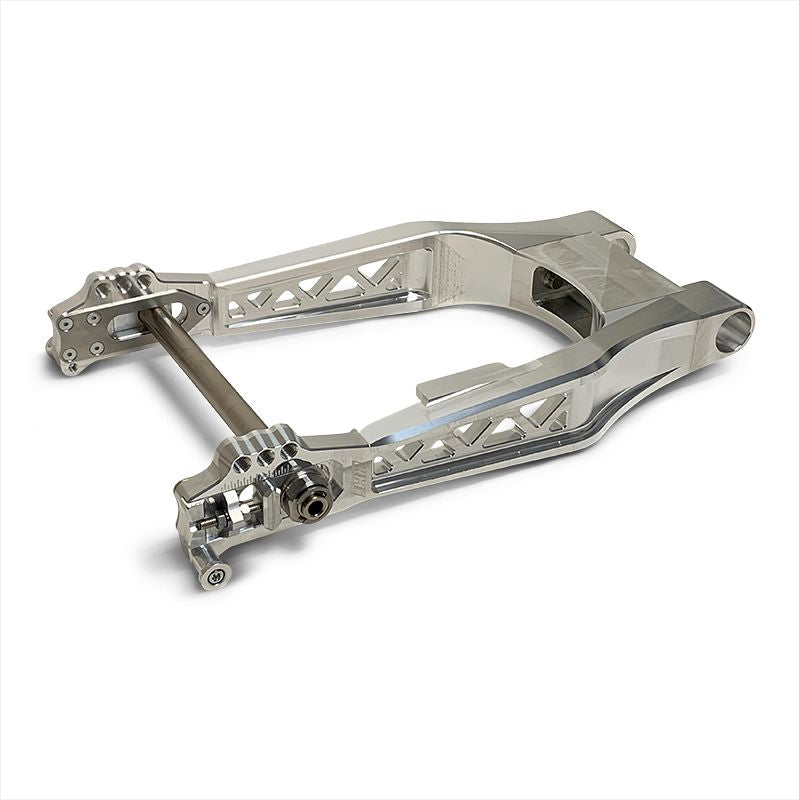

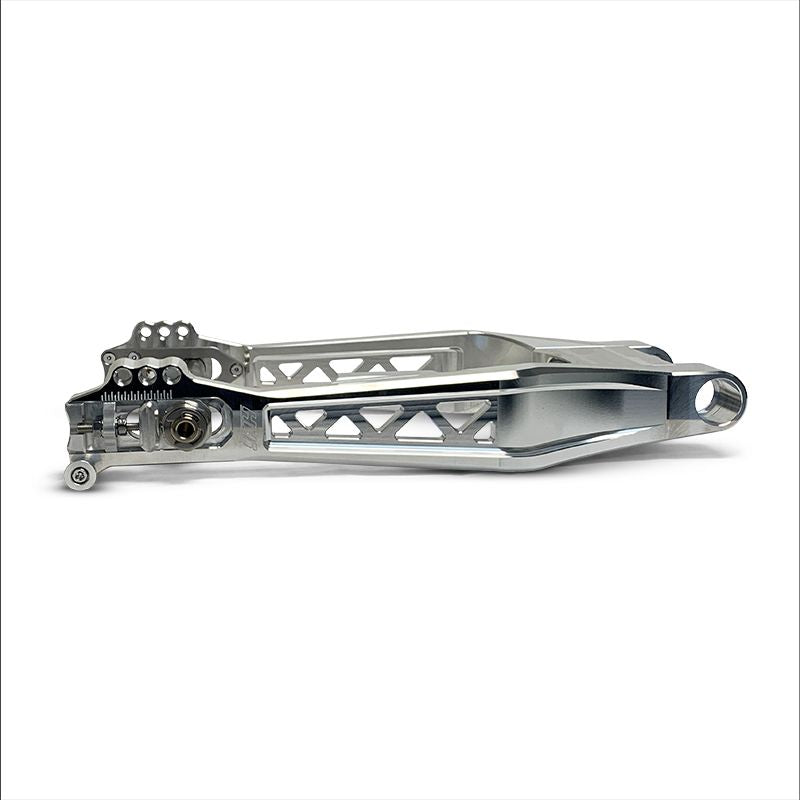

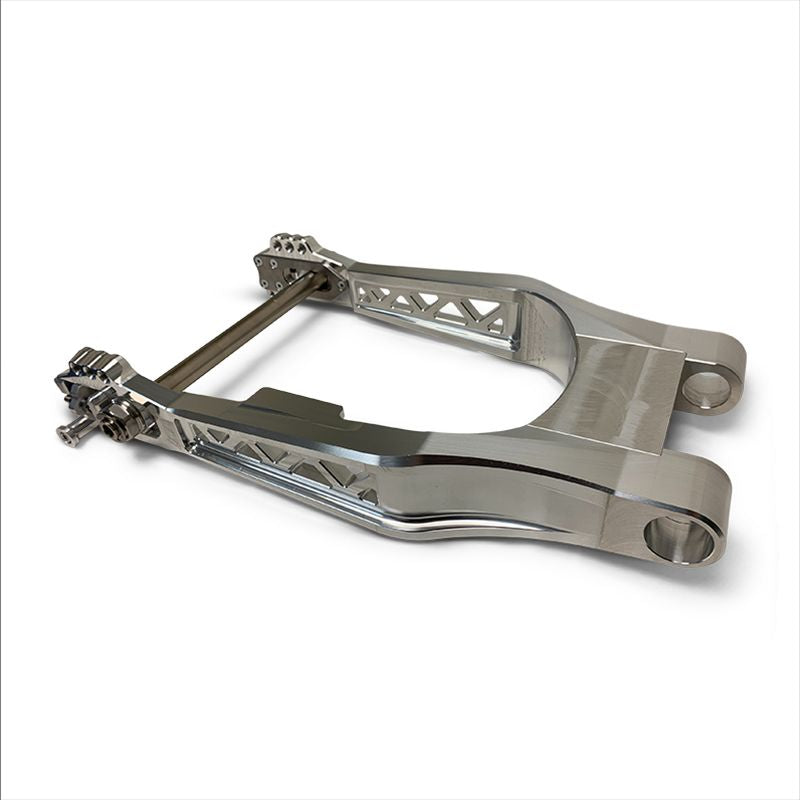

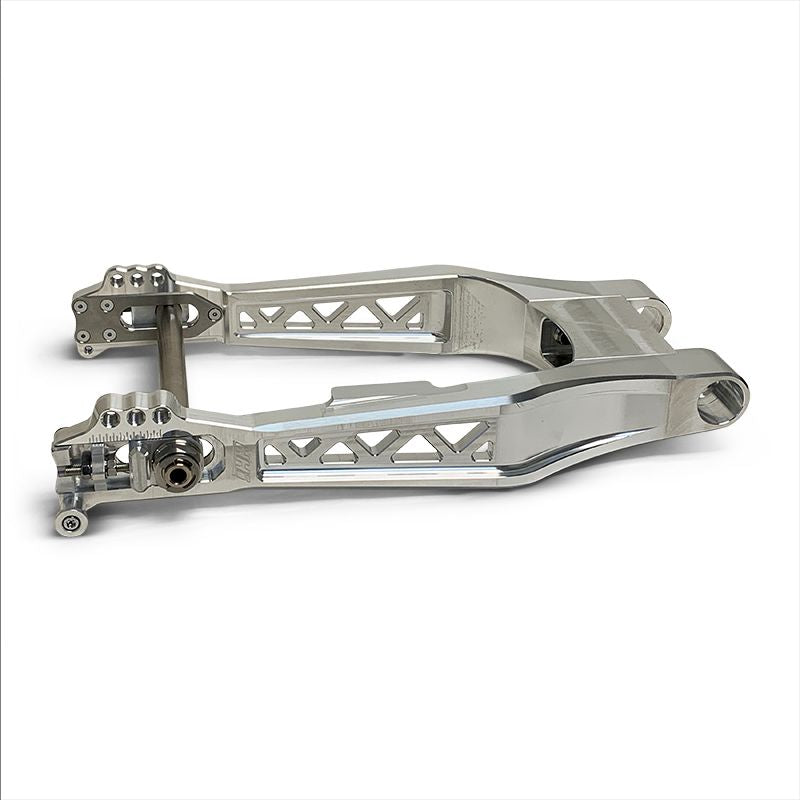

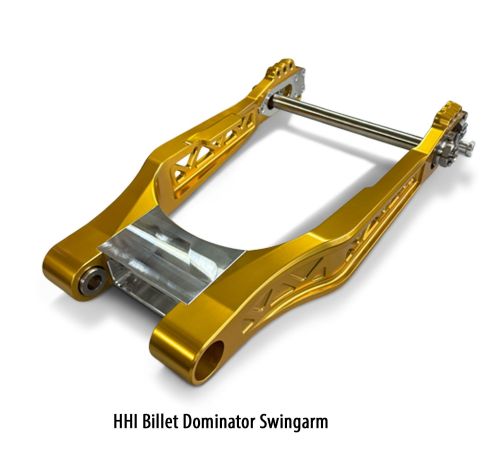

HHI Dominator Swingarm for the Performance Bagger.

All New Billet Swingarm fits ALL H-D Touring models.

Ships fully assembled with pivot bearings and sleeves installed. A complete kit ready for installation.

• Swingarm components feature precision machined 6061-T6 billet aluminum, Chromoly and Stainless steel.
• The HHI Swingarm reduces weight by over 20% compared to stock swingarm.
• The Main Swingarm is a three-piece design utilizing a massive interlocking, hi-strength keying feature. Thermal shrink fit of this feature provides precision alignment, maximum strength and permanent construction.
• Assembled with four hi-strength ARP ½” diameter 12 point polished stainless steel large flange bolts.
• Swingarm designed to work with shocks ranging in length from 10" to 15".

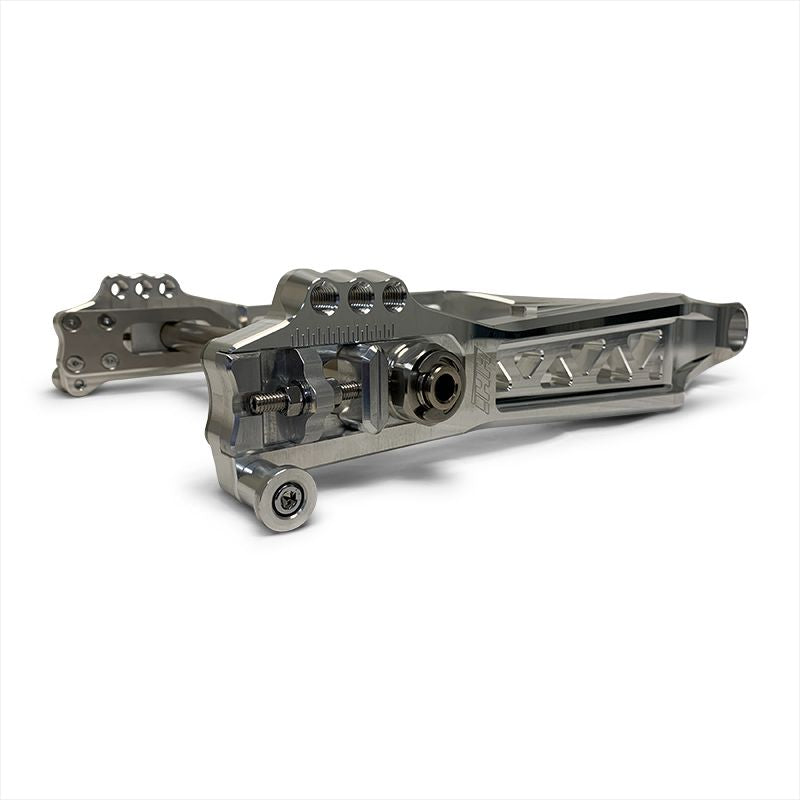

• Positive lock adjustable position axle locator system delivers 2 inches of full axle slot adjustment (2.5x greater than stock).
• Keyed axle locator plate eases axle installation.
• HHI Exclusive stainless steel inner swingarm axle protector plates allow for maximum axle installation torque.
• Protector plates prevent damage to swingarm billet inside faces and promotes positive axle position.
• Multi-point shock mount system that adjusts from stock to +1/2 inch ride height.
• Fits most shock brands without adding offset spacing and longer bolts.
• Extreme strength lightweight Chromoly hollow axle made from 150ksi heat treated medium carbon steel alloy.
• Axle precision machined for close tolerance fit and Nickel Plated for long lasting durability.
• Includes custom machined Stainless Steel 36mm hex axle nuts.
• Stainless steel stock type axle nut retaining clips supplied.
• Integral brake mount designed for 2000-up stock caliper and brake line

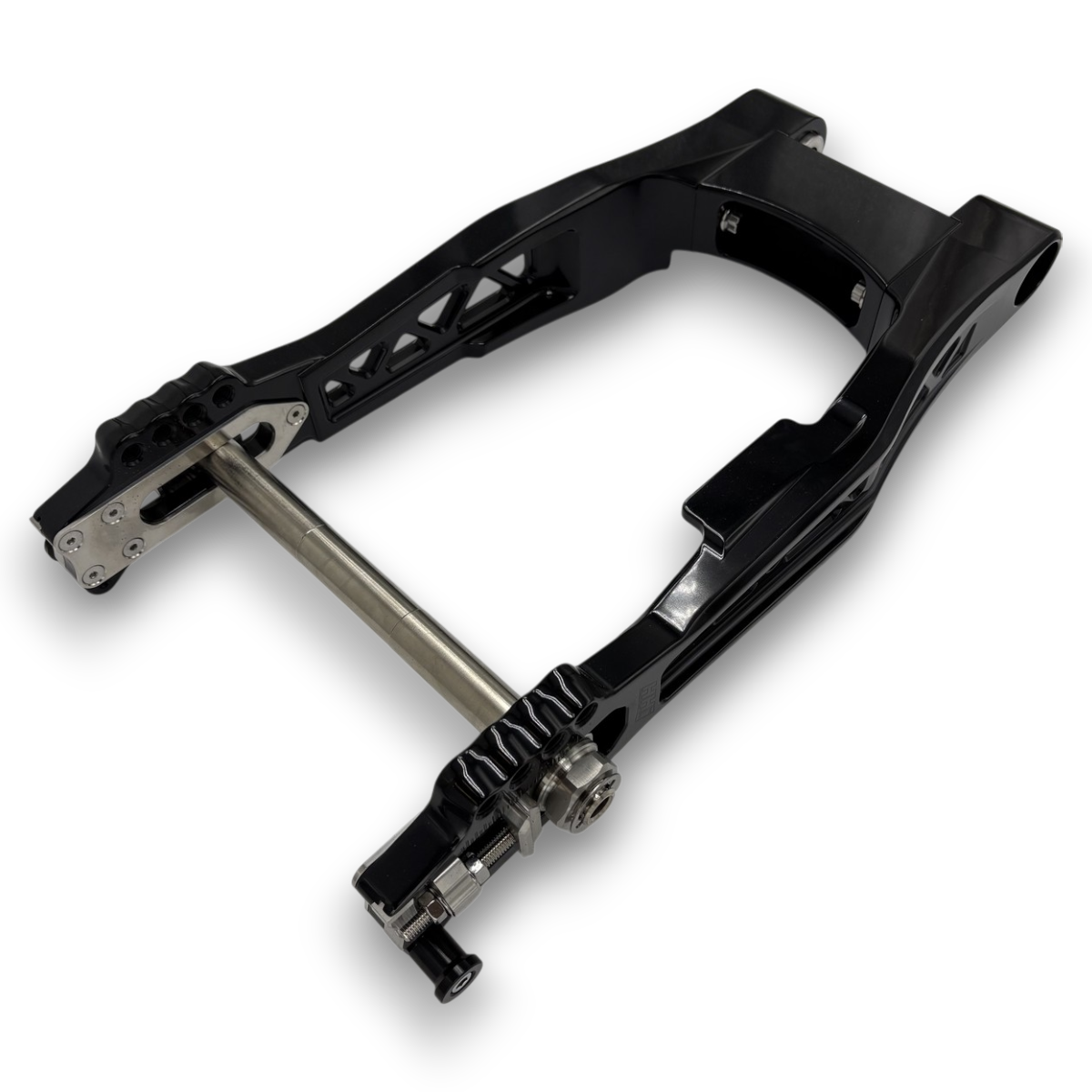

Available in Black, Inca Gold, & Machine finish.

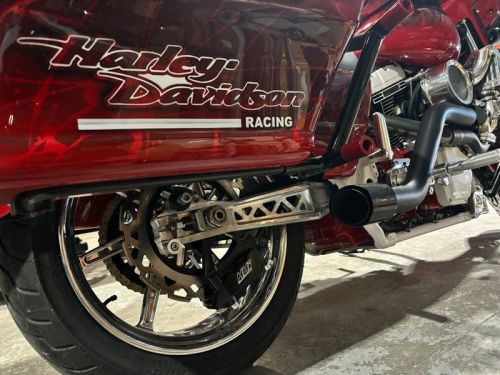

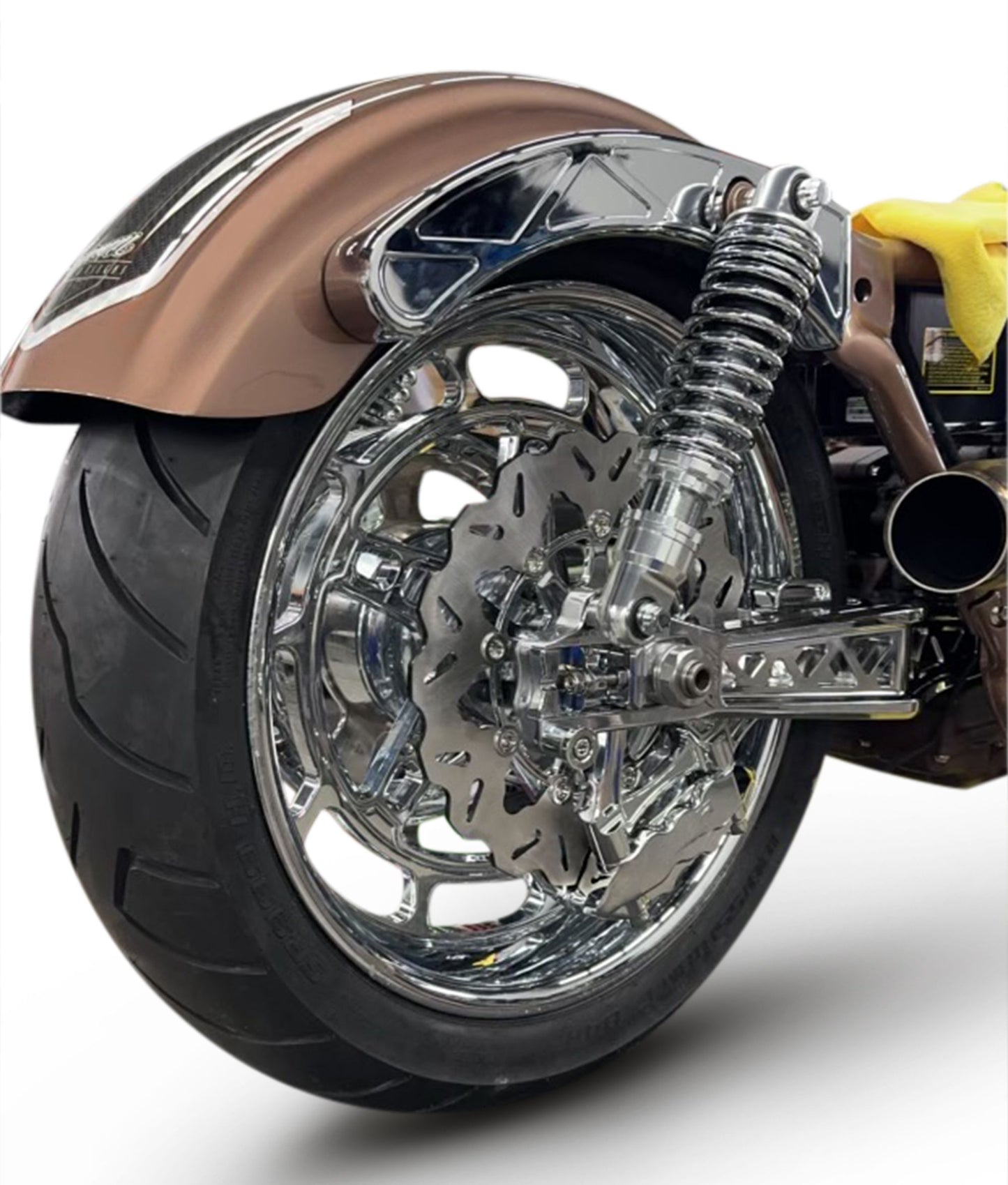

Are you building a Performance Bagger ?

Proudly Made in the USA
