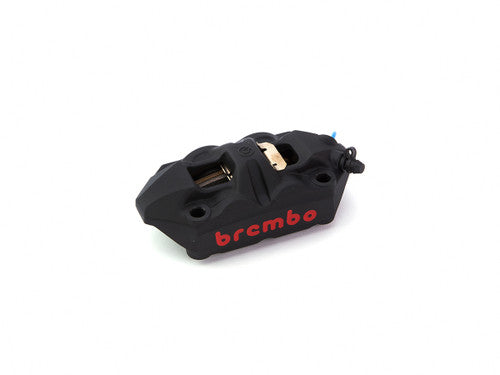

Brembo M4 Right Front Caliper (Radial Mount) Black



For right side single disc front or for right side rear



This monoblock caliper, obtained from a single piece of cast aluminum which employs the most advanced casting and machining technologies in order to obtain a solid caliper body which is ultra light and has excellent stiffness and precision operating values. The hydraulics were given particular attention, as was the shape of the caliper body, both of which were the focus of technical fine-tuning. The caliper body, which houses four 34 mm diameter pistons, is characterized by significant stiffness values which are obtained thanks to the characteristic triple bridge shape.

With these cast monoblock calipers Brembo makes the technology which has been successfully employed in MotoGP available to all enthusiasts. This is technology which allows the caliper body to be obtained from a single piece of cast aluminium, thereby guaranteeing optimum stiffness.

The Brembo logo is embossed and hand painted in classic Brembo Red. The product includes sintered brake pads which represent the absolute best quality available on the market.

Position: Front Right

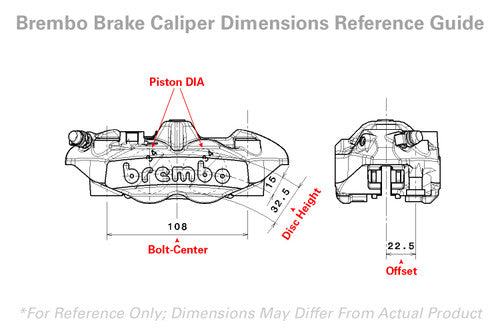

Bolt-Center: 108mm

Caliper Body: Monoblock

Piston DIA: 34mm

Piston Quantity: 4

Piston Material: Aluminum

Disc Height: 32-34mm

Caliper Material: Cast Aluminum

Finish: Black Hard Anodized

Weight (w/o pads): 1.76 lb. (800g)

Brake Pads: Included (HH Rated Sintered)

Offset: 22.5mm

Brake Fluid: DOT 4

Note: Single Caliper (banjo bolt and washers not included)

Brembo P/N: 120A39760
