Nowaskey

16" Remote Reservoir Shocks

16" Remote Reservoir Shocks

Regular price $1,899.99 USD
Regular price Sale price $1,899.99 USD
Sale Sold out
Taxes included.

Select a Spring Rate

1,899 Entries towards winning our performance giveaway bike!

IMPORTANT NOTICE: Race Use Only. Not intended for street applications.

Compatible Years/Models: (1999 to Present) Harley-Davidson® Touring Models

Spring Rate Guide
1999-2008 Touring Models
115 Spring - Solo under 250lbs*
130 Spring - Standard 2-up riding
140 Spring - Heavy Duty over 500lbs
*115 Spring is Powder Coated Gray.

2009-Present Touring Models
115 Spring - Solo Lightweight*
130 Spring - Solo under 250lbs
140 Spring - Standard 2-up riding
150 Spring - Heavy Duty over 500lbs
*115 Spring is Powder Coated Gray.

View and download the Installation & Tuning Guide

Designed for the Harley-Davidson® racing enthusiast who expects the ultimate in performance. Most importantly, experience exceptional handling, unrivaled tunability, and ride performance. Nowaskey® 16 inch Remote Reservoir Rear Shocks are built for aggressive riding in a racing environment only. On-the-fly tuning instantly adjusts for your racing style and set-up. Set the sag with the adjustable preload, then fine-tune the response with adjustable compression and rebound damping. Reservoir mounts are not included.

THE NOWASKEY DIFFERENCE
Our 16 inch bagger remote reservoir suspensions are designed and built to exacting specifications. All of our products are hand-assembled in the USA with American-made materials. Each shock is individually dyno-tuned and mated to its twin for consistent and exceptional performance.

FEATURES

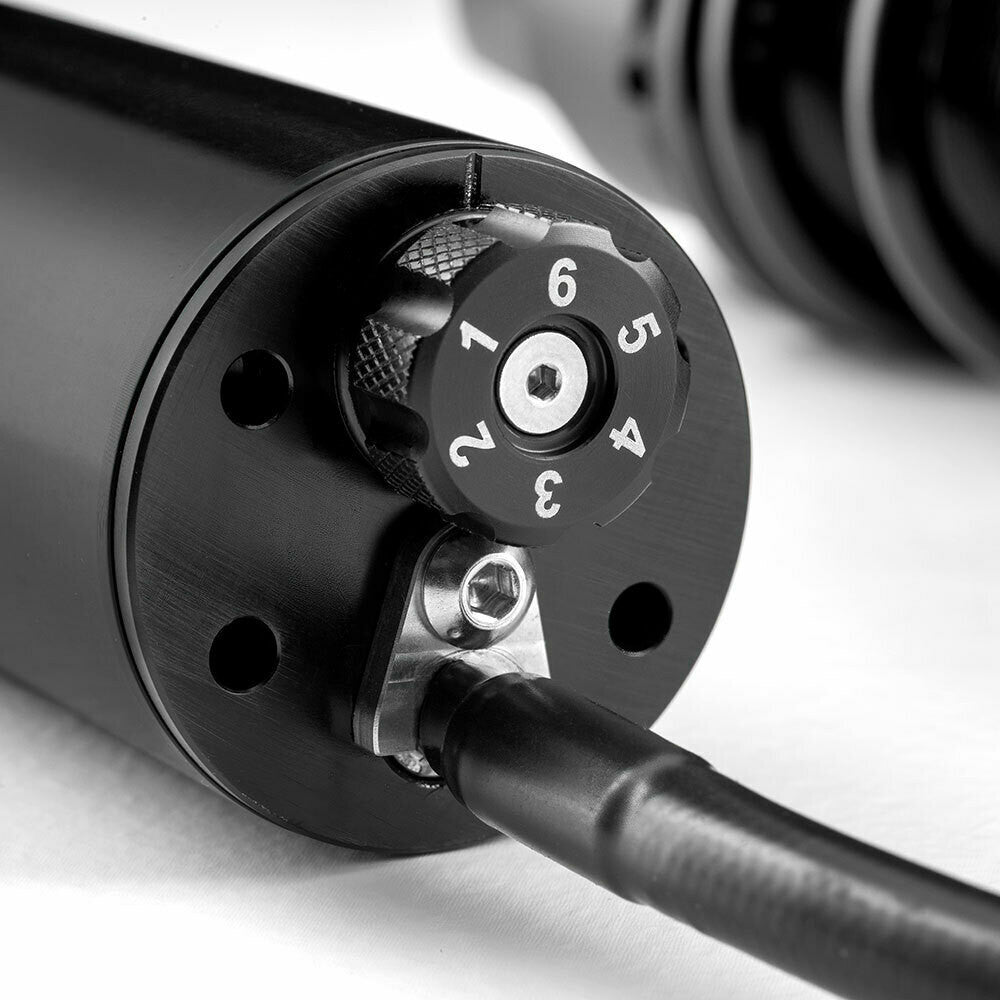

  • Remote reservoir cylinder offers an independent 6-position compression adjustment with a larger nitrogen volume.
  • Steel-braided Teflon® lines utilizing O-ring connection points for 360° of rotation.
  • Proprietary tuned primary piston and valving to allow a more aggressive riding style.
  • Proprietary tuned compression adjuster for a broader range of adjustment on the reservoir.
  • 1" Teflon® lined wide misalignment spherical joints to compensate for misalignment on OEM frame mounts.
  • Rebound adjustable eyelet O-ring sealed with 80 clicks for ultra-fine tuning.
  • Custom-designed lightweight spring hardware and the ability to adjust the preload by hand.
  • (4) spring rates available 115lbs/in, 130lbs/in, 140lbs/in, 150lbs/in (powder coated).
  • Maxima 3.0 WT Full Synthetic Fluid.
  • Preload setting on both shocks allows suspension adjustment based on rider, passenger, and gear weight for optimal performance.
  • Progressive rate springs stiffen quickly for improved handling when elevating to high-performance riding.
  • Exceptional shock length adjustment of +8/-2 mm.
  • High-pressure nitrogen gas-charged design resists shock fading with low-friction shaft/seal head design for smooth performance.
  • 16" Remote reservoir rear shocks are fully serviceable and rebuildable.
  • No Warranty.
  • Made in the USA.

See our complete line of Performance Products.
