14" Remote Reservoir Sportster Shocks - Lifted Height

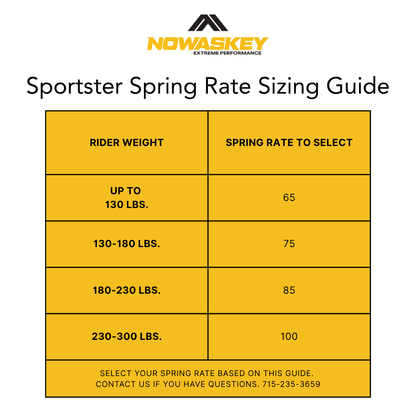

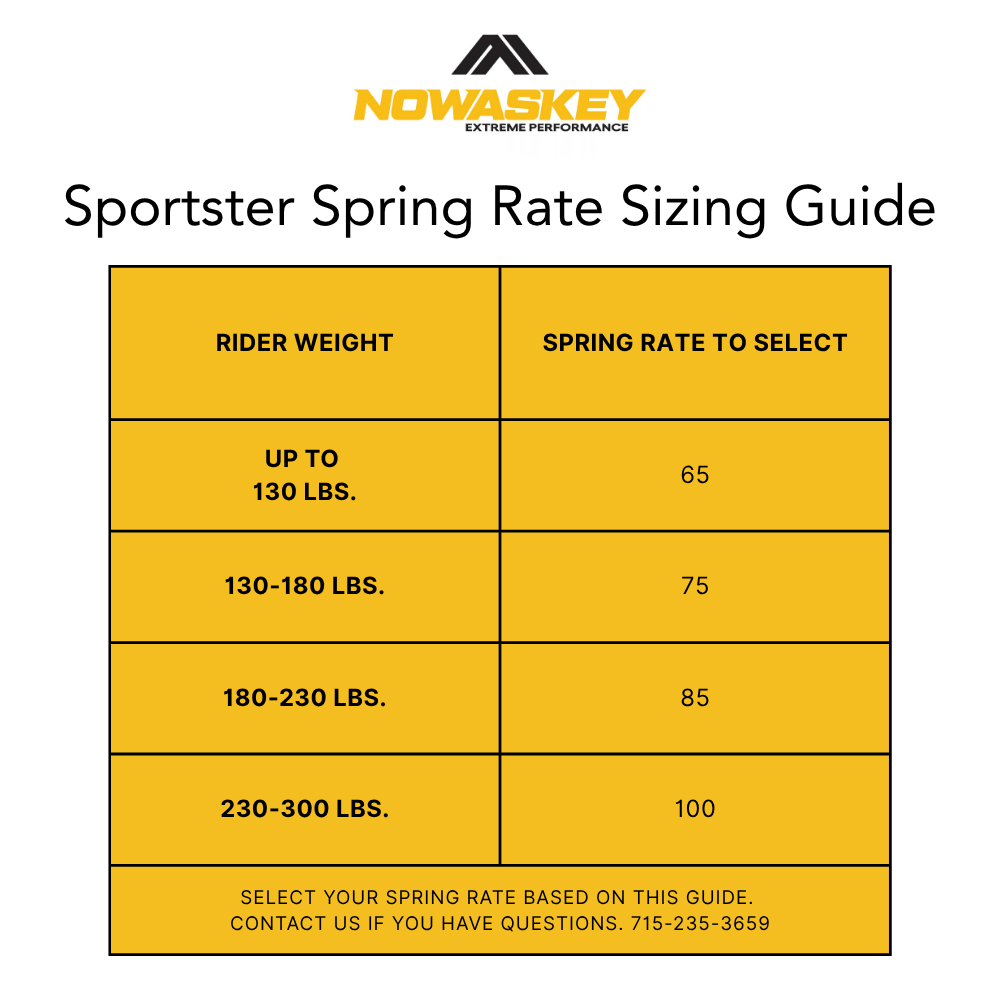

Select a Spring Rate-Refer to the Spring Rate Sizing Guide in the product images.
- Free shipping on this part
- Lifetime warranty on Nowaskey parts
- Returns and exchanges: see our policy
- Questions? Call 715-235-3659 or chat with us on the site.
Description
14" Remote Reservoir Harley Davidson Sportster Shocks
**INSTOCK Ready to SHIP today**
Compatible with 1991-2024 Sportster Models
Our 14 inch Remote Reservoir suspensions are designed and built to exacting specifications. All of our products are hand-assembled in the USA with American-made materials. Each shock is individually dyno-tuned and mated to its twin for consistent and exceptional performance.
FEATURES
- Remote reservoir cylinder offers an independent 6-position compression adjustment with a larger nitrogen volume.
- Steel-braided Teflon® lines utilizing O-ring connection points for 360° of rotation.
- Proprietary tuned primary piston and valving to allow a more aggressive riding style.
- Proprietary tuned compression adjuster for a broader range of adjustment on the reservoir.
- 1" Teflon® lined wide misalignment spherical joints to compensate for misalignment on OEM frame mounts.
- Rebound adjustable eyelet O-ring sealed with 80 clicks for ultra-fine tuning.
- Custom-designed lightweight spring hardware and the ability to adjust the preload by hand.
- (4) spring rates available 65lbs/in, 75lbs/in, 85lbs/in, 100lbs/in (powder coated).
- Maxima 3.0 WT Full Synthetic Fluid.
- Preload setting on both shocks allows suspension adjustment based on rider, passenger, and gear weight for optimal performance.
- Progressive rate springs stiffen quickly for improved handling when elevating to high-performance riding.
- Exceptional shock length adjustment of +8/-2 mm.
- High-pressure nitrogen gas-charged design resists shock fading with low-friction shaft/seal head design for smooth performance.
- Remote reservoir rear shocks are fully serviceable and rebuildable.
- Limited Lifetime Warranty. See the full Warranty
- Made in the USA.
See our complete line of Sportster Performance Products.
Fitment
Fits Harley-Davidson Sportster Models - 1991 to 2024
Not sure it fits your bike? Call 715-235-3659 or chat with us on the site and a tech can confirm it with you.
Specifications & Installation
| Brand | Nowaskey |
|---|---|
| Product type | Suspension |
| Spring Rate | 65 lbs/in, 75 lbs/in, 85 lbs/in, 100lbs/in |
Videos
Want it installed right? Book the Nowaskey Speed Shop or call 715-235-3659.
Questions Riders Ask
Will this fit my bike?
Fits Harley-Davidson Sportster Models - 1991 to 2024.
Save your bike with Shop by Bike and we check it for you. Not sure? Call or chat with us on the site and a tech can confirm it with you.
Which spring rate do I need?
It depends on your bike, your weight and whether you ride two-up. . Call 715-235-3659 or chat with us with your weight and how you ride, and a tech will recommend the right spring.
What do riders buy with this?
Is it covered by a warranty?
Yes. Nowaskey-brand parts carry our lifetime warranty. Register your warranty after it arrives.
Can I install it myself?
Most riders with basic tools and a service manual can. The Specifications & Installation tab lists difficulty, time and guides where we have them. Prefer a pro install? Book a Speed Shop slot and call to check current availability.
How do I set sag, preload and ride height?
Set rider sag first; preload adjustment is how sag is set. Then fine-tune damping. Ride height is set by the shock length you buy. If you run out of adjustment (preload maxed, or compression and rebound at their limits), the spring rate is probably wrong for your weight and riding style. Call us with your rider weight and setup and we will recommend the right spring.
Still have a question? Call 715-235-3659 or chat with us on the site.
